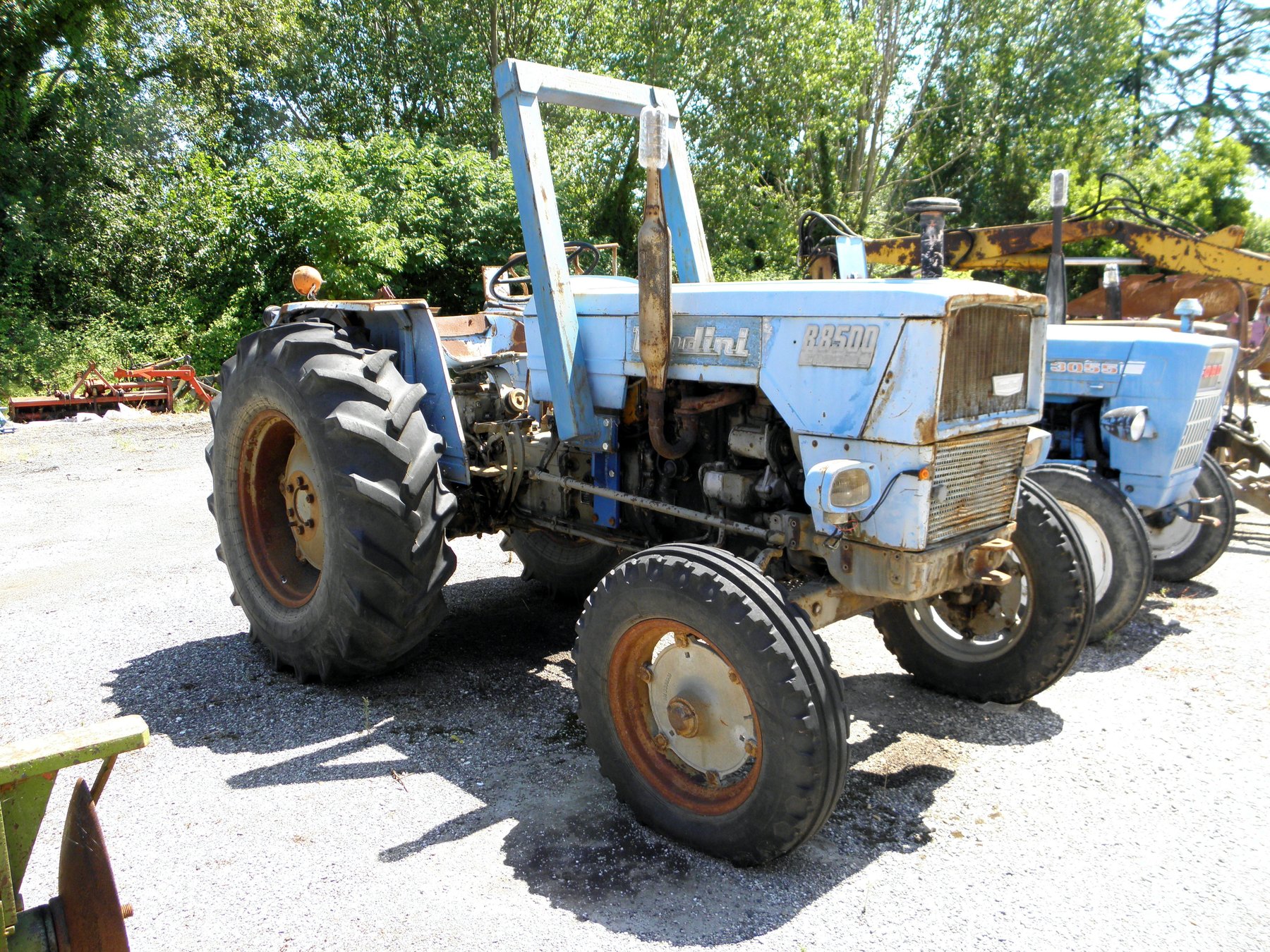

Landini R-5000 Special (TL 14 N/A)

Built: 1968–1974 · Series: R-Baureihe

More machines from model year 1968

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The R series from Landini includes the R-5000 Special (TL 14 N/A). Production: 1968–1974. The engine delivers 52 hp (38.2 kW), has 3 cylinders, with a displacement of 2,498 cm³. Rated speed is 2,250 rpm. The machine is 3,220 mm long, 1,800 mm wide and 1,560 mm high. The unladen weight is 1,890 kg. The wheelbase measures 1,930 mm. Ground clearance is 440 mm. Top speed is 30 km/h. Transmission: 12 V/4 R. The engine is water-cooled. Tyres: front 6.00-16 ASF (A: 7.50-20 AS), rear 14.9/13-24 AS (A: 12.4-32 AS). The fuel is diesel. The bore measures 91.44 mm. The stroke is 127 mm. The compression ratio is 18.5:1. Construction: unit construction (no separate frame). The R-Baureihe series covers 3 models. Rated output within it ranges from 52 to 76 hp; the R-5000 Special (TL 14 N/A) sits at the bottom of that range with 52 hp. Its immediate neighbours are the R 8000 Special (TL-15 N) above it with 64 hp. Unladen weight within it ranges from 1,890 to 2,720 kg; here the R-5000 Special (TL 14 N/A) sits at the bottom of that range with 1,890 kg. 222 Landini models across 35 series are on record.

Landini R series – diesel tractors from Fabbrico in Special and Super-Special trim: three- and four-cylinders, 38 to 56 kW, part of the Argo Group since 1994

Landini has built tractors in Fabbrico near Reggio Emilia since 1884 and has belonged to the Italian Argo Group since 1994, which alongside Landini also runs McCormick and Valpadana. The R name goes back to the 1950s at Landini and was later reused for further ranges. The versions listed here, the R 8000 Special, R 8000 Super-Special and R-5000 Special, are three- and four-cylinder diesels, with Special and Super-Special marking equipment levels that differ mainly in power and fittings.

Read on 3 more paragraphs

The register lists here 3 versions with 38.2 to 55.9 kW from three- to four-cylinders of 2,498 to 4,067 cm³ displacement. Unladen weights range from 1,890 to 2,720 kg, lengths from 3,220 to 3,680 mm, widths from 1,800 to 1,900 mm and heights from 1,560 to 1,760 mm at rated speeds of 2,100 to 2,250 rpm.

As mid-power standard farm tractors the R models competed with the contemporaneous Fiat and Same ranges, with which they shared technology and suppliers; on the Italian and eastern European markets Landini was in this class one of the familiar brands for the family farm.

On a used example, clutch and mechanical gearbox condition, rust on mudguards and bonnet, tightness of hydraulics and PTO, and smooth engine running under full load count; parts for the three- and four-cylinder diesels run through the Landini and Argo network and independent farm-machinery dealers.

Sources: SpecCodex register, model data: Landini R-Baureihe, Landini (Argo Group, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	52 hp (38.2 kW)correct
Rated speed	2,250 rpmcorrect
Cylinders	3correct
Displacement	2,498 cm³correct
Bore	91.44 mmcorrect
Stroke	127 mmcorrect
Compression ratio	18.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,220 mmcorrect
Width	1,800 mmcorrect
Height	1,560 mmcorrect
Wheelbase	1,930 mmcorrect
Ground clearance	440 mmcorrect
Unladen weight	1,890 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	12 V/4 Rcorrect
Front tyres	6.00-16 ASF (A: 7.50-20 AS)correct
Rear tyres	14.9/13-24 AS (A: 12.4-32 AS)correct
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 20.2 kW/t (38 kW / 1.9 t)

Power class: Universal (40–100 hp)

Stronger than 36% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Landini R-5000 Special (TL 14 N/A) have?

The Landini R-5000 Special (TL 14 N/A) delivers 52 hp.

How much does the Landini R-5000 Special (TL 14 N/A) weigh?

The unladen weight is 1,890 kg.

What engine does the Landini R-5000 Special (TL 14 N/A) have?

3 cylinders, 2,498 cm³ displacement, Diesel.

How fast does the Landini R-5000 Special (TL 14 N/A) go?

Top speed is 30 km/h.

What are the dimensions of the Landini R-5000 Special (TL 14 N/A)?

3,220 mm × 1,800 mm × 1,560 mm.

When was the Landini R-5000 Special (TL 14 N/A) built?

Production years: 1968–1974.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
