Start › Tractors › Landini Massey Ferguson › 104 series › MF 174 (A)

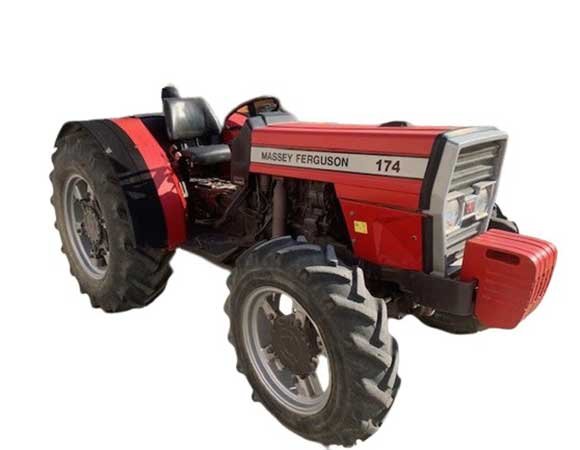

Landini Massey Ferguson MF 174 (A)

Built: 1973–1983 · Series: 104er-Reihe

More machines from model year 1973

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Landini Massey Ferguson MF 174 (A) belongs to the 104er-Reihe series. Production: 1973–1983. The engine delivers 61 hp (44.9 kW), has 4 cylinders, with a displacement of 3,867 cm³. Rated speed is 2,200 rpm. The machine is 3,620 mm long and 1,420 mm high. The unladen weight is 2,210 kg. The wheelbase measures 2,210 mm. Top speed is 25 km/h. Transmission: 12V/4R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 11.2-24 AS), rear 12.4-36 AS. The fuel is diesel. The bore measures 98.42 mm. The stroke is 127 mm. Construction: unit construction (no separate frame). Injection pressure is 175 bar. The 104er-Reihe series covers 4 models. Rated output within it ranges from 50 to 75 hp; the MF 174 (A) sits in the middle of that range with 61 hp. Its immediate neighbours are the MF 154 (A) below it with 50 hp and the MF 184 (A) above it with 68 hp. Unladen weight within it ranges from 2,030 to 2,700 kg; here the MF 174 (A) sits in the lower part of that range with 2,210 kg. 10 Landini Massey Ferguson models across 3 series are on record.

Landini Massey Ferguson 104 Series – compact tractors built in Fabbrico for German MF distribution, MF 154 to MF 194, three- and four-cylinder engines from 2.5 to 4.1 litres, 37 to 55 kW

This page brings together the models MF 154, MF 174, MF 184 and MF 194, which Landini built at its Fabbrico plant and which were offered in Germany through the Massey Ferguson distribution network. All four models run three- or four-cylinder diesel engines between 2.5 and 4.1 litres displacement. Landini has belonged to the SAME Group since the 1960s and, under such distribution agreements, also supplied identically built tractors under other brand names.

Read on 3 more paragraphs

The register lists here 4 versions with 37.3 to 55.2 kW rated output at 2,200 to 2,250 rpm. Unladen weights range from 2,030 to 2,700 kg, length from 3,520 to 3,780 mm, height from 1,420 to 2,320 mm.

Through the partnership with Landini, Massey Ferguson broadened its German line-up in the mid-power segment with compact field tractors, sold alongside its own MF series built in Britain and France. For workshops and buyers, the Italian origin was often recognisable only from the chassis and certain components, while externally the tractors appeared as regular Massey Ferguson models.

When buying used, check the hours and service history of the three- or four-cylinder, the condition of clutch and gearbox, the tightness of the hydraulics, and rust on the fenders and bonnet; parts are supplied through both Landini and Massey Ferguson dealers. as well as the brakes, steering and front-axle bearings.

Sources: SpecCodex register, model data: Landini Massey Ferguson 104er-Reihe, Landini (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	61 hp (44.9 kW)correct
Rated speed	2,200 rpmcorrect
Cylinders	4correct
Displacement	3,867 cm³correct
Bore	98.42 mmcorrect
Stroke	127 mmcorrect
Injection pressure	175 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,620 mmcorrect
Height	1,420 mmcorrect
Wheelbase	2,210 mmcorrect
Unladen weight	2,210 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12V/4Rcorrect
Front tyres	7.50-16 ASF (A: 11.2-24 AS)correct
Rear tyres	12.4-36 AScorrect
Top speed	25 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 20.3 kW/t (45 kW / 2.2 t)

Power class: Universal (40–100 hp)

Stronger than 42% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Landini Massey Ferguson MF 174 (A) have?

The Landini Massey Ferguson MF 174 (A) delivers 61 hp.

How much does the Landini Massey Ferguson MF 174 (A) weigh?

The unladen weight is 2,210 kg.

What engine does the Landini Massey Ferguson MF 174 (A) have?

4 cylinders, 3,867 cm³ displacement, Diesel.

How fast does the Landini Massey Ferguson MF 174 (A) go?

Top speed is 25 km/h.

What are the dimensions of the Landini Massey Ferguson MF 174 (A)?

3,620 mm × 1,420 mm.

When was the Landini Massey Ferguson MF 174 (A) built?

Production years: 1973–1983.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
