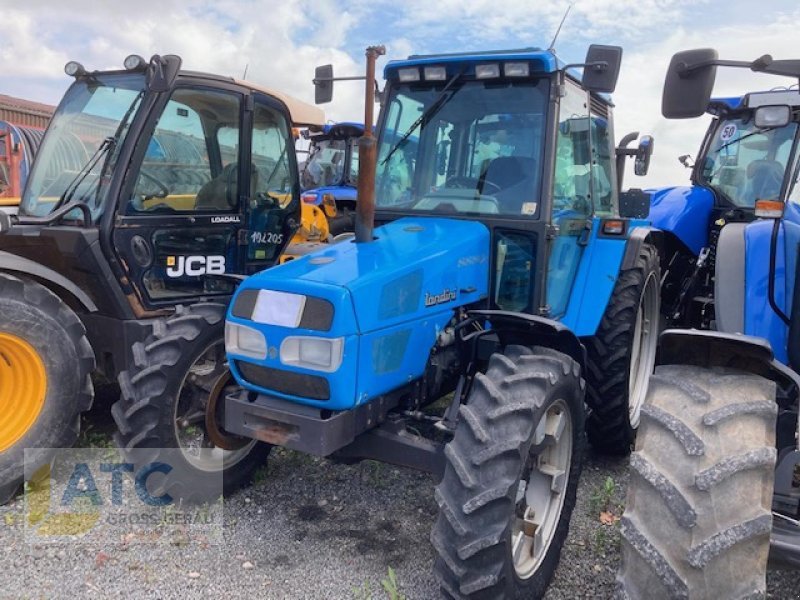

Landini R-8880 (DT) – specifications
Built: 1987–2000 · Series: 80 er-Baureihe
The Landini R-8880 (DT) is a model in the 80er series. Production: 1987–2000. The engine delivers 80 hp (58.8 kW), has 4 cylinders, with a displacement of 4,062 cm³. Torque is 270 Nm. Rated speed is 2,200 rpm. The machine is 3,950 mm long, 2,090 mm wide and 2,680 mm high. The unladen weight is 3,520 kg. The wheelbase measures 2,440 mm. Ground clearance is 470 mm. Top speed is 30 km/h. Transmission: 12 V/4 R and 24 V/12 R. The engine is water-cooled. Tyres: front 7.50-20 ASF (DT: 380/70 R 24 AS), rear 470/70 R 34 AS. The fuel is diesel. The bore measures 100.69 mm. The stroke is 127 mm. The compression ratio is 16.1:1. Construction: unit construction (no separate frame). The 80 er-Baureihe series covers 3 models. Rated output within it ranges from 71 to 93 hp; the R-8880 (DT) sits in the middle of that range with 80 hp. Its immediate neighbours are the R-7880 (DT) below it with 71 hp and the R-9880 (DT) TL-45 N/A (TL-45 DT/A) above it with 93 hp. Unladen weight within it ranges from 3,340 to 3,580 kg; here the R-8880 (DT) sits in the upper part of that range with 3,520 kg. 222 Landini models across 35 series are on record.
Data for the version built 1987–2000 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Landini 80 series – the four-wheel-drive R-7880, R-8880 and R-9880 (DT) from Fabbrico: four-cylinder diesels of 3.9 to 4.1 litres, 52 to 68 kW, 2,200 rpm
The 80 series covers at Landini in Fabbrico the types R-7880, R-8880 and R-9880, each with the DT suffix for Doppia Trazione, the standard four-wheel drive that Italian makers such as Landini, Fiat and Same all mark the same way. The three four-cylinder diesels differ mainly in displacement and power step within the same frame size.
Read on 3 more paragraphs
The register lists here 3 versions with 52.2 to 68.4 kW from four-cylinders of 3,863 to 4,062 cm³ displacement and torque of 249 to 270 Nm at a uniform rated speed of 2,200 rpm. Unladen weights lie between 3,340 and 3,580 kg, widths between 2,040 and 2,090 mm and heights between 2,640 and 2,725 mm at a length of 3,950 mm.
The series held Landini's mid-class for mixed arable and grassland farms, with four-wheel drive as standard for traction on wet or sloping ground; it competed directly with comparable four-cylinder 4wd tractors from Fiat, Same and Ford.
On a used example, front-axle and four-wheel-drive clutch condition, hydraulic tightness, wear of the clutch disc and shuttle transmission, and rust on cab and mudguards count; parts for the four-cylinder diesels and the four-wheel-drive components are available through the Landini and Argo network.
Sources: SpecCodex register, model data: Landini 80er-Baureihe, Landini (Argo Group, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 80 hp (58.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 270 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,062 cm³correct |
| Bore | 100.69 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 16.1correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,950 mmcorrect |
|---|---|
| Width | 2,090 mmcorrect |
| Height | 2,680 mmcorrect |
| Wheelbase | 2,440 mmcorrect |
| Ground clearance | 470 mmcorrect |
| Unladen weight | 3,520 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 R and 24 V/12 Rcorrect |
| Front tyres | 7.50-20 ASF (DT: 380/70 R 24 AS)correct |
| Rear tyres | 470/70 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.7 kW/t (59 kW / 3.5 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
