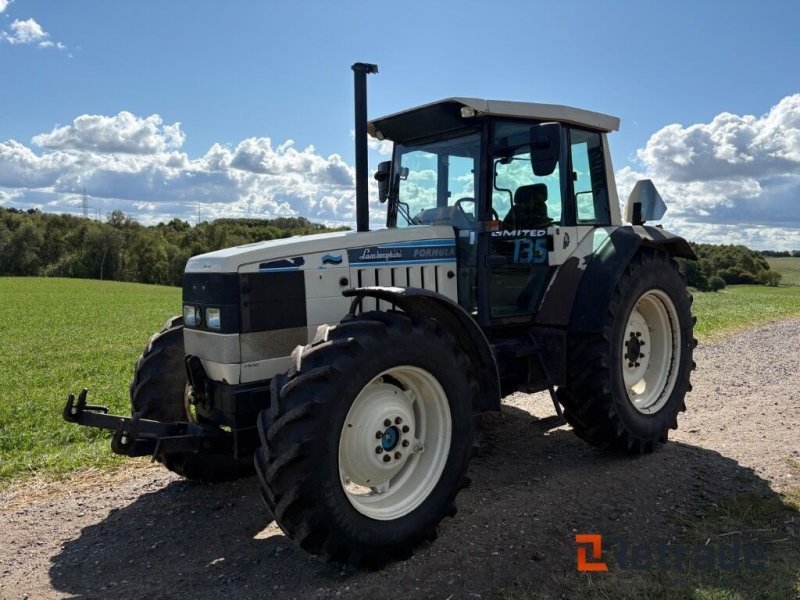

Lamborghini 135
Built: 1998–2004 · Series: Champion-Baureihe
More machines from model year 1998
Lamborghini 135 (Champion series) – water-cooled six-cylinder diesel producing 135 hp at 2,350 rpm from 6,000 cc, with 590 Nm of torque, a heavy field tractor from Lamborghini Trattori
Lamborghini Trattori was an Italian tractor manufacturer founded by Ferruccio Lamborghini before he became known for sports cars; the brand has belonged to the SAME group (today SDF, SAME Deutz-Fahr) since the 1970s. The 135 from the Champion series is a powerful six-cylinder tractor from around the turn of the millennium, built for larger farming operations.
Read on 3 more paragraphs
The 135 is powered by a water-cooled six-cylinder diesel engine of 6,000 cc, producing 135 hp (99.3 kW) at 2,350 rpm with 590 Nm of torque; the cooling system combines water and oil cooling. At a kerb weight of 6,700 kg it measures 4,320 mm in length, 2,450 mm in width and 2,880 mm in height, on a 2,750 mm wheelbase; top speed is 40 km/h.
A six-cylinder engine of six litres with torque close to 600 Nm belongs in the class of heavy field tractors for ploughing, cultivating and drilling on professional arable farms, as well as for heavy haulage with large trailers. The combined water-and-oil cooling keeps engine and transmission oil within a narrower temperature range than water cooling alone, even under sustained load.
When buying a used heavy six-cylinder Lamborghini of this kind, the cooling system and oil cooler are among the first things to check, since a clogged or leaking oil cooler quickly causes overheating under sustained load. The gearbox, PTO and hydraulic pump should be tested under load, and the tyres checked for even wear given this weight. Parts for an engine of this size are available through dealers specialising in heavy Lamborghini tractors.
Sources: SpecCodex-Register: Kennwerte des Modells Lamborghini 135
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 135 hp (99.3 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 590 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,320 mmcorrect |
|---|---|
| Width | 2,450 mmcorrect |
| Height | 2,880 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 520 mmcorrect |
| Unladen weight | 6,700 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/18 R and 27 V/27 Rcorrect |
| Front tyres | 480/70 R 30 AScorrect |
| Rear tyres | 580/70 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 380 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 14.8 kW/t (99 kW / 6.7 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lamborghini 135 have?
The Lamborghini 135 delivers 135 hp.
How much does the Lamborghini 135 weigh?
The unladen weight is 6,700 kg.
What engine does the Lamborghini 135 have?
6 cylinders, 6,000 cm³ displacement, Diesel.
How fast does the Lamborghini 135 go?
Top speed is 40 km/h.
What are the dimensions of the Lamborghini 135?
4,320 mm × 2,450 mm × 2,880 mm.
When was the Lamborghini 135 built?
Production years: 1998–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
