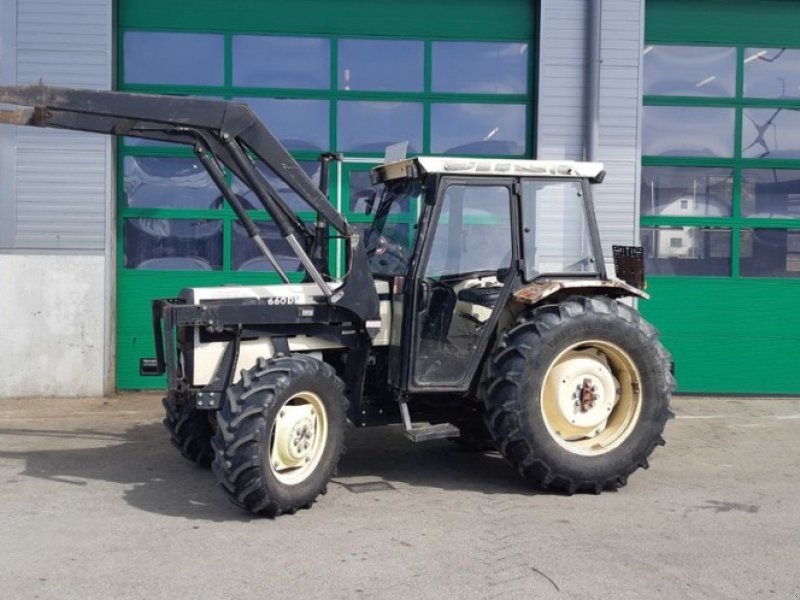

Lamborghini AGILE 660 S/DT

Built: 1996–2003 · Series: AGILE-Baureihe

More machines from model year 1996

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The AGILE series from Lamborghini includes the AGILE 660 S/DT. Production: 1996–2003. The engine delivers 60 hp (44.1 kW), has 3 cylinders, with a displacement of 3,000 cm³. Rated speed is 2,350 rpm. The machine is 2,970 mm long, 1,290 mm wide and 2,110 mm high. The unladen weight is 2,420 kg. The wheelbase measures 1,926 mm. Ground clearance is 230 mm. Top speed is 30 km/h. Transmission: 16 V/8 R, 20 V/10 R and 30 V/15 R. The engine is water-cooled. Tyres: front 240/70 R 16 AS, rear 380/70 R 20 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 17:1. Construction: unit construction (no separate frame). The AGILE-Baureihe series covers 4 models. Rated output within it ranges from 60 to 88 hp; the AGILE 660 S/DT sits at the bottom of that range with 60 hp. Its immediate neighbours are the AGILE 770 S (DT) above it with 70 hp. Unladen weight within it ranges from 2,220 to 2,740 kg; here the AGILE 660 S/DT sits in the lower part of that range with 2,420 kg. 136 Lamborghini models across 28 series are on record.

Lamborghini AGILE Series – compact all-purpose tractors from Pieve di Cento, AGILE 660 to 990, three- and four-cylinder engines from 3.0 to 4.0 litres, 44 to 65 kW at 2,350 rpm

Lamborghini Trattori built the AGILE Series at its Pieve di Cento plant as compact all-purpose tractors; the type numbers 660, 770, 880 and 990 denote four power steps, each in S and DT versions for two- and four-wheel drive. The smaller models run three-cylinder engines, the larger ones four-cylinders, all at a rated speed of 2,350 rpm. Ferruccio Lamborghini handed the tractor division to SAME in 1972, which carried on production at Pieve di Cento and still manufactures Lamborghini tractors there today.

Read on 3 more paragraphs

The register lists here 4 versions with 44.1 to 64.7 kW from three- and four-cylinder engines displacing 3,000 to 4,000 cc. Unladen weights range from 2,220 to 2,740 kg. Width and height are the same across all models at 1,290 mm and 2,110 mm, length falls between 2,970 and 3,100 mm.

With more compact dimensions than the F-PLUS Series, the AGILE Series targeted operations with tight yard and barn conditions as well as orchard and vineyard work, where manoeuvrability mattered more than raw drawbar pull. Like the sister brands of the SDF Group, Lamborghini uses shared engines, transmissions and axles, while keeping its own look for the cab and body.

When buying used, check the hours and service history of the three- or four-cylinder, the condition of clutch and gearbox, the tightness of the hydraulics, and wear on the steering and front axle on DT versions. Parts run through the SDF Group dealer network. as well as the brakes and the suspension of the compact body.

Sources: SpecCodex register, model data: Lamborghini AGILE-Baureihe, Lamborghini Trattori (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	60 hp (44.1 kW)correct
Rated speed	2,350 rpmcorrect
Cylinders	3correct
Displacement	3,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	2,970 mmcorrect
Width	1,290 mmcorrect
Height	2,110 mmcorrect
Wheelbase	1,926 mmcorrect
Ground clearance	230 mmcorrect
Unladen weight	2,420 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16 V/8 R, 20 V/10 R and 30 V/15 Rcorrect
Front tyres	240/70 R 16 AScorrect
Rear tyres	380/70 R 20 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 18.2 kW/t (44 kW / 2.4 t)

Power class: Universal (40–100 hp)

Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Lamborghini AGILE 660 S/DT have?

The Lamborghini AGILE 660 S/DT delivers 60 hp.

How much does the Lamborghini AGILE 660 S/DT weigh?

The unladen weight is 2,420 kg.

What engine does the Lamborghini AGILE 660 S/DT have?

3 cylinders, 3,000 cm³ displacement, Diesel.

How fast does the Lamborghini AGILE 660 S/DT go?

Top speed is 30 km/h.

What are the dimensions of the Lamborghini AGILE 660 S/DT?

2,970 mm × 1,290 mm × 2,110 mm.

When was the Lamborghini AGILE 660 S/DT built?

Production years: 1996–2003.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
