Kubota M9540
Built: 2003-2016 · Series: Other models
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

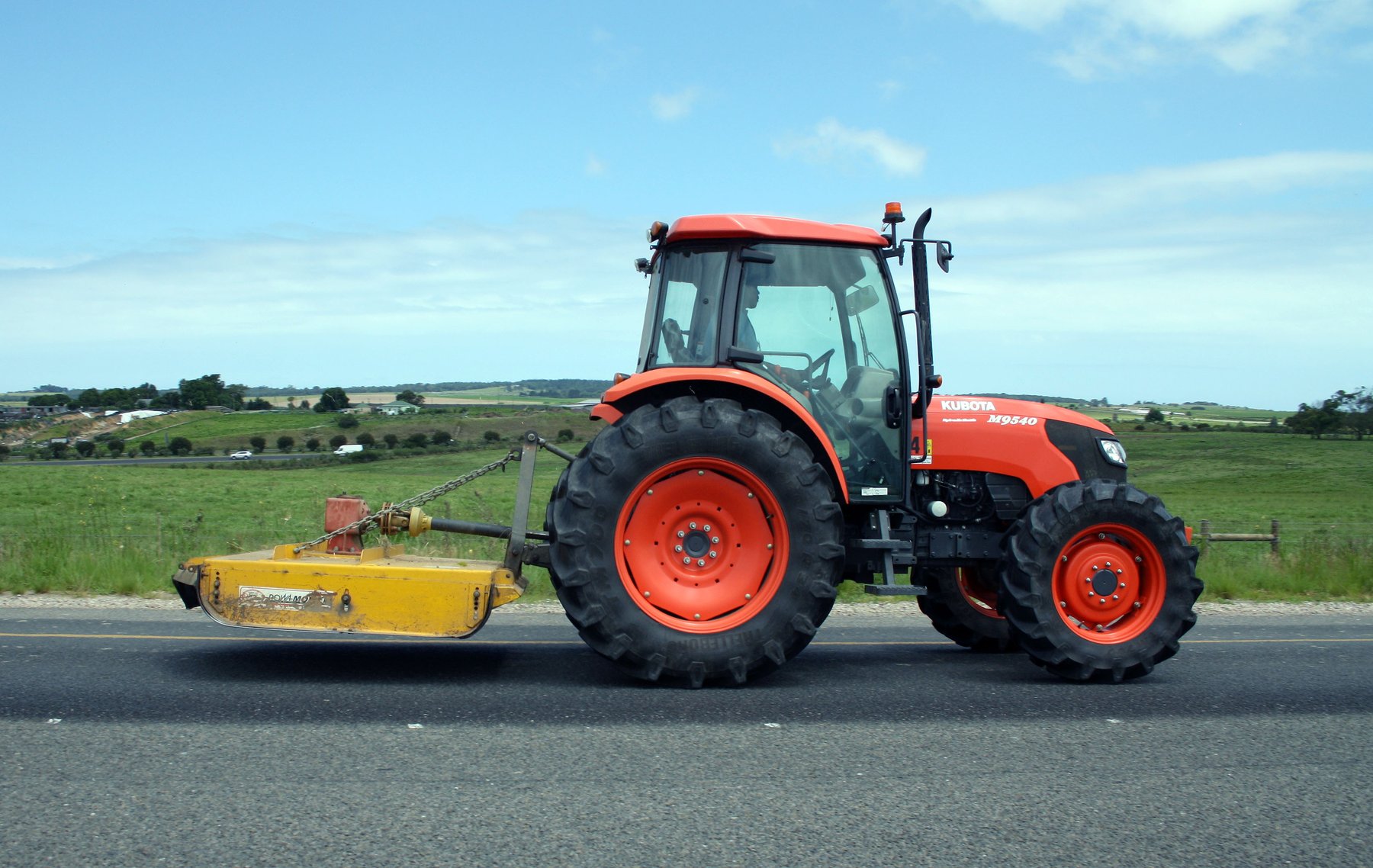

The Kubota M9540 is a tractor built in 2003-2016. Under the bonnet works a four-cylinder engine displacing 3.8 litres, producing 74 kW.
It runs with MFWD. Dimensions are 3.96 m by 1.95 m. Wheelbase is 2.25 m.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 8.9 to 129 kW; with 74 kW, the M9540 sits at the top. Directly alongside are the M954 with 72 kW below and the M108S with 83.6 kW above.
Kubota – other models: the collective page of tractors outside the named ranges, from the B and L compacts (B7100, L3350) through the M range to the M7 and the smallest tractors of the 1970s, 9 to 129 kW, Kubota engines of 0.5 to 6.1 litres
This page gathers the Kubota tractors the register could not assign to a named range – the Osaka group that began in 1890 as a foundry, built its first tractor in 1960 and came to North America and Europe with compact tractors in the 1970s, where it dominates the class under 50 hp to this day. The type logic: the letter gives the range – B for the compacts under 30 hp, L for the mid-range up to 60 hp, M for the full-size tractors above, BX and GR for lawn tractors – the number roughly the hp class (B7100 about 16 hp, L3350 about 33 hp, M9540 about 95 hp), D and DT four-wheel drive, HST the hydrostatic transmission, GL, GX and X equipment lines; since 2014 Kubota has also built tractors up to 170 hp with the M7 range from the Bierne plant in France. The engines are throughout Kubota's own diesels – the D and V series of 0.5 to 6.1 litres, which Bobcat, Manitou and many other makers also source.
Read on 3 more paragraphs
The register lists here 657 versions with 8.9 to 129 kW from two- to five-cylinders of 500 to 6,129 cm³, PTO outputs from 14 to 140 hp, lift capacities from 300 to 5,350 kg, unladen weights from 440 to 7,350 kg, lengths from 1,800 to 4,940 mm and widths from 900 to 2,795 mm.
Kubota is the world's largest maker of compact tractors and market leader in Japan, North America and Southeast Asia; in Europe the brand gained a foothold through municipalities, horticulture and hobby farms and is growing into agriculture with the M range.
On used tractors, operating hours, engine condition (Kubota diesels are regarded as long-lived), hydrostat or clutch, four-wheel-drive clutch, front loader and mower PTO, on younger models the exhaust aftertreatment count; parts run through the dense Kubota network.
Sources: Kennwerte der Modelle Kubota (weitere Modelle), Kubota Europe (Hersteller)
Technical data
Engine
| Engine make | Kubotacorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 99 hp (74 kW)correct |
| Cylinders | 4correct |
| Displacement | 3,769 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,960 mmcorrect |
|---|---|
| Width | 1,950 mmcorrect |
| Wheelbase | 2,250 mmcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Wheels | 4correct |
Origin and approval
| Plant | Japancorrect |
|---|
Frequently asked questions
How much power does the Kubota M9540 have?
The Kubota M9540 delivers 99 hp.
What engine does the Kubota M9540 have?
4 cylinders, 3,769 cm³ displacement, Diesel.
What are the dimensions of the Kubota M9540?
3,960 mm × 1,950 mm.
When was the Kubota M9540 built?
Production years: 2003-2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
