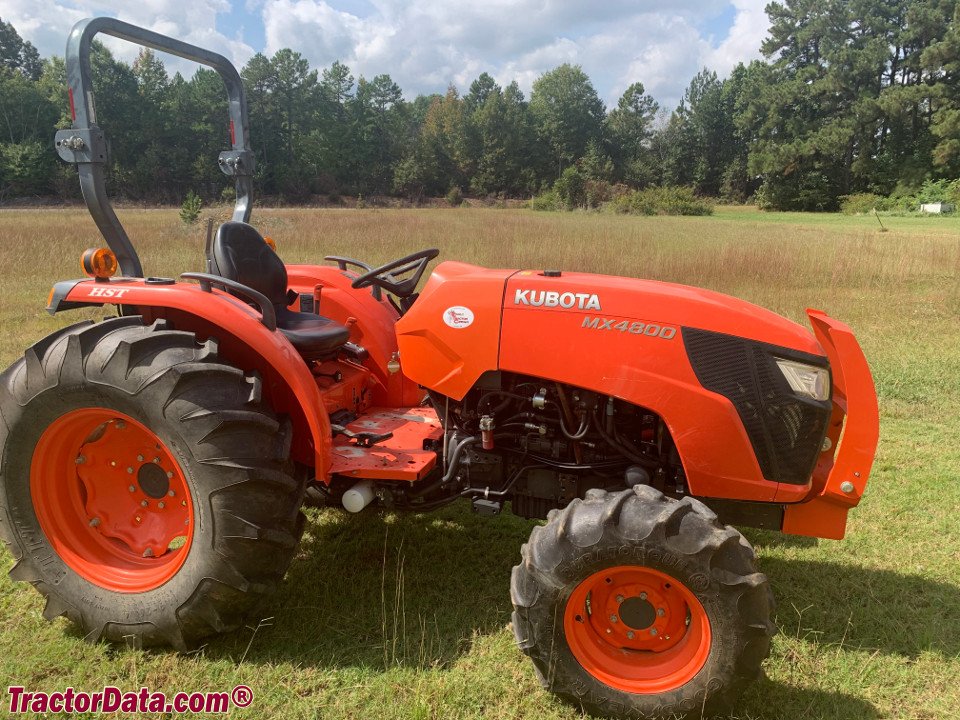

Kubota MX4800DTRC GEAR 2WD 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kubota – other models: the collective page of tractors outside the named ranges, from the B and L compacts (B7100, L3350) through the M range to the M7 and the smallest tractors of the 1970s, 9 to 129 kW
This page gathers the Kubota tractors the register could not assign to a named range – the Osaka group that began in 1890 as a foundry, built its first tractor in 1960 and came to North America and Europe with compact tractors in the 1970s, where it dominates the class under 50 hp to this day. The type logic: the letter gives the range – B for the compacts under 30 hp, L for the mid-range up to 60 hp, M for the full-size tractors above, BX and GR for lawn tractors – the number roughly the hp class (B7100 about 16 hp, L3350 about 33 hp, M9540 about 95 hp), D and DT four-wheel drive, HST the hydrostatic transmission, GL, GX and X equipment lines; since 2014 Kubota has also built tractors up to 170 hp with the M7 range from the Bierne plant in France. The engines are throughout Kubota's own diesels – the D and V series of 0.5 to 6.1 litres, which Bobcat, Manitou and many other makers also source.
Read on 3 more paragraphs
The register lists here 657 versions with 8.9 to 129 kW from two- to five-cylinders of 500 to 6,129 cm³, PTO outputs from 14 to 140 hp, lift capacities from 300 to 5,350 kg, unladen weights from 440 to 7,350 kg, lengths from 1,800 to 4,940 mm and widths from 900 to 2,795 mm.
Kubota is the world's largest maker of compact tractors and market leader in Japan, North America and Southeast Asia; in Europe the brand gained a foothold through municipalities, horticulture and hobby farms and is growing into agriculture with the M range.
On used tractors, operating hours, engine condition (Kubota diesels are regarded as long-lived), hydrostat or clutch, four-wheel-drive clutch, front loader and mower PTO, on younger models the exhaust aftertreatment count; parts run through the dense Kubota network.
Sources: SpecCodex register, model data: Kubota (weitere Modelle), Kubota Europe (manufacturer)
Technical data
Engine
| Engine model | V2403-CR-E4correct |
|---|---|
| Power | 35 kWcorrect |
| Rated speed | 2,700 rpmcorrect |
| Torque | 157.8 Nmcorrect |
| Cylinders | 4correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Unladen weight | 1,574 kgcorrect |
|---|
Working data
| Lifting capacity | 1,300 kgcorrect |
|---|---|
| Hydraulic oil capacity | 36 lcorrect |
| Fuel tank capacity | 51.1 lcorrect |
Other data
| PTO output | 40 hpcorrect |
|---|---|
| System voltage | 12 Vcorrect |
More machines with this engine (KUBOTA V2403-CR-E4, 4)
Where this model stands
Power-to-weight ratio: 22.2 kW/t (35 kW / 1.6 t)
Power class: Universal (40–100 hp)
Stronger than 32% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota MX4800DTRC GEAR 2WD have?
The Kubota MX4800DTRC GEAR 2WD delivers 35 kW.
How much does the Kubota MX4800DTRC GEAR 2WD weigh?
The unladen weight is 1,574 kg.
What engine does the Kubota MX4800DTRC GEAR 2WD have?
4 cylinders.
What is the PTO output of the Kubota MX4800DTRC GEAR 2WD?
PTO output is 40 hp.
How much does the rear linkage of the Kubota MX4800DTRC GEAR 2WD lift?
The rear linkage lifts 1,300 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
