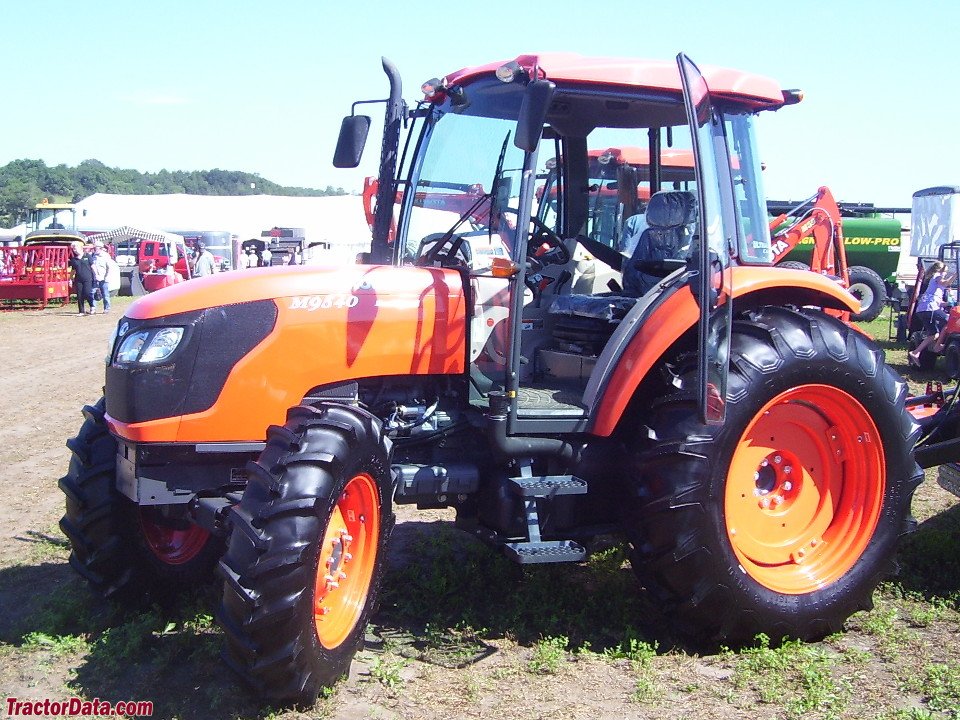

Kubota M9540 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota M9540 is a tractor from the Kubota 4WD Tractor series. Power comes from a four-cylinder engine; from 3.8 litres it draws 70.5 kW. Rated speed is 2,600 rpm.
At 34 km/h, that is as fast as it goes. Empty, it weighs 2,500 kg.
Within the range, rated power spans from 13.4 to 93.2 kW; with 70.5 kW, the M9540 sits at the top. Directly alongside are the M9000 with 68.7 kW below and the M95SDSC with 70.8 kW above.
Technical data
Engine
| Engine model | V3800TIE2correct |
|---|---|
| Power | 70.5 kWcorrect |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,769 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Length | 3,760 mmcorrect |
|---|---|
| Ground clearance | 465.1correct |
| Unladen weight | 2,500 kgcorrect |
Drivetrain and chassis
| Gearbox type | synchromesh gearbox shiftcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 8correct |
| Tyre size | front 12.4-24 rear 18.4-30correct |
| Top speed | 33.6 km/hcorrect |
| Turning radius | 4,110 mmcorrect |
| System voltage | 12 Vcorrect |
Working data
| Lifting capacity | 2,100 kgcorrect |
|---|---|
| Pump flow | 64.4 l/mincorrect |
| Fuel tank capacity | 110.2 lcorrect |
| PTO output | 84 hpcorrect |
Other data
| Cab height | 2,572.5correct |
|---|
More machines with this engine (V3800TIE2, 4)
Where this model stands
Power-to-weight ratio: 28.2 kW/t (70 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 65% of the tractors in the register — out of 14,914 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M9540 have?
The Kubota M9540 delivers 70.5 kW.
How much does the Kubota M9540 weigh?
The unladen weight is 2,500 kg.
What engine does the Kubota M9540 have?
4 cylinders, 3,769 cm³ displacement.
How fast does the Kubota M9540 go?
Top speed is 33.6 km/h.
What is the PTO output of the Kubota M9540?
PTO output is 84 hp.
How much does the rear linkage of the Kubota M9540 lift?
The rear linkage lifts 2,100 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
