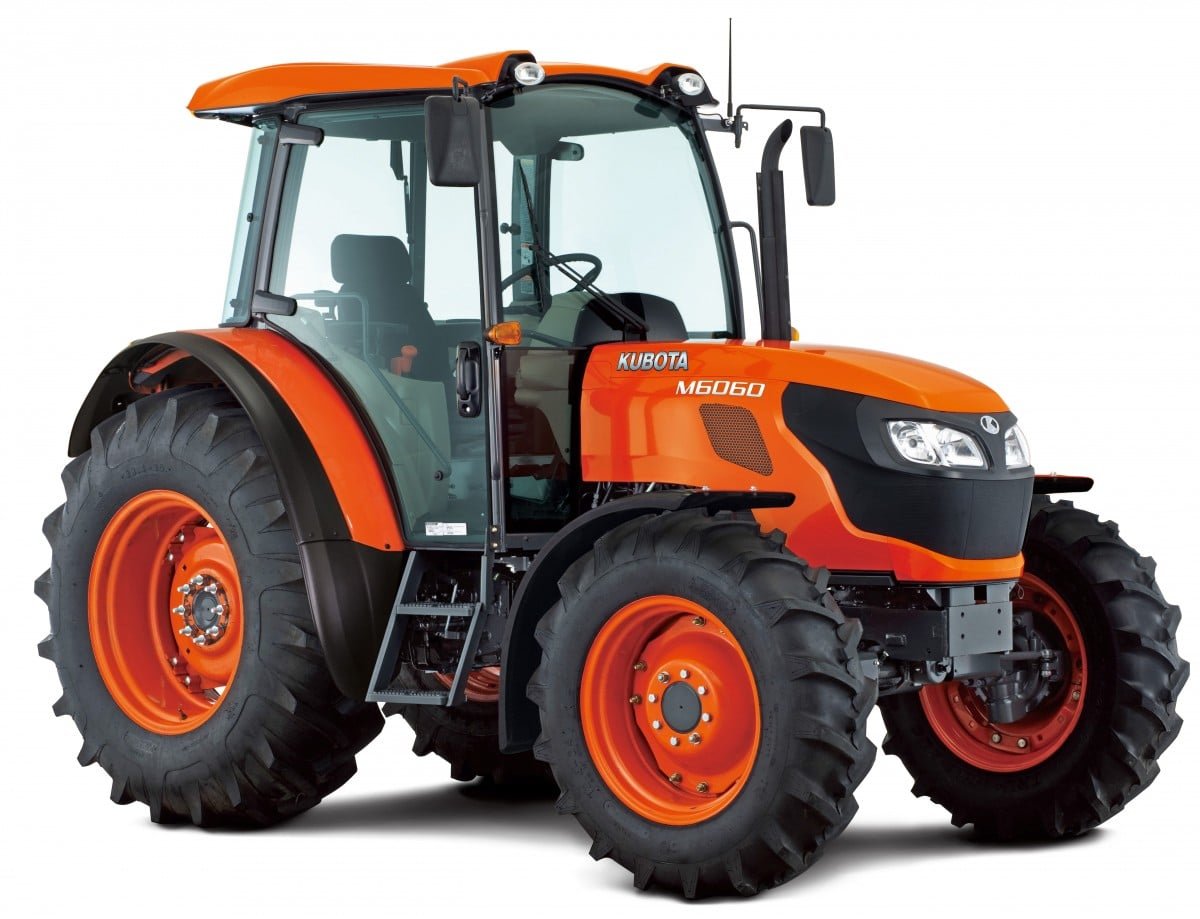

Kubota M6060HDCC 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Kubota M6060HDCC belongs to the Kubota 4WD Tractor series. Under the bonnet works a four-cylinder engine displacing 3.3 litres, producing 47.4 kW. Rated power is reached at 2,400 rpm.
Dimensions are 3.51 m by 1.86 m. Empty, it weighs 2,270 kg.
Within the range, rated power spans from 13.4 to 93.2 kW; with 47.4 kW, the M6060HDCC sits in the upper third. Directly alongside are the M6040 with 46.2 kW below and the M7040 with 50 kW above.
Technical data
Engine
| Engine make | Kubotacorrect |
|---|---|
| Engine model | V3307-CR-TE4correct |
| Power | 47.4 kWcorrect |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,326.6 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Length | 3,505.2correct |
|---|---|
| Width | 1,862.3correct |
| Wheelbase | 2,110.2correct |
| Unladen weight | 2,270 kgcorrect |
Drivetrain and chassis
| Gearbox type | HDCCcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 8correct |
| Turning radius | 3,630 mmcorrect |
Working data
| Lifting capacity | 1,500 kgcorrect |
|---|---|
| Pump flow | 41.6 l/mincorrect |
| Fuel tank capacity | 70 lcorrect |
| PTO output | 56 hpcorrect |
| PTO speed | 540correct |
Other data
| Cab height | 2,557.3correct |
|---|
Where this model stands
Power-to-weight ratio: 20.9 kW/t (47 kW / 2.3 t)
Power class: Universal (40–100 hp)
Stronger than 46% of the tractors in the register — out of 15,143 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M6060HDCC have?
The Kubota M6060HDCC delivers 47.4 kW.
How much does the Kubota M6060HDCC weigh?
The unladen weight is 2,270 kg.
What engine does the Kubota M6060HDCC have?
4 cylinders, 3,327 cm³ displacement.
What is the PTO output of the Kubota M6060HDCC?
PTO output is 56 hp. PTO speeds: 540 rpm.
How much does the rear linkage of the Kubota M6060HDCC lift?
The rear linkage lifts 1,500 kg.
What are the dimensions of the Kubota M6060HDCC?
3,505 mm × 1,862 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
