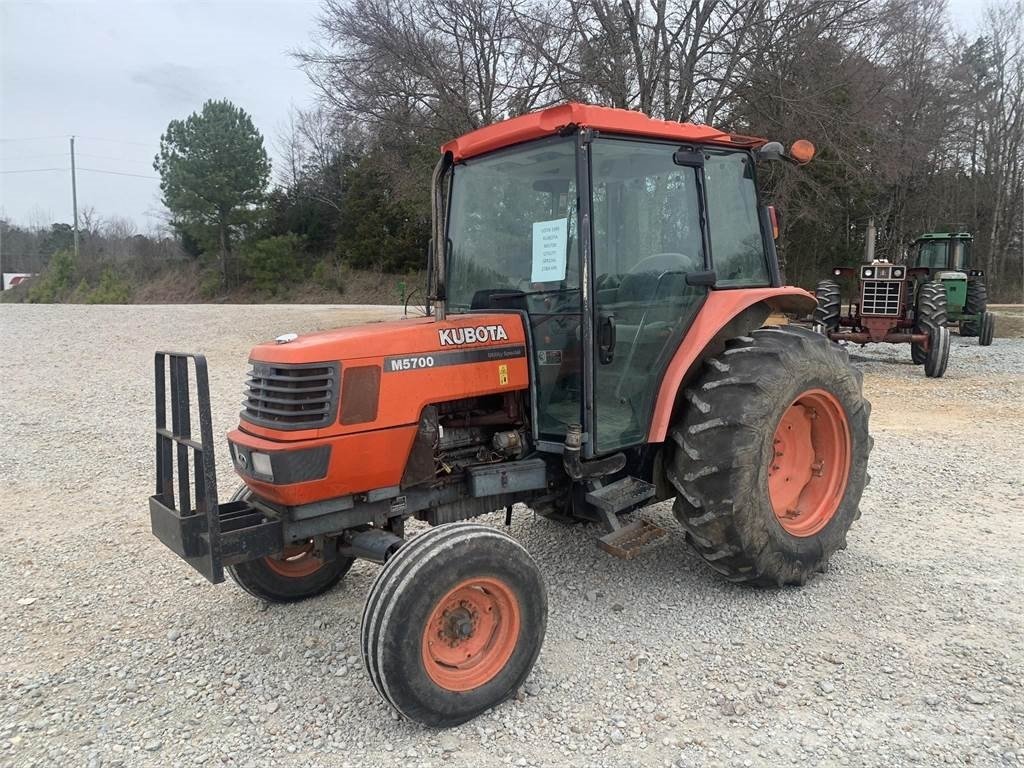

Kubota M5700 Narrow 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota M5700 Narrow is a tractor from the Kubota 4WD Tractor series. Power comes from a four-cylinder engine; from 2.7 litres it draws 42.5 kW. Rated speed is 2,800 rpm.
Unladen weight is 1,720 kg.
Within the range, rated power spans from 13.4 to 93.2 kW; with 42.5 kW, the M5700 Narrow sits in the mid-field. Directly alongside are the M5660SUHD with 41.8 kW below and the MX5800HSTRC with 42.9 kW above.
Technical data
Engine
| Engine model | EF2803-EAcorrect |
|---|---|
| Power | 42.5 kWcorrect |
| Rated speed | 2,800 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,744.8 cm³correct |
| Coolant capacity | 7.6 lcorrect |
| Engine oil capacity | 8.3 lcorrect |
Dimensions and weights
| Ground clearance | 355.1correct |
|---|---|
| Unladen weight | 1,720 kgcorrect |
Drivetrain and chassis
| Gearbox type | fully synchromesh gearboxcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | front 8.0-16 R1 rear 12.4R24 radialcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 64.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 65.1 lcorrect |
Where this model stands
Power-to-weight ratio: 24.7 kW/t (42 kW / 1.7 t)
Power class: Universal (40–100 hp)
Stronger than 41% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M5700 Narrow have?
The Kubota M5700 Narrow delivers 42.5 kW.
How much does the Kubota M5700 Narrow weigh?
The unladen weight is 1,720 kg.
What engine does the Kubota M5700 Narrow have?
4 cylinders, 2,745 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
