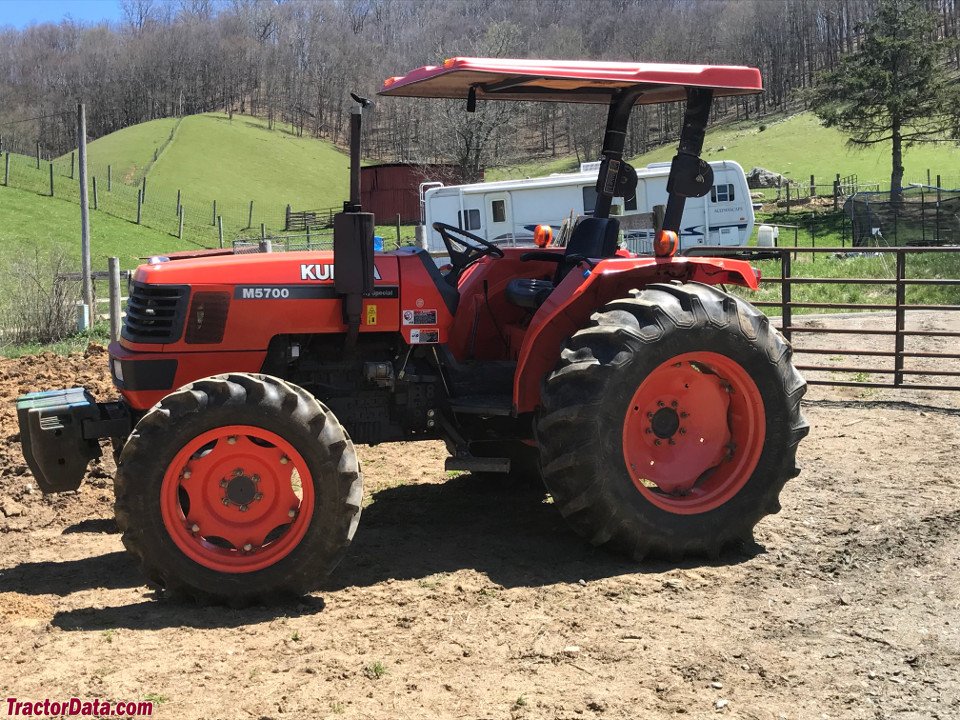

Kubota M5700 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Kubota M5700 belongs to the Kubota 4WD Tractor series. Under the bonnet works a four-cylinder engine displacing 2.7 litres, producing 62 hp (45.9 kW). Rated power is reached at 2,800 rpm.
Unladen, it tips the scales at 2,110 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 62.5 hp, the M5700 sits at the top. Directly alongside are the MX5800HSTRC with 62.3 hp below and the M6800 with 71.9 hp above.
Technical data
Engine
| Engine model | F2803EAcorrect |
|---|---|
| Power | 62.5 hp (45.9 kW)correct |
| Rated speed | 2,800 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,744.8 cm³correct |
| Coolant capacity | 8.3 lcorrect |
| Engine oil capacity | 8.3 lcorrect |
Dimensions and weights
| Ground clearance | 460.2correct |
|---|---|
| Unladen weight | 2,110 kgcorrect |
Drivetrain and chassis
| Gearbox type | fully synchromesh gearboxcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 8correct |
| Tyre size | front 9.5-22R1 rear 16.9-28R1correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 64.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 95 lcorrect |
Other data
| Height | 2,517.6correct |
|---|
Where this model stands
Power-to-weight ratio: 21.8 kW/t (46 kW / 2.1 t)
Power class: Universal (40–100 hp)
Stronger than 45% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M5700 have?
The Kubota M5700 delivers 62.5 hp.
How much does the Kubota M5700 weigh?
The unladen weight is 2,110 kg.
What engine does the Kubota M5700 have?
4 cylinders, 2,745 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
