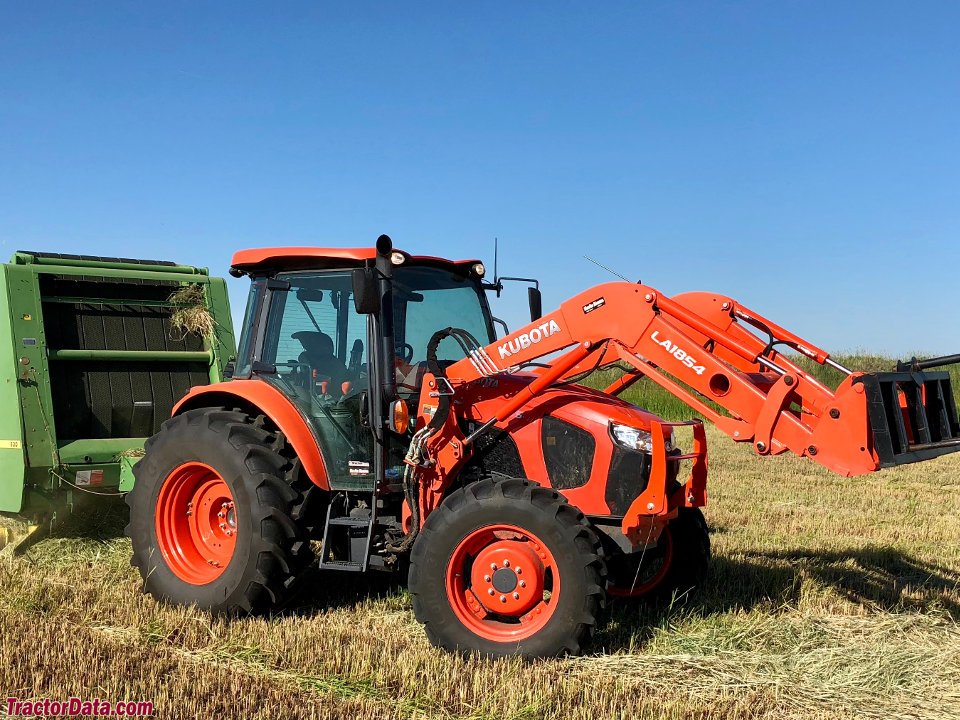

Kubota M5-111HDCC24 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota M5-111HDCC24 is a tractor from the Kubota 4WD Tractor series. The four-cylinder engine, displacing 3.8 litres, produces 107 hp (74.6 kW). Rated speed is 2,600 rpm.
It measures 3.96 m in length. Unladen, it tips the scales at 3,190 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 107 hp, the M5-111HDCC24 sits at the top. Directly alongside are the M6S-111SDS with 106 hp below and the M6S-111SDSCC with 116 hp above.
Technical data
Engine
| Engine make | KUBOTAcorrect |
|---|---|
| Power | 107.1 hp (74.6 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,769 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Length | 3,960.1correct |
|---|---|
| Wheelbase | 2,250.2correct |
| Ground clearance | 500.1correct |
| Unladen weight | 3,190 kgcorrect |
Drivetrain and chassis
| Forward gears | 24correct |
|---|---|
| Reverse gears | 24correct |
Working data
| Pump flow | 64.4 l/mincorrect |
|---|---|
| Fuel tank capacity | 105.2 lcorrect |
Other data
| Height | 2,572.5correct |
|---|
Where this model stands
Power-to-weight ratio: 23.4 kW/t (75 kW / 3.2 t)
Power class: Large (100–180 hp)
Stronger than 68% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M5-111HDCC24 have?
The Kubota M5-111HDCC24 delivers 107 hp.
How much does the Kubota M5-111HDCC24 weigh?
The unladen weight is 3,190 kg.
What engine does the Kubota M5-111HDCC24 have?
4 cylinders, 3,769 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
