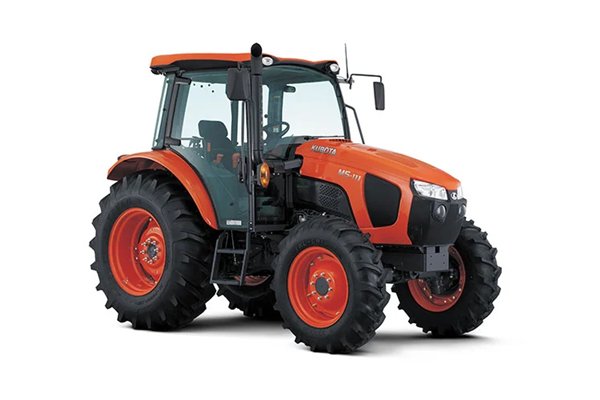

Kubota M5-111HDCC12 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Kubota M5-111HDCC12 belongs to the Kubota 4WD Tractor series. 107 hp (74.6 kW) is what the four-cylinder engine gets out of 3.8 litres. Rated power is reached at 2,600 rpm.
Length is 3.96 m. Empty, it weighs 3,190 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 107 hp, the M5-111HDCC12 sits at the top. Directly alongside are the M6S-111SDS with 106 hp below and the M6S-111SDSCC with 116 hp above.
Technical data
Engine
| Engine make | KUBOTAcorrect |
|---|---|
| Power | 107.1 hp (74.6 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,769 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Length | 3,960.1correct |
|---|---|
| Wheelbase | 2,250.2correct |
| Ground clearance | 500.1correct |
| Unladen weight | 3,190 kgcorrect |
Drivetrain and chassis
| Forward gears | 12correct |
|---|---|
| Reverse gears | 12correct |
| Turning radius | 4,210 mmcorrect |
Working data
| Lifting capacity | 2,750 kgcorrect |
|---|---|
| Pump flow | 64.4 l/mincorrect |
| Fuel tank capacity | 105.2 lcorrect |
| PTO output | 89 hpcorrect |
Other data
| Cab height | 2,572.5correct |
|---|
Where this model stands
Power-to-weight ratio: 23.4 kW/t (75 kW / 3.2 t)
Power class: Large (100–180 hp)
Stronger than 68% of the tractors in the register — out of 15,105 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M5-111HDCC12 have?
The Kubota M5-111HDCC12 delivers 107 hp.
How much does the Kubota M5-111HDCC12 weigh?
The unladen weight is 3,190 kg.
What engine does the Kubota M5-111HDCC12 have?
4 cylinders, 3,769 cm³ displacement.
What is the PTO output of the Kubota M5-111HDCC12?
PTO output is 89 hp.
How much does the rear linkage of the Kubota M5-111HDCC12 lift?
The rear linkage lifts 2,750 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
