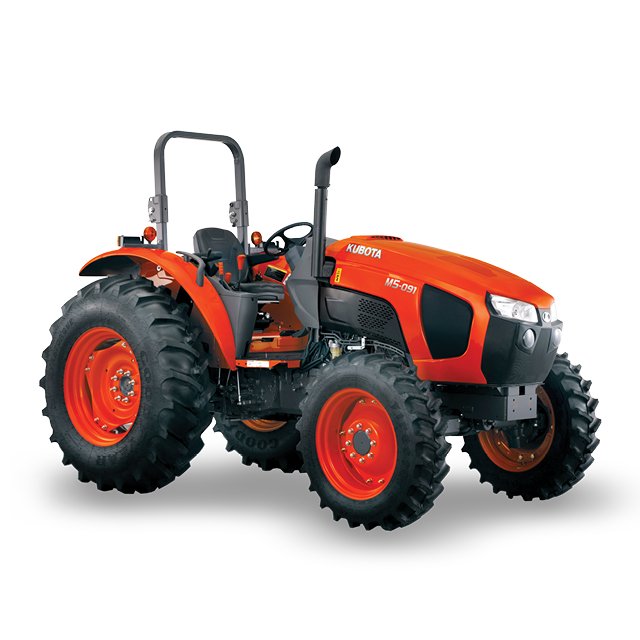

Kubota M5-091HDRC 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the Kubota M5-091HDRC belongs to the Kubota 4WD Tractor series. Under the bonnet works a four-cylinder engine displacing 3.8 litres, producing 94 hp (63.8 kW). Rated power is reached at 2,400 rpm.
It measures 3.96 m in length. Unladen, it tips the scales at 2,790 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 93.8 hp, the M5-091HDRC sits at the top. Directly alongside are the M9000 with 93.4 hp below and the M6H-101 with 106 hp above.
Technical data
Engine
| Engine make | KUBOTAcorrect |
|---|---|
| Power | 93.8 hp (63.8 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,769 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Length | 3,960.1correct |
|---|---|
| Wheelbase | 2,250.2correct |
| Ground clearance | 475.2correct |
| Unladen weight | 2,790 kgcorrect |
Drivetrain and chassis
| Forward gears | 8correct |
|---|---|
| Reverse gears | 8correct |
| Turning radius | 4,210 mmcorrect |
Working data
| Lifting capacity | 2,100 kgcorrect |
|---|---|
| Pump flow | 59.4 l/mincorrect |
| Fuel tank capacity | 105.2 lcorrect |
| PTO output | 76 hpcorrect |
| PTO speed | 540correct |
Other data
| Cab height | 2,511.6correct |
|---|
Where this model stands
Power-to-weight ratio: 22.9 kW/t (64 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 61% of the tractors in the register — out of 14,914 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M5-091HDRC have?
The Kubota M5-091HDRC delivers 93.8 hp.
How much does the Kubota M5-091HDRC weigh?
The unladen weight is 2,790 kg.
What engine does the Kubota M5-091HDRC have?
4 cylinders, 3,769 cm³ displacement.
What is the PTO output of the Kubota M5-091HDRC?
PTO output is 76 hp. PTO speeds: 540 rpm.
How much does the rear linkage of the Kubota M5-091HDRC lift?
The rear linkage lifts 2,100 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
