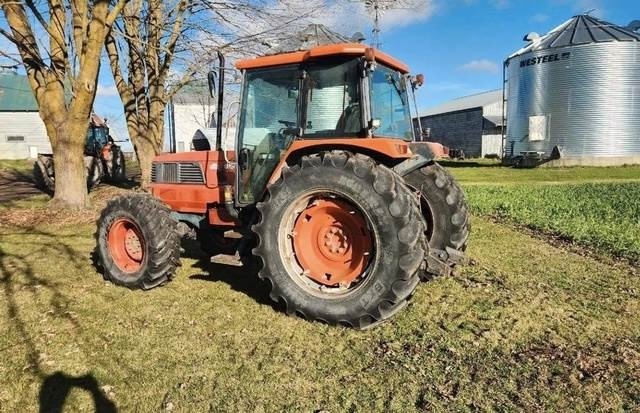

Kubota M120 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota M120 is a tractor from the Kubota 4WD Tractor series. The five-cylinder engine, displacing 5.8 litres, produces 89.5 kW. Rated speed is 2,400 rpm.
Unladen, it tips the scales at 4,400 kg.
Within the range, rated power spans from 13.4 to 93.2 kW; with 89.5 kW, the M120 sits at the top. Directly alongside are the M110 with 82 kW below and the M125X with 93.2 kW above.
Technical data
Engine
| Engine model | F5802TE2correct |
|---|---|
| Power | 89.5 kWcorrect |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 5correct |
| Displacement | 5,833.8 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 13.2 lcorrect |
| Engine oil capacity | 20.8 lcorrect |
Dimensions and weights
| Ground clearance | 530.1correct |
|---|---|
| Unladen weight | 4,400 kgcorrect |
Drivetrain and chassis
| Gearbox type | power shift dual rangecorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Tyre size | front 14.9-24 rear 18.4R-38R1correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 134.8 l/mincorrect |
|---|---|
| Fuel tank capacity | 200.2 lcorrect |
Other data
| Height | 2,728correct |
|---|
Where this model stands
Power-to-weight ratio: 20.3 kW/t (90 kW / 4.4 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota M120 have?
The Kubota M120 delivers 89.5 kW.
How much does the Kubota M120 weigh?
The unladen weight is 4,400 kg.
What engine does the Kubota M120 have?
5 cylinders, 5,834 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
