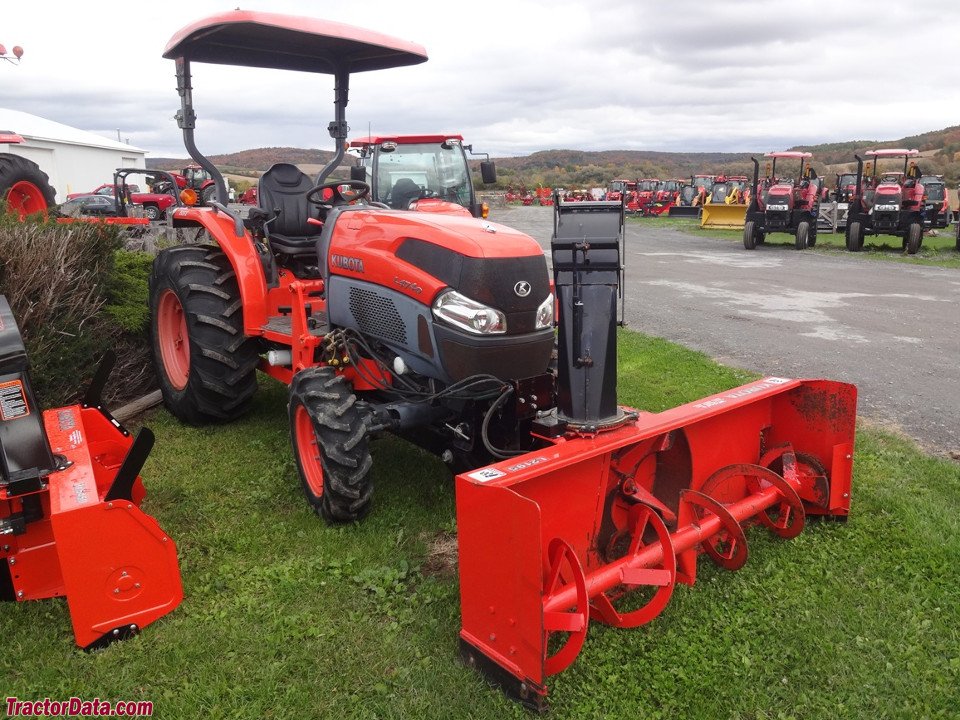

Kubota L4740HSTC 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota L4740HSTC is a tractor from the Kubota 4WD Tractor series. Power comes from a four-cylinder engine; from 2.4 litres it draws 50 hp (35 kW). With a rated speed of 2,700 rpm, it is built for pulling power, not for revving.
At 26 km/h, that is as fast as it goes. Empty, it weighs 1,815 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 49.7 hp, the L4740HSTC sits in the mid-field. Directly alongside are the L4701-4WD with 48 hp below and the MX4800DTRC with 50 hp above.
Technical data
Engine
| Engine model | E-TVCScorrect |
|---|---|
| Power | 49.7 hp (35 kW)correct |
| Rated speed | 2,700 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,433.5 cm³correct |
| Aspiration | naturalcorrect |
Dimensions and weights
| Length | 3,090 mmcorrect |
|---|---|
| Unladen weight | 1,815 kgcorrect |
Drivetrain and chassis
| Gearbox type | HST plus 3 rangecorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 3correct |
| Tyre size | front 8.3-16 rear 14.9-24correct |
| Top speed | 25.9 km/hcorrect |
| Turning radius | 2,710 mmcorrect |
| System voltage | 12 Vcorrect |
Working data
| Lifting capacity | 1,250 kgcorrect |
|---|---|
| Pump flow | 55.6 l/mincorrect |
| Fuel tank capacity | 54.1 lcorrect |
| PTO output | 40 hpcorrect |
Other data
| Cab height | 2,557.3correct |
|---|
Where this model stands
Power-to-weight ratio: 19.3 kW/t (35 kW / 1.8 t)
Power class: Universal (40–100 hp)
Stronger than 33% of the tractors in the register — out of 15,105 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota L4740HSTC have?
The Kubota L4740HSTC delivers 49.7 hp.
How much does the Kubota L4740HSTC weigh?
The unladen weight is 1,815 kg.
What engine does the Kubota L4740HSTC have?
4 cylinders, 2,434 cm³ displacement.
How fast does the Kubota L4740HSTC go?
Top speed is 25.9 km/h.
What is the PTO output of the Kubota L4740HSTC?
PTO output is 40 hp.
How much does the rear linkage of the Kubota L4740HSTC lift?
The rear linkage lifts 1,250 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
