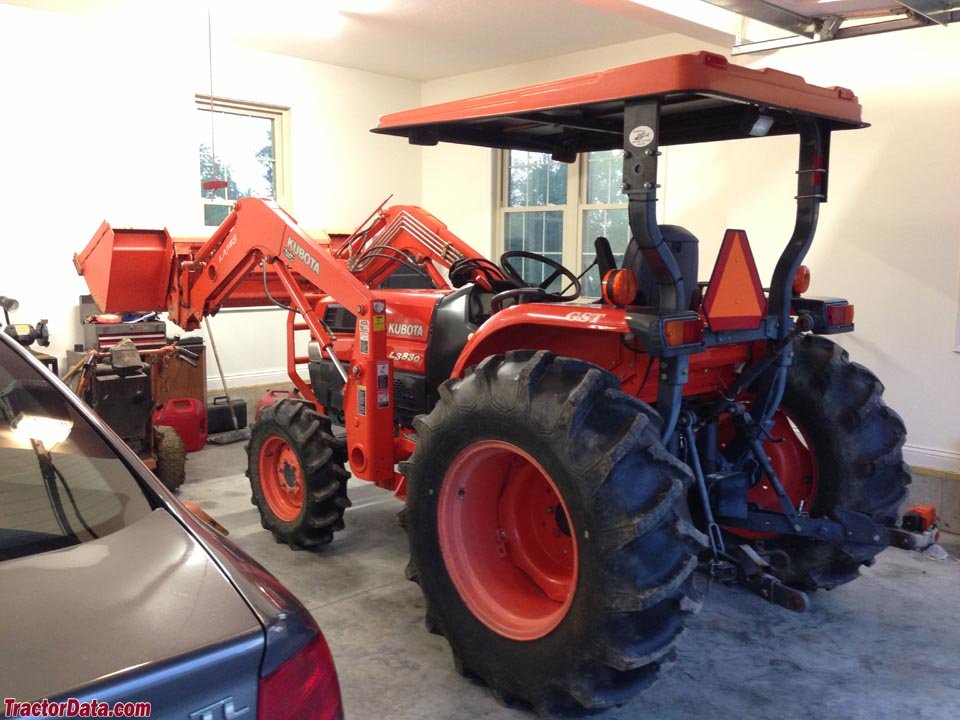

Kubota L3830GST 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota L3830GST is a tractor from the Kubota 4WD Tractor series. Power comes from a three-cylinder engine; from 1.8 litres it draws 40 hp (27.9 kW). With a rated speed of 2,700 rpm, it is built for pulling power, not for revving.
At 26 km/h, that is as fast as it goes. Empty, it weighs 1,485 kg.
Within the range, rated power spans from 18.2 to 116 hp; with 39.5 hp, the L3830GST sits in the mid-field. Directly alongside are the R36i with 39 hp below and the L3940DT with 41.1 hp above.
Technical data
Engine
| Engine model | L3830 GSTcorrect |
|---|---|
| Power | 39.5 hp (27.9 kW)correct |
| Rated speed | 2,700 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,827.2 cm³correct |
| Aspiration | E-TVCS indirect injectioncorrect |
Dimensions and weights
| Ground clearance | 375.2correct |
|---|---|
| Unladen weight | 1,485 kgcorrect |
Drivetrain and chassis
| Gearbox type | GSTcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 8correct |
| Tyre size | front 8.3-16 rear 14.9-24correct |
| Top speed | 25.7 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 50.3 l/mincorrect |
|---|---|
| Fuel tank capacity | 40.1 lcorrect |
Other data
| Height | 2,316.5correct |
|---|
Where this model stands
Power-to-weight ratio: 18.8 kW/t (28 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 24% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota L3830GST have?
The Kubota L3830GST delivers 39.5 hp.
How much does the Kubota L3830GST weigh?
The unladen weight is 1,485 kg.
What engine does the Kubota L3830GST have?
3 cylinders, 1,827 cm³ displacement.
How fast does the Kubota L3830GST go?
Top speed is 25.7 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
