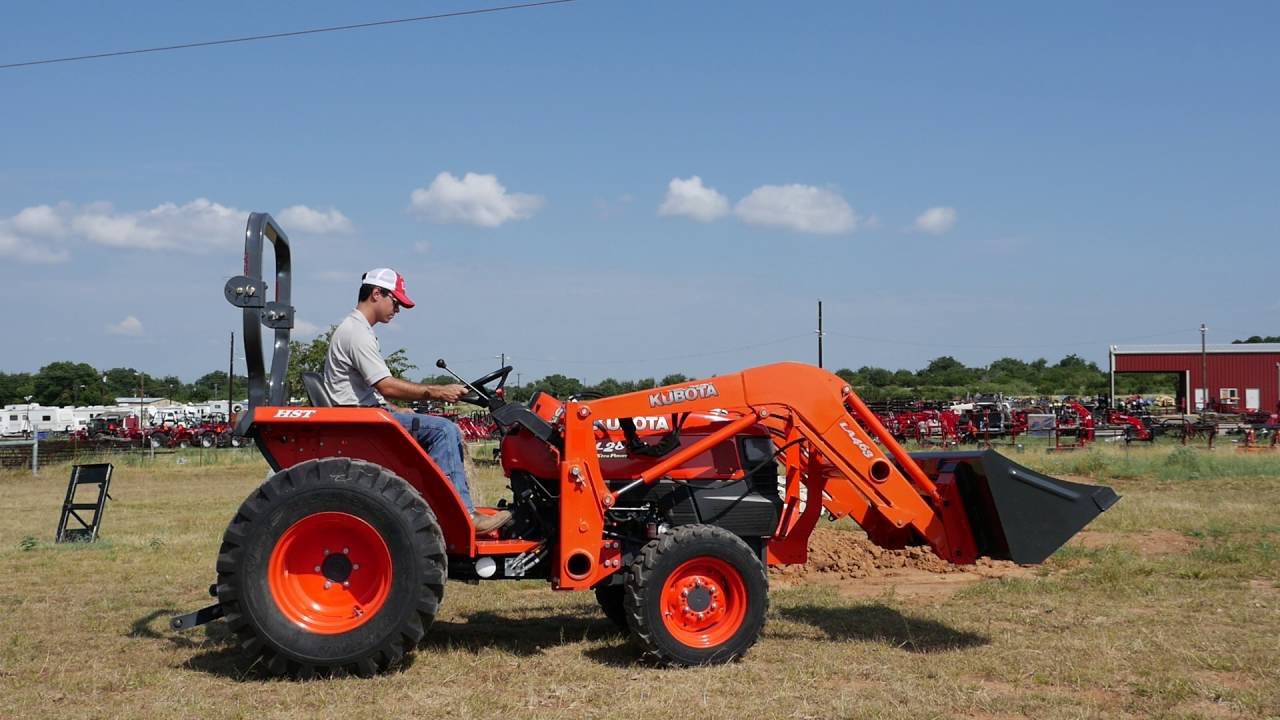

Kubota L2800 Gear Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Kubota L2800 Gear is a tractor from the Kubota Utility Tractor series. Power comes from a three-cylinder engine; from 1.4 litres it draws 29 hp (21.6 kW). Rated power arrives at 2,800 rpm — the engine pulls from low down rather than needing to be revved.
It will not go faster than 22 km/h — a working pace, not a travelling one. It measures 1.31 m across. Unladen, it tips the scales at 1,070 kg.
Within the range, rated power spans from 29.4 to 54.7 hp; with 29.4 hp, the L2800 Gear sits at the bottom end. The next one up is the L3130F with 32.5 hp.
Technical data
Engine
| Engine model | L2800correct |
|---|---|
| Power | 29.4 hp (21.6 kW)correct |
| Rated speed | 2,800 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,392.9 cm³correct |
Dimensions and weights
| Width | 1,307.6correct |
|---|---|
| Wheelbase | 1,612.4correct |
| Unladen weight | 1,070 kgcorrect |
Drivetrain and chassis
| Gearbox type | sliding-gear transmission constant-mesh gearboxcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Top speed | 22 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 25 l/mincorrect |
|---|---|
| Fuel tank capacity | 34.1 lcorrect |
Where this model stands
Power-to-weight ratio: 20.2 kW/t (22 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 17% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota L2800 Gear have?
The Kubota L2800 Gear delivers 29.4 hp.
How much does the Kubota L2800 Gear weigh?
The unladen weight is 1,070 kg.
What engine does the Kubota L2800 Gear have?
3 cylinders, 1,393 cm³ displacement.
How fast does the Kubota L2800 Gear go?
Top speed is 22 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
