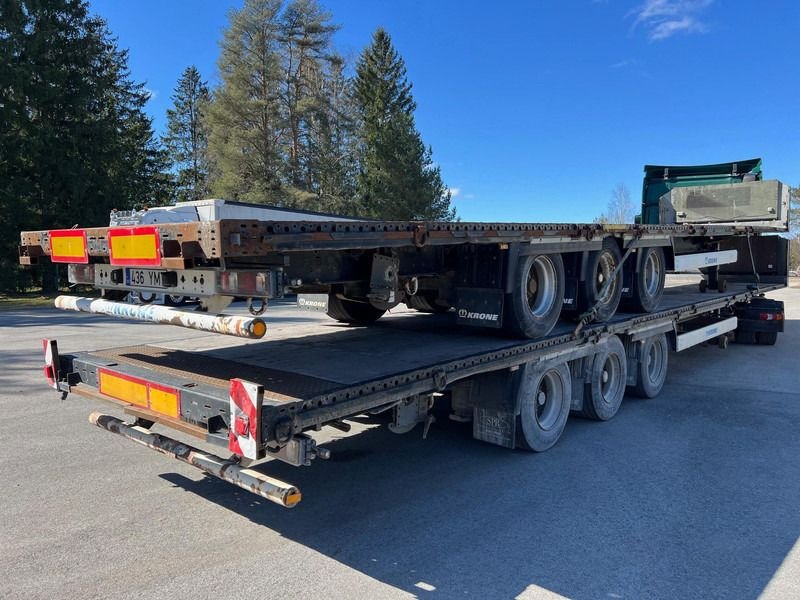

Krone SDP27 ELHB2-CS
Built: 2006-2007 · Series: SDP27
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Krone SDP27 – the range of standard semi-trailers, 16 versions with unladen weight 4,260 to 8,280 kg, gross weight 27,000 to 41,000 kg, lengths around 13.7 to 14 m
Krone's SDP27 range, from Werlte in the Emsland, covers semi-trailers at the European standard length of around 13.6 metres. Model designations such as SDP27/624+131+131 and SDP27 ELB2-CS give, besides the base type SDP27, a number sequence and suffixes such as ELB2-CS and TL1, by which Krone distinguishes the versions within the range.
Read on 3 more paragraphs
The register lists here 16 versions with unladen weights from 4,260 to 8,280 kg, gross weights from 27,000 to 41,000 kg, lengths from 13,680 to 13,960 mm and widths from 2,550 to 2,600 mm.
With the European standard length and gross weights up to 41 tonnes, the SDP27 range counts among the semi-trailers of general long-haul transport, used interchangeably by hauliers and behind tractor units of various makes. Krone counts, alongside Schmitz Cargobull and Kögel, among the largest European semi-trailer makers and supplies hauliers across Europe.
On used semi-trailers of this class, the condition of frame and kingpin, brake system and axle air suspension, side walls and tarpaulin, tyre tread and the inspection and maintenance history behind often high long-haul mileages count; parts run through the Krone service network. On used semi-trailers it is also worth checking the underrun guard and the wear plate above the fifth-wheel coupling, which is particularly stressed by frequent changes of tractor unit.
Sources: SpecCodex register, model data: Krone SDP27, Krone (manufacturer)
Technical data
Dimensions and weights
| Length | 13,950 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 9,010 mmcorrect |
| Unladen weight | 7,420 kgcorrect |
| Gross vehicle weight | 41,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Krone SDP27 ELHB2-CS weigh?
The unladen weight is 7,420 kg.
What is the gross vehicle weight of the Krone SDP27 ELHB2-CS?
41,000 kg.
Up to what speed is the Krone SDP27 ELHB2-CS approved?
Approved up to 100 km/h.
What are the dimensions of the Krone SDP27 ELHB2-CS?
13,950 mm × 2,550 mm.
When was the Krone SDP27 ELHB2-CS built?
Production years: 2006-2007.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
