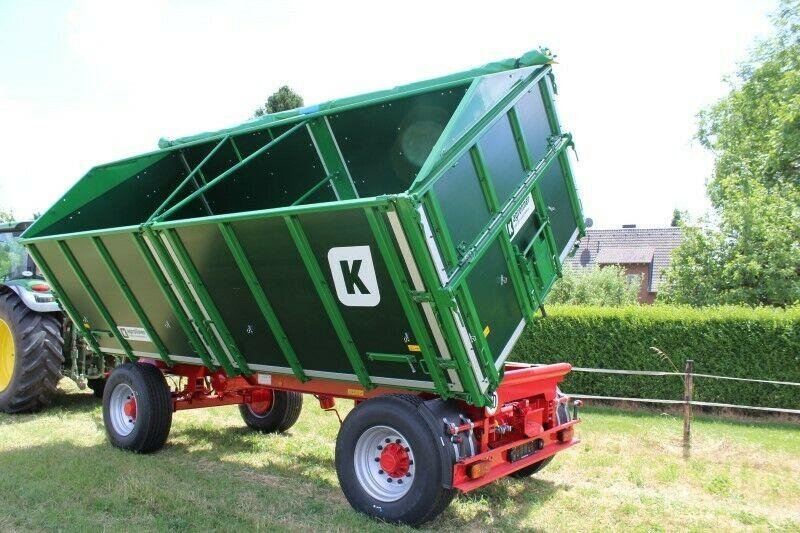

Kriegler AKR00
Built: 2000 · Series: Other models
More machines from model year 2000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kriegler AKR00: an O4-class EU trailer with an 18,000 kg gross weight, 10,950 kg kerb weight and a length of 12.00 m, its 1,310 mm figure being tandem axle spacing.
At a gross weight of 18,000 kg, the Kriegler AKR00 falls into the EU O4 trailer class, the heavy trailers above 10 tonnes towed behind lorries in commercial haulage. At 12.00 m long, it ranks among the longer builds in this weight class, suiting bulky rather than extremely heavy cargo.
Read on 3 more paragraphs
With a kerb weight of 10,950 kg, the payload comes to 7,050 kg, just under two fifths of the gross weight. The comparatively high kerb weight at 12 metres points to a sturdy, stable chassis needed for a long load area. The stated figure of 1,310 mm is not the trailer's wheelbase but the standard spacing between the two axles of a tandem axle group.
As an O4-class vehicle, the AKR00 needs an air brake system and is towed only behind vehicles under a category CE licence. The combination of great length and moderate payload suits bulky but lighter goods, such as building elements, machine parts or unit loads that need more floor space than carrying capacity.
Buying a used long tandem-axle trailer, the tight axle spacing deserves particular attention: tyres and brakes in the tandem group wear unevenly on tight turns, so it is worth checking tread depth and brake lining thickness. It is also worth checking the long chassis for sagging, the air lines for chafing, and the coupling and landing legs for wear from years of loading and unloading.
Sources: SpecCodex-Register: Kennwerte des Modells AKR00
Technical data
Dimensions and weights
| Length | 12,000 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 1,310 mmcorrect |
| Unladen weight | 10,950 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Kriegler AKR00 weigh?
The unladen weight is 10,950 kg.
What is the gross vehicle weight of the Kriegler AKR00?
18,000 kg.
Up to what speed is the Kriegler AKR00 approved?
Approved up to 100 km/h.
What are the dimensions of the Kriegler AKR00?
12,000 mm × 2,550 mm.
When was the Kriegler AKR00 built?
Production years: 2000.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
Trailer in 3D section
Turn the model, look inside and click an assembly — each one is explained.
