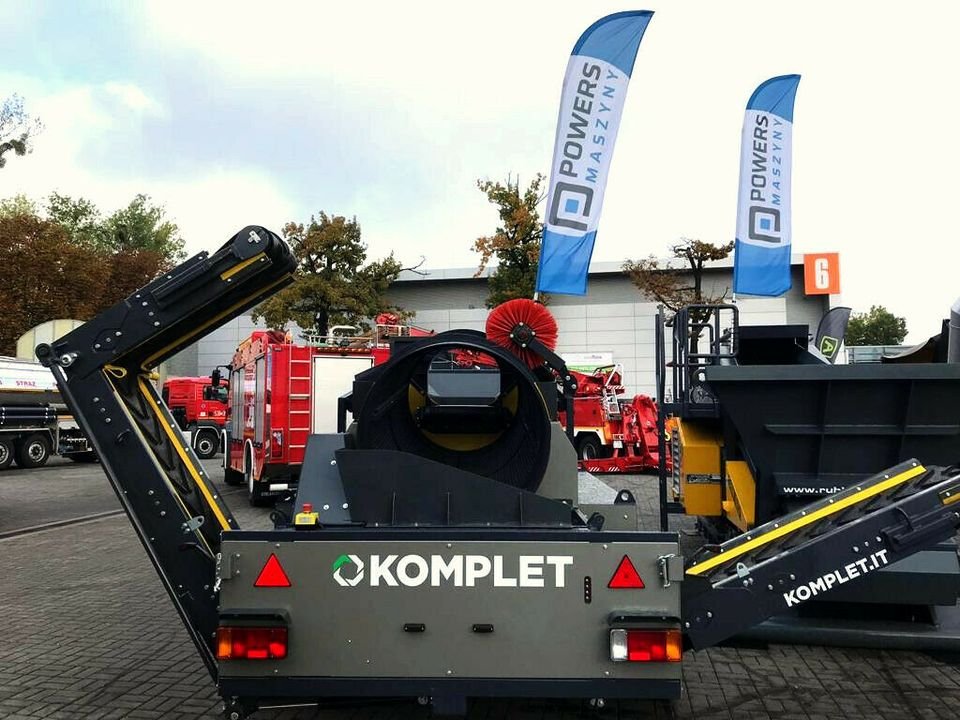

Komplet Drum Screen DS 1020: a mobile drum screening plant on a three-axle trailer chassis with a 6.57 m length and 5.28 m axle span
The model name Drum Screen DS 1020 identifies this trailer as a mobile screening plant rather than an ordinary transport trailer: a rotating drum screen separates bulk material such as soil, compost, building rubble or gravel by grain size, while the whole plant sits on a road-approved chassis so it can move between job sites without needing a low-loader.
Read on 3 more paragraphs
At 6.57 m long and 2.50 m wide, the chassis provides room for the screening drum along with its feed and discharge conveyors. The six wheels are spread across three axles with a 5.28 m span between the first and last axle, a widely spread and therefore stable axle layout for a machine of this length, well suited to working on the uneven ground found on building sites and recycling yards.
Mobile screening plants of this type are used at recycling yards, in earthworks and at composting operations, wherever material has to be graded on site rather than hauled to a fixed plant. The three axles provide the road approval needed for the overall heavy assembly of drum, frame and drive.
When buying used, besides the chassis itself, the condition of the screening drum matters most: wear on the screen mesh, bearing play in the drum, and the condition of the drive chain or belt drive determine how well the material is graded. On the chassis, the three axles, the braking system and the frame around the axle mounts should be checked for cracks.
Sources: SpecCodex-Register: Kennwerte des Modells Komplet Drum Screen DS 1020
Technical data
Dimensions and weights
| Length | 6,570 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 5,280 mmcorrect |
| Unladen weight | 3,500 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Komplet DRUM SCREEN DS 1020 weigh?
The unladen weight is 3,500 kg.
What is the gross vehicle weight of the Komplet DRUM SCREEN DS 1020?
3,500 kg.
Up to what speed is the Komplet DRUM SCREEN DS 1020 approved?
Approved up to 100 km/h.
What are the dimensions of the Komplet DRUM SCREEN DS 1020?
6,570 mm × 2,500 mm.
When was the Komplet DRUM SCREEN DS 1020 built?
Production years: 2017.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
