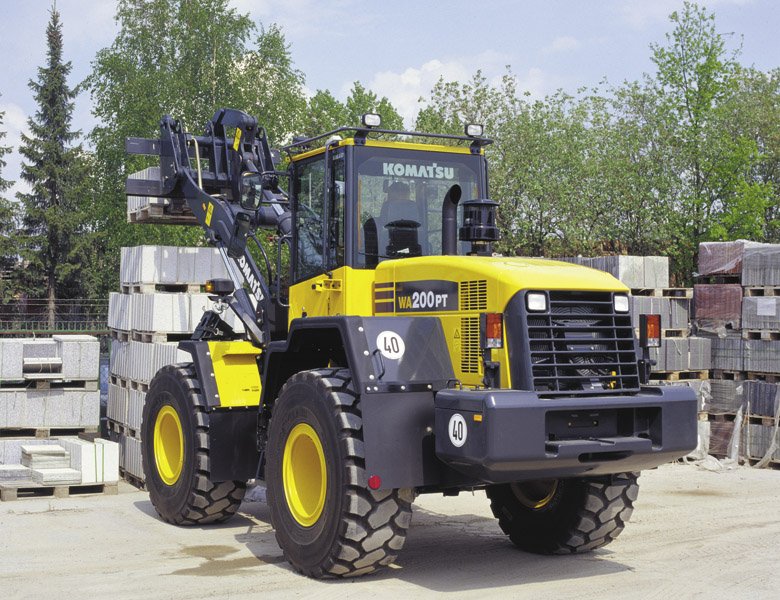

Komatsu WA200PT-5 (2843.8 mm)

Series: Komatsu Integrated Tool Carrier

Source: https://www.komatsu.eu/it/archivio-prodotti/pale-gommate/wa2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Komatsu WA200PT-5 is a model in the Komatsu Integrated Tool Carrier series. The engine delivers 128.8 hp (89.5 kW), with a displacement of 5,883 cm³. The unladen weight is 10,328.8 kg. The wheelbase measures 2,843.8 mm. Ground clearance is 481.6 mm. The tank holds 184 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The hydraulic tank holds 67 litres. The cooling system holds 17.4 litres. The oil fill is 20.8 litres. The electrical system runs on 24 V. The engine fitted is the SAA6D102E-2. Tyre size: 20,5/25-12PR (L2). Rated output across the Komatsu range ranges from 3.5 to 4,126.5 hp; the WA200PT-5 sits at the bottom of that range with 128.8 hp. Its immediate neighbours are the PW170ES-6 below it with 126.5 hp and the D41P-5A above it with 129.2 hp. 1159 Komatsu models across 39 series are on record. The model is listed under Telehandlers. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model	SAA6D102E-2correct
Power	128.8 hp (89.5 kW)correct
Displacement	5,883 cm³correct
Aspiration	turbocharged, and air-to-air aftercooledcorrect
Coolant capacity	17.4 lcorrect
Engine oil capacity	20.8 lcorrect

Dimensions and weights

Wheelbase	2,843.8correct
Ground clearance	481.6correct
Unladen weight	10,328.8 kgcorrect

Drivetrain and chassis

Gearbox type	hydrostatic transmission, 1 pump, 2 motors with speed range selectcorrect
Forward gears	4correct
Reverse gears	4correct
Tyre size	20.5/25-12PR (L2)correct
Turning radius	4,970 mmcorrect

Working data

Lift height	3,710 mmcorrect
Hydraulic oil capacity	67 lcorrect
Fuel tank capacity	184 lcorrect

Other data

Cab height	3,176correct
System voltage	24 Vcorrect

More machines with this engine (Komatsu SAA6D102E-2, 17)

Where this model stands

Power-to-weight ratio: 8.7 kW/t (90 kW / 10.3 t)

Stronger than 72% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Komatsu WA200PT-5 have?

The Komatsu WA200PT-5 delivers 129 hp.

How much does the Komatsu WA200PT-5 weigh?

The unladen weight is 10,329 kg.

What engine does the Komatsu WA200PT-5 have?

5,883 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
