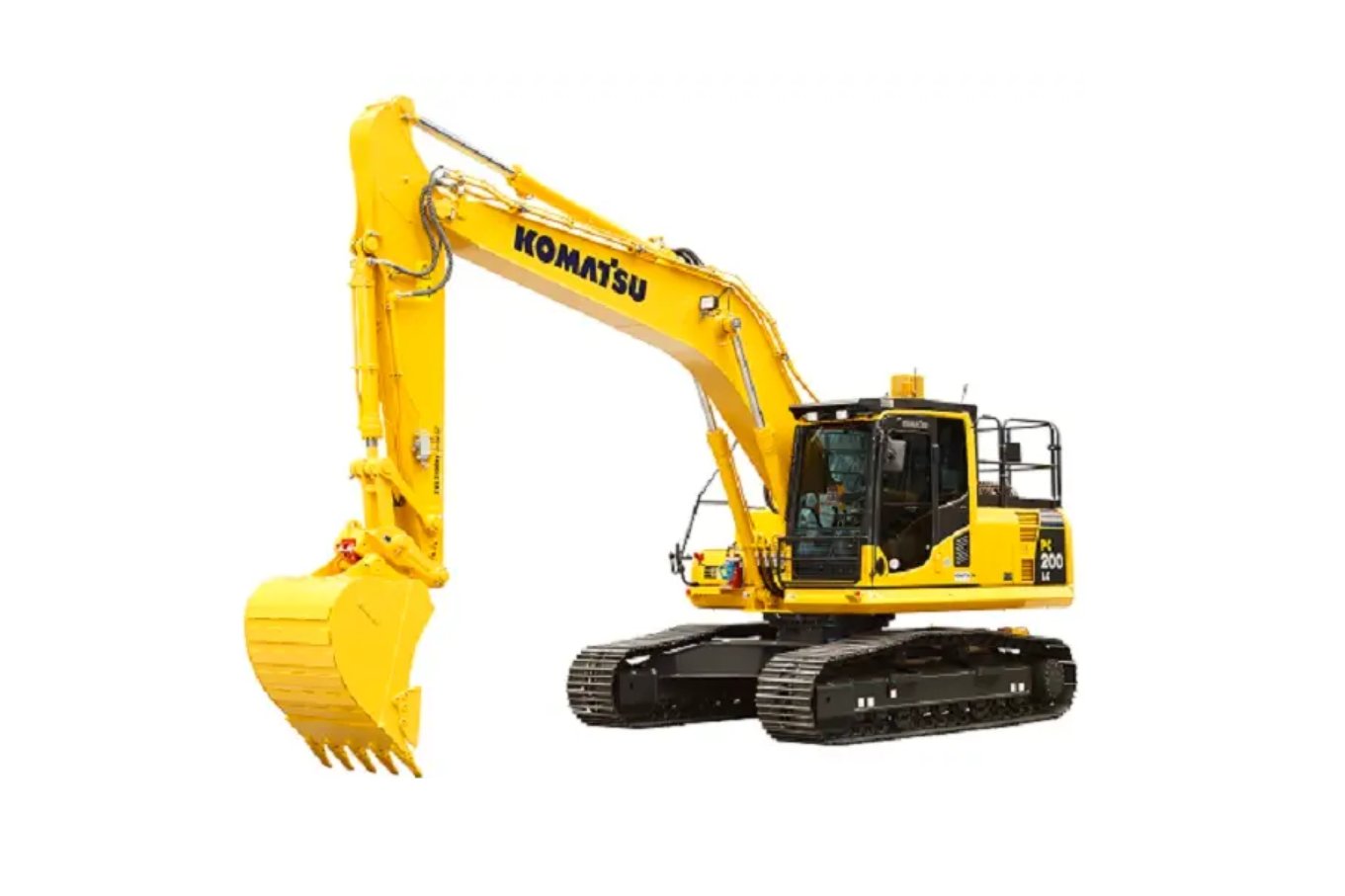

Komatsu PC200LC-8M0
Series: Komatsu Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Komatsu PC200LC-8M0 is the LC version of the eighth-generation PC200. According to a dealer source the machine delivers 148 hp; the engine is designed or prepared for the Tier 3 and EU stage 3A emission levels. In addition there is the KOMTRAX monitoring system, which sends location, operating hours and maintenance alerts wirelessly to a web application.
The Komatsu SAA6D107E-1 engine has six cylinders, 6,690.8 cm³ displacement, a turbocharger with aftercooling and a rated speed of 2,000 rpm. At 9,427.5 mm long and 3,040 mm high, the LC variant is cut slightly differently in its dimensions from the standard version; ground clearance is 442 mm.
For parts purchases: the LC in the name refers to the undercarriage, and the engine parts are identical to the standard machine. Anyone looking for wear parts on the undercarriage must give the LC designation, because rollers, chains and track guides may be laid out differently.
Komatsu PC — what the number and dash figure actually tell you
Anyone typing “Komatsu PC120” or “PC100” is usually trying to decode the label: PC is Komatsu's crawler-excavator designation, the following number places the model roughly in a size class, and a dash number at the end marks the generation.
Read on 4 more paragraphs
Recent generations run under labels such as -8, -10 or -11; each update brings a revised engine, hydraulics and cab plus tighter emissions rules, while the base number stays the same. The added letter LC marks a widened, lengthened undercarriage that spreads more contact area on soft soil.
Alongside the PC line, Komatsu also sells models such as H135S, H455S or H655S, a separate family for very large open-pit excavators tracing back to the earlier partnership with German manufacturer Demag. Its letter-and-number logic follows its own rules and does not map onto the PC models.
The “Komatsu Hydraulic Excavator” collective entry holds both families side by side, from compact excavators starting around 53 kW up to the large H-series machines. When buying used, check the hour meter along with track rollers, chain tension and cylinder seals.
In short: the number after PC signals the size class, the dash number the generation, and models like PC100, PC120 or H655S show how wide a range sits under one register entry.
Sources: SpecCodex register, model data: Komatsu Hydraulic Excavator, Bagger-Typenschluessel im Herstellervergleich, Komatsu Seriennummern- und Generationen-Leitfaden, Demag-Komatsu H655S, Museumsarchiv
Technical data
Engine
| Engine model | Komatsu SAA6D107E-1correct |
|---|---|
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,690.8 cm³correct |
| Aspiration | Turbocharged, aftercooledcorrect |
Dimensions and weights
| Length | 9,427.5 mmcorrect |
|---|---|
| Height | 3,040 mmcorrect |
| Ground clearance | 442 mmcorrect |
More machines with this engine (Komatsu SAA6D107E-1, 11)
Frequently asked questions
What engine does the Komatsu PC200LC-8M0 have?
6 cylinders, 6,691 cm³ displacement.
What are the dimensions of the Komatsu PC200LC-8M0?
9,428 mm × 3,040 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
