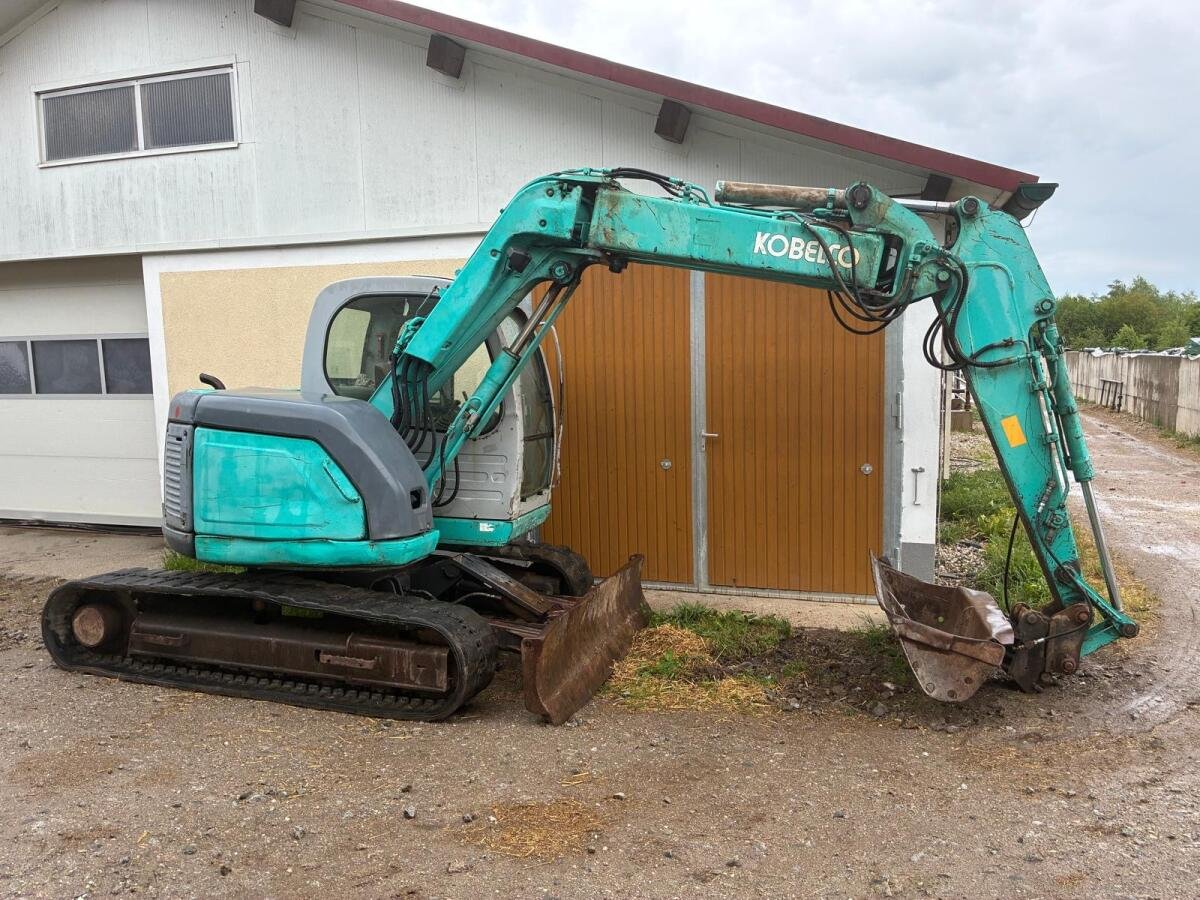

Kobelco 70SR ACERA

Series: Kobelco Midi Excavator

Source: https://www.landwirt.com/kleinanzeigen/detail/kobelco-bagger

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 70SR ACERA from Kobelco is part of the Kobelco Midi Excavator series. The engine delivers 41.5 kW, has 4 cylinders, with a displacement of 2,179.5 cm³. Torque is 200.7 Nm. Rated speed is 2,200 rpm. The unladen weight is 7,840 kg. Ground clearance is 362.7 mm. The tank holds 120.4 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 132.1 l/min. The hydraulic tank holds 90.1 litres. Working pressure is 328.9 bar. The cooling system holds 8.7 litres. The oil fill is 11.4 litres. The engine fitted is the AU-4LE2X. The Kobelco Midi Excavator series covers 15 models. Rated output within it ranges from 29.3 to 123.8 kW; the 70SR ACERA sits at the bottom of that range with 41.5 kW. Its immediate neighbours are the SK85CS-3E below it with 41 kW and the SK75SR-3E above it with 42 kW. 98 Kobelco models across 6 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine modelAU-4LE2Xcorrect
Power41.5 kWcorrect
Rated speed2,200 rpmcorrect
Torque200.7correct
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Displacement2,179.5 cm³correct
AspirationTurbocharged w/ Intercoolercorrect
Coolant capacity8.7 lcorrect
Engine oil capacity11.4 lcorrect

Dimensions and weights

Ground clearance362.7correct
Unladen weight7,840 kgcorrect

Working data

Pump flow132.1 l/mincorrect
Hydraulic oil capacity90.1 lcorrect
Hydraulic pressure328.9 barcorrect
Fuel tank capacity120.4 lcorrect

Other data

Height2,740.2correct

Where this model stands

Power-to-weight ratio: 5.3 kW/t (42 kW / 7.8 t)

Stronger than 12% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kobelco 70SR ACERA have?

The Kobelco 70SR ACERA delivers 41.5 kW.

How much does the Kobelco 70SR ACERA weigh?

The unladen weight is 7,840 kg.

What engine does the Kobelco 70SR ACERA have?

4 cylinders, 2,180 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
