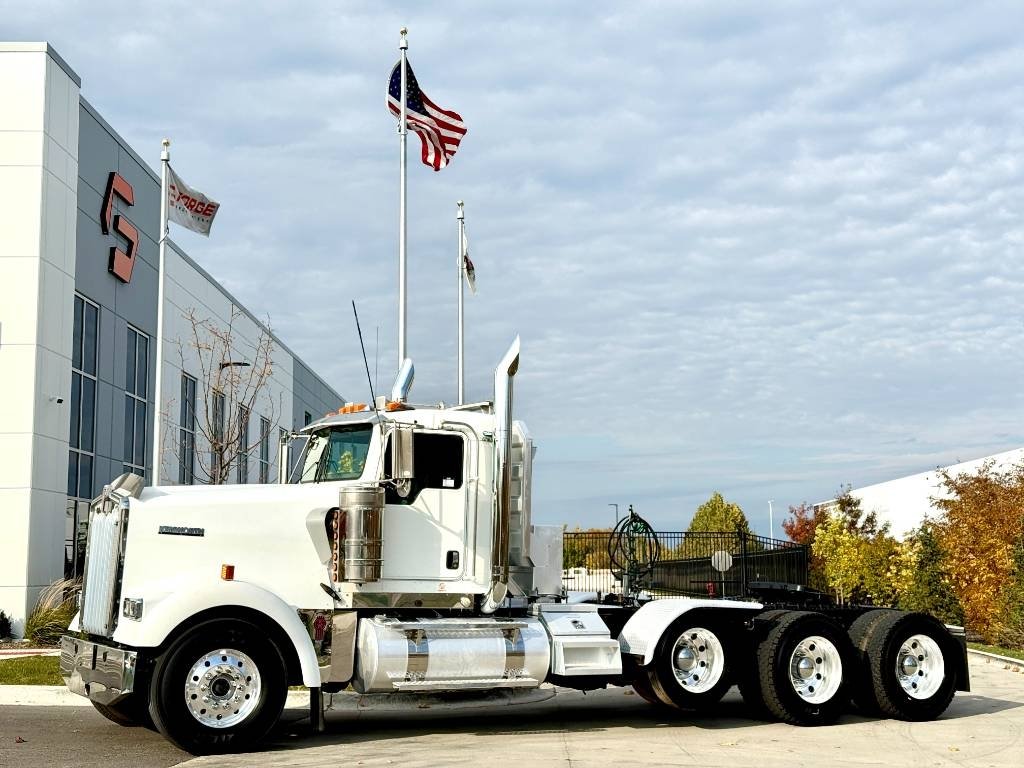

Kenworth CONSTRUCT W 900

Built: 1999-1999 · Series: Other models

More machines from model year 1999

Source: https://www.ritchielist.com/trucks-trailers/truck-tractors-t

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The CONSTRUCT W 900 comes from Kenworth. Production: 1999. The engine has 6 cylinders, with a displacement of 14,600 cm³. The machine is 9,300 mm long and 2,530 mm wide. The unladen weight is 9,770 kg. The wheelbase measures 7,660 mm. The gross vehicle weight is 21,771 kg. The machine runs on 6 wheels. Unladen weight across the Kenworth range ranges from 5,560 to 16,580 kg; the CONSTRUCT W 900 sits in the lower part of that range with 9,770 kg. Its immediate neighbours are the W900L below it with 9,420 kg and the W900A above it with 9,835 kg. 71 Kenworth models across 39 series are on record. The model is listed under Trucks over 7.5 t. 10 verified figures from 1 source are on file.

Kenworth – other models: the collective page of trucks outside the named ranges, from the long-nose W900 to the T370, six- and eight-cylinder engines of 6.7 to 14.6 litres displacement, 257 to 356 kW

This page gathers Kenworth trucks the register could not assign to a named range – among them the W900, the marque's long-nose classic, and the medium-duty T370. Kenworth, founded in 1923 in the US state of Washington and part of the commercial-vehicle group PACCAR since 1945, still builds its heavy trucks in Renton near Seattle and in Chillicothe, Ohio. The W900, with its long bonnet and upright grille, has been the flagship of American long-haul trucks since the 1960s, made famous by numerous films and haulier fleets; the T370 is a shorter-bonneted chassis for distribution and construction-site transport.

Read on 3 more paragraphs

The register lists here 10 versions with 257 to 356 kW from six- to eight-cylinder engines of 6,700 to 14,600 cm³, unladen weights from 5,560 to 11,500 kg, gross weights from 11,900 to 23,144 kg, lengths from 5,800 to 11,000 mm and widths from 2,450 to 2,600 mm.

Kenworth ranks alongside Peterbilt, also a PACCAR brand, and Freightliner among the best-known truck makers of North America; the W900 remains sought after among long-haul drivers and fleet operators for its individual configurability despite its age, while ranges such as the T370 are tailored to municipal and construction-site use.

On these vehicles, rust on the frame and cab suspension, the condition of the engine and gearbox (often Cummins or PACCAR engines with manual Eaton-Fuller gearboxes), the condition of the brake system and, on tractor units, the fifth wheel count; parts run through the Kenworth and PACCAR dealer network.

Sources: Kennwerte der Modelle Kenworth (weitere Modelle), Kenworth (Hersteller), Traficom (Finnland)

Technical data

Engine

Cylinders6correct
Displacement14,600 cm³correct

Dimensions and weights

Length9,300 mmcorrect
Width2,530 mmcorrect
Wheelbase7,660 mmcorrect
Unladen weight9,770 kgcorrect
Gross vehicle weight21,771 kgcorrect

Drivetrain and chassis

Wheels6correct

Frequently asked questions

How much does the Kenworth CONSTRUCT W 900 weigh?

The unladen weight is 9,770 kg.

What is the gross vehicle weight of the Kenworth CONSTRUCT W 900?

21,771 kg.

What engine does the Kenworth CONSTRUCT W 900 have?

6 cylinders, 14,600 cm³ displacement.

What are the dimensions of the Kenworth CONSTRUCT W 900?

9,300 mm × 2,530 mm.

When was the Kenworth CONSTRUCT W 900 built?

Production years: 1999.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
