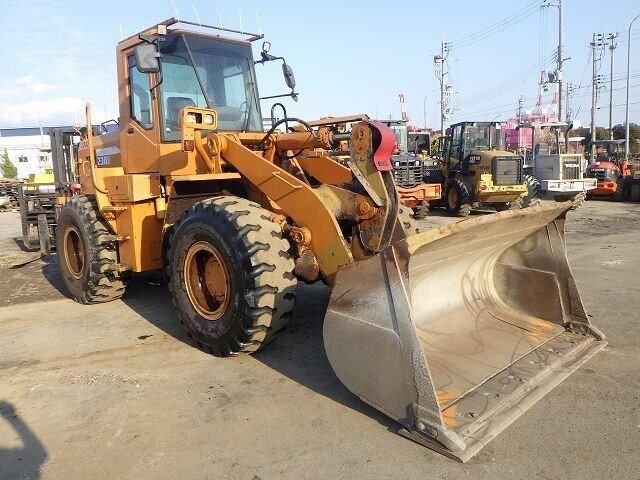

Kawasaki 90ZIV-2

Series: Kawasaki Wheel Loader

Source: https://www.truck1.eu/construction-machinery/wheel-loaders/k

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 90ZIV-2 from Kawasaki is part of the Kawasaki Wheel Loader series. The engine delivers 190.9 kW, has 6 cylinders, with a displacement of 10,815.5 cm³. Torque is 1,128 Nm. Rated speed is 2,100 rpm. The unladen weight is 21,890 kg. The wheelbase measures 3,401.6 mm. Ground clearance is 515.1 mm. The tank holds 320.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 142 l/min. The hydraulic tank holds 270.3 litres. The cooling system holds 56 litres. The electrical system runs on 24 V. The engine fitted is the M11-C. Tyre size: 26,5x25-20PR (L-3). The Kawasaki Wheel Loader series covers 54 models. Rated output within it ranges from 64.9 to 536.9 kW; the 90ZIV-2 sits in the lower part of that range with 190.9 kW. Its immediate neighbours are the 85ZV below it with 175.2 kW and the 90ZV-2 above it with 202.1 kW. 58 Kawasaki models across 2 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelM11-Ccorrect
Power190.9 kWcorrect
Rated speed2,100 rpmcorrect
Torque1,128correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement10,815.5 cm³correct
Aspirationturbocharged & after cooledcorrect
Coolant capacity56 lcorrect

Dimensions and weights

Wheelbase3,401.6correct
Ground clearance515.1correct
Unladen weight21,890 kgcorrect

Drivetrain and chassis

Gearbox typefull powershift transmissioncorrect
Forward gears4correct
Reverse gears4correct
Tyre size26.5x25-20PR (L-3)correct
System voltage24 Vcorrect

Working data

Pump flow142 l/mincorrect
Hydraulic oil capacity270.3 lcorrect
Fuel tank capacity320.2 lcorrect

Other data

Height3,535.7correct

Where this model stands

Power-to-weight ratio: 8.7 kW/t (191 kW / 21.9 t)

Stronger than 83% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.
