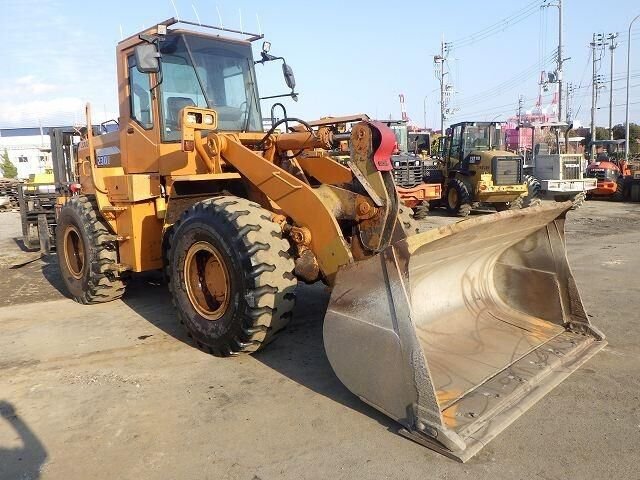

Kawasaki 70ZIV

Series: Kawasaki Wheel Loader

Source: https://www.truck1.eu/construction-machinery/wheel-loaders/k

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 70ZIV, Kawasaki offers a model from the Kawasaki Wheel Loader series. The engine delivers 119.3 kW, has 6 cylinders, with a displacement of 5,883 cm³. Torque is 664.4 Nm. Rated speed is 2,400 rpm. The unladen weight is 12,940 kg. The wheelbase measures 3,051 mm. Ground clearance is 405.4 mm. The tank holds 220.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 49.2 l/min. The hydraulic tank holds 170.3 litres. The cooling system holds 37.1 litres. The electrical system runs on 24 V. The engine fitted is the B5,9-C. Tyre size: 20,5x25-12PR (L-2). The Kawasaki Wheel Loader series covers 54 models. Rated output within it ranges from 64.9 to 536.9 kW; the 70ZIV sits at the bottom of that range with 119.3 kW. Its immediate neighbours are the 70ZIII below it with 117.8 kW and the 80ZII above it with 123 kW. 58 Kawasaki models across 2 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelB5.9-Ccorrect
Power119.3 kWcorrect
Rated speed2,400 rpmcorrect
Torque664.4correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement5,883 cm³correct
Aspirationturbocharged & after cooledcorrect
Coolant capacity37.1 lcorrect

Dimensions and weights

Wheelbase3,051correct
Ground clearance405.4correct
Unladen weight12,940 kgcorrect

Drivetrain and chassis

Gearbox typefull powershift transmissioncorrect
Forward gears4correct
Reverse gears4correct
Tyre size20.5x25-12PR (L-2)correct
System voltage24 Vcorrect

Working data

Pump flow49.2 l/mincorrect
Hydraulic oil capacity170.3 lcorrect
Fuel tank capacity220.3 lcorrect

Other data

Height3,325.4correct

Where this model stands

Power-to-weight ratio: 9.2 kW/t (119 kW / 12.9 t)

Stronger than 61% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kawasaki 70ZIV have?

The Kawasaki 70ZIV delivers 119 kW.

How much does the Kawasaki 70ZIV weigh?

The unladen weight is 12,940 kg.

What engine does the Kawasaki 70ZIV have?

6 cylinders, 5,883 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
