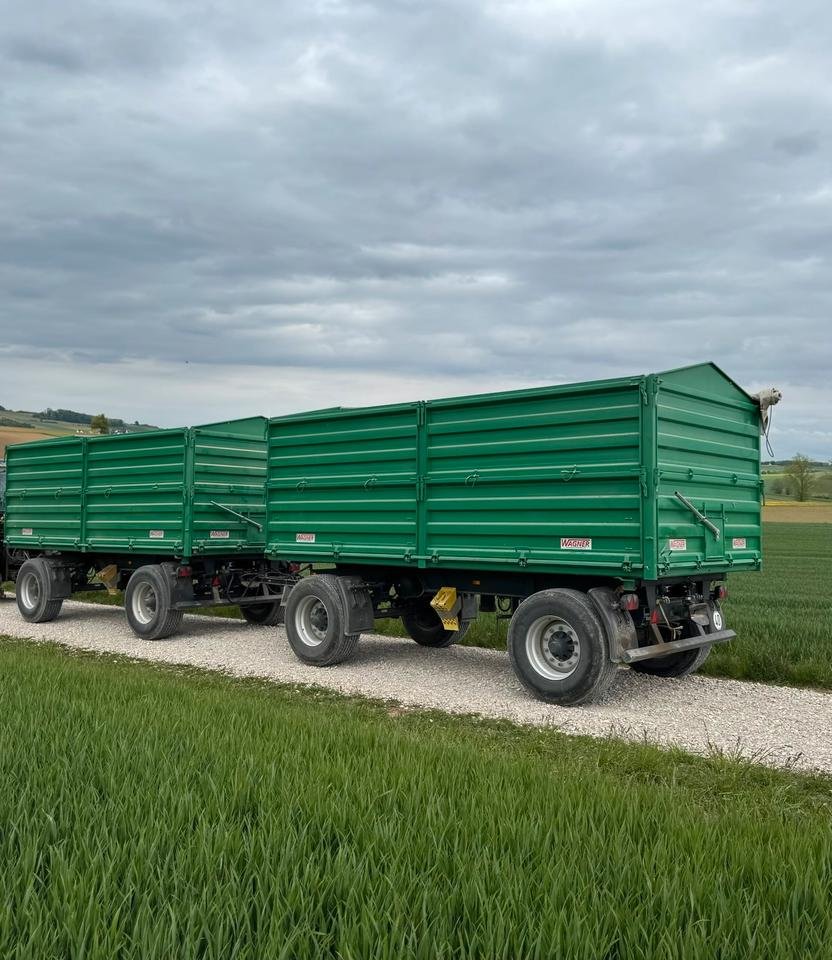

Josef Jais DAZ / 18 / PCFS – specifications
Built: 2008 · Series: Other models
The DAZ / 18 / PCFS comes from Josef Jais. Production: 2008. The vehicle is 9,400 mm long and 2,550 mm wide. The unladen weight is 4,430 kg. The wheelbase measures 5,200 mm. Top speed is 100 km/h. The gross vehicle weight is 18,000 kg. Unladen weight within this group ranges from 85 to 84,800 kg; the DAZ / 18 / PCFS sits at the bottom of that range with 4,430 kg. Its immediate neighbours are the 3 PPC 122 below it with 4,425 kg and the HMA 20.72 above it with 4,436 kg. Gross vehicle weight within this group ranges from 470 to 722,500 kg; here the DAZ / 18 / PCFS sits at the bottom of that range with 18,000 kg.
Data for the version built 2008 · Data origin: Official register · sources
More machines from model year 2008
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Josef Jais DAZ/18/PCFS: a drawbar trailer in EU class O4 with a 18,000 kg gross weight, a 9,400 mm length and a 13,570 kg payload for commercial haulage
With a gross weight of 18,000 kg, the DAZ/18/PCFS sits in EU trailer class O4, the heavy trailers above 10 tonnes. Vehicles in this weight class are almost always built as a classic drawbar trailer with a rigid or steered towing eye, running in commercial haulage behind lorries and articulated tractor units.
Read on 3 more paragraphs
Empty, the trailer weighs 4,430 kg, against a permitted gross weight of 18,000 kg, giving a payload of 13,570 kg - a high share that points to a relatively light body on a load-rated chassis. At 9,400 mm long, 2,550 mm wide and with a 5,200 mm wheelbase, it offers a long, well-used loading area.
From trailer class O3 upward, a compressed-air braking system is mandatory, and it comes as standard at 18,000 kg; the simple overrun brake fitted to smaller O1 and O2 trailers would not be sufficient here. Driving such a combination requires a category CE licence in most EU states, since the permitted combined weight clearly exceeds the limits of category C.
Buying a used trailer of this weight class, check the chassis first: cracks or through-corrosion on the main rails and the drawbar are the most common reason for failing a roadworthiness test. The braking system should be checked for leaks and even braking action across all wheels, and the axle bearings for play. With a payload of 13,570 kg available, it is also worth assessing the condition of the load bed and the lashing points.
Sources: SpecCodex-Register: Kennwerte des Modells Josef Jais DAZ/18/PCFS, Zulassungsdaten RDW (Niederlande)
Technical data
Dimensions and weights
| Length | 9,400 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Coupling-to-axle distance | 5,200 mmcorrect |
| Unladen weight | 4,430 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
