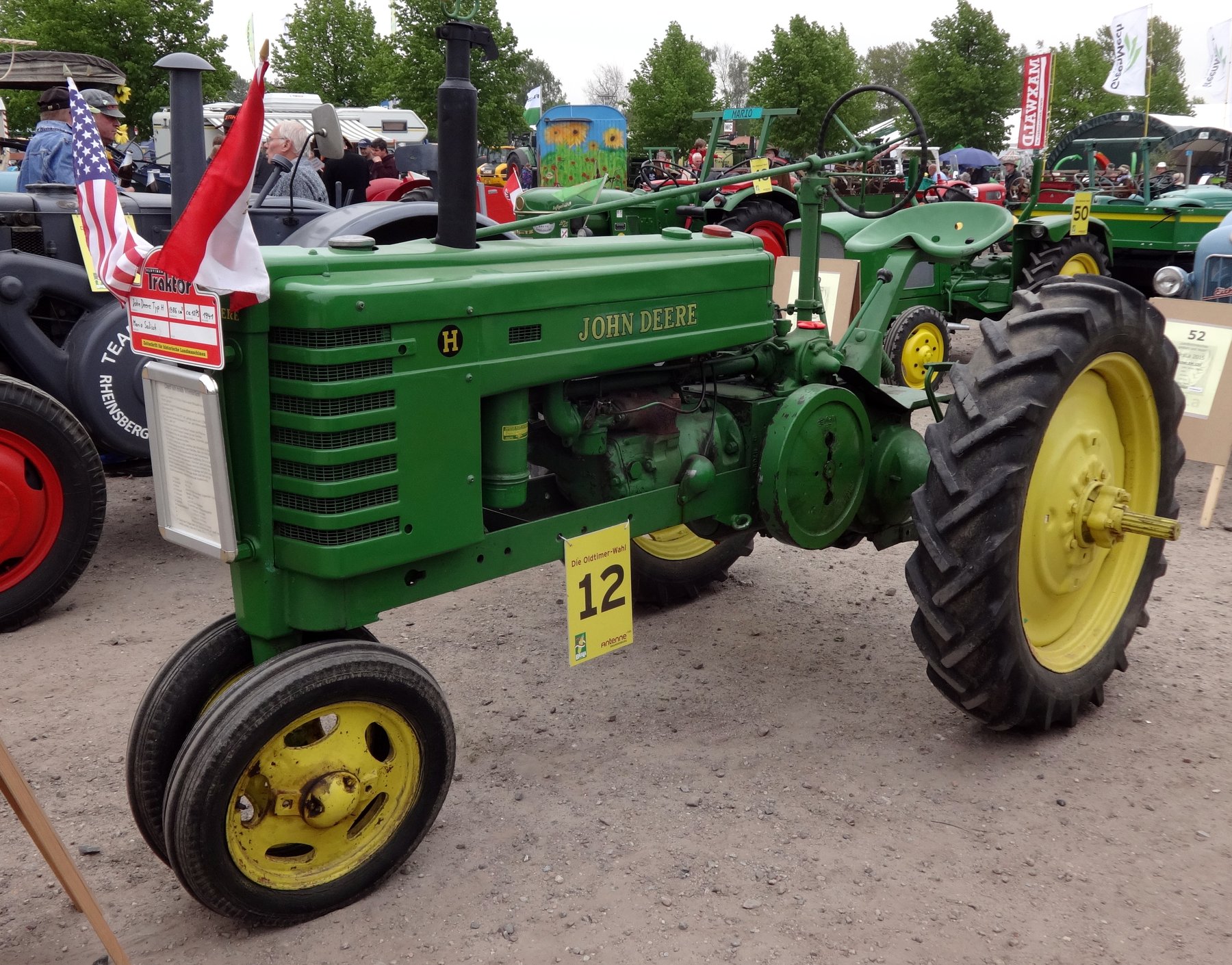

John Deere H
Series: Other models
The John Deere H is a tractor from the John Deere range. It is equipped with a two‑cylinder engine with a displacement of 1,634 cm³ and a rated power of 15 hp (11 kW) at a nominal speed of 1,400 rpm. Its dimensions are 2,858 mm in length, 2,013 mm in width and 1,334 mm in height, and it has a dry weight of 1,377 kg.
With a 3‑forward‑1‑reverse gearbox the H provides three forward gears and one reverse gear, allowing a top speed of 10 km/h. The compact size and relatively low weight result in low ground pressure, which is advantageous on sensitive soils. A power output of 15 hp is sufficient for light pulling tasks such as hauling small implements or operating on fields with gentle slopes.
The John Deere H is suited for typical small‑tractor duties, for example mowing small areas, transporting light loads or driving light field equipment. Its simple gearbox characteristics and moderate top speed make it appropriate for work where maneuverability and minimal ground impact are required.
John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW
This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.
Read on 3 more paragraphs
The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.
John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.
On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.
Sources: SpecCodex register, model data: John Deere (weitere Modelle), John Deere (manufacturer)
Technical data
Engine
| Power | 15 hp (11 kW)correct |
|---|---|
| Rated speed | 1,400 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,634 cm³correct |
Dimensions and weights
| Length | 2,858 mmcorrect |
|---|---|
| Width | 2,013 mmcorrect |
| Height | 1,334 mmcorrect |
| Unladen weight | 1,377 kgcorrect |
Drivetrain and chassis
| Gearbox | 3 V/1 Rcorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 1correct |
| Top speed | 10 km/hcorrect |
Where this model stands
Power-to-weight ratio: 8 kW/t (11 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 3% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere H have?
The John Deere H delivers 15 hp.
How much does the John Deere H weigh?
The unladen weight is 1,377 kg.
What engine does the John Deere H have?
2 cylinders, 1,634 cm³ displacement.
How fast does the John Deere H go?
Top speed is 10 km/h.
What are the dimensions of the John Deere H?
2,858 mm × 2,013 mm × 1,334 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
