John Deere 8650 – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

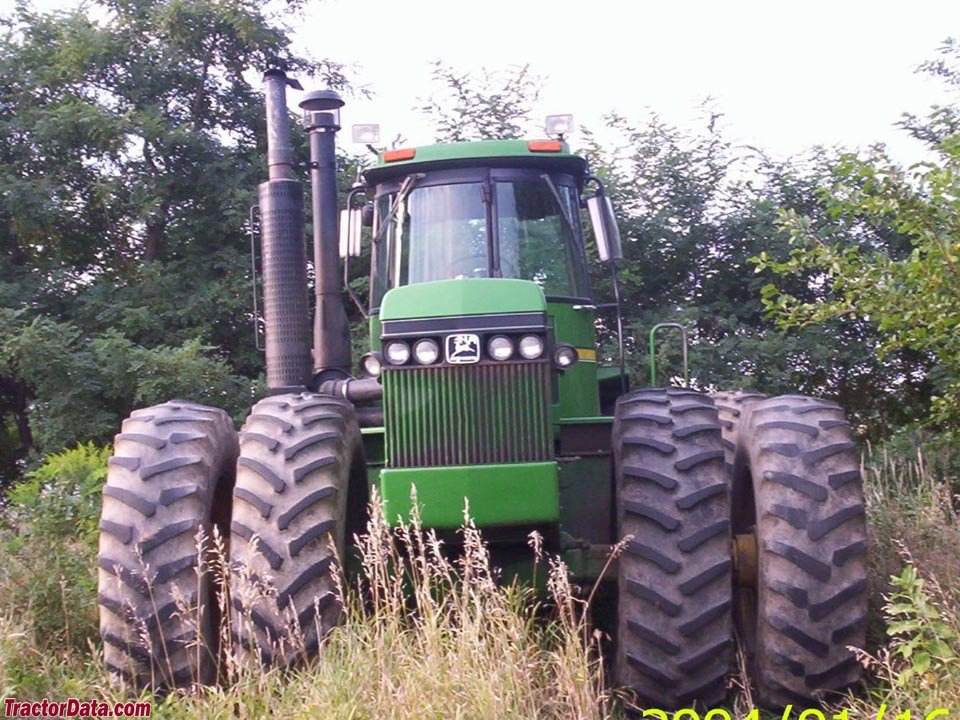

The John Deere 8650 is a heavy-duty four-wheel-drive tractor manufactured in the USA. It belongs to the 8650 engine series and represents a class of machines designed for demanding agricultural tasks. With a curb weight of 12,374 kg and a length of 5,870 mm, this tractor is positioned as a substantial piece of field equipment. Its design, with a width of 3,010 mm and a height of 3,910 mm, requires special attention to dimensions during storage and transport on public roads.
The tractor is powered by a water-cooled six-cylinder diesel engine with a displacement of 10,141 cm³, delivering an output of 238 hp (177 kW). This engine configuration enables the use of large implements, with power transmission handled by a gearbox featuring 16 forward gears and 6 reverse gears. The maximum speed of 35 km/h is designed for field work and short road transfers. The large fuel tank capacity of 810 l ensures long operating times without frequent refueling, supporting productivity during large-scale operations. The wheelbase of 3,180 mm and the track width of 1,820 mm contribute to stability, while the four-wheel drive ensures traction on various surfaces.
Within the available data, the 8650 represents a distinct model whose technical design is optimized for high drawbar pull and continuous operation. The Category III hitch allows for the attachment of heavy implements, increasing operational versatility. The overall gearing of the LL group, along with the specific gear configurations of the l, m, and s groups, enables precise adjustment of speed to suit specific tillage requirements. This configuration makes the tractor a central element in operations that must work with heavy implements and large areas.
John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW
This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.
Read on 3 more paragraphs
The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.
John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.
On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.
Sources: SpecCodex register, model data: John Deere (weitere Modelle), John Deere (manufacturer)
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 238 hp (177 kW)correct |
| Displacement | 10.141 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Width | 3,010 mmcorrect |
|---|---|
| Height | 3,910 mmcorrect |
| Wheelbase | 3,180 mmcorrect |
Drivetrain and chassis
| Drive | four-wheel driveWDcorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 6correct |
| Top speed | 35 km/hcorrect |
Working data
| Fuel tank capacity | 810 lcorrect |
|---|
Origin and approval
| Plant | USAcorrect |
|---|---|
| Type | 6.619 ARcorrect |
| Series/Model | 8650 Motorcorrect |
Other data
| Cylinders | 6 Leistungcorrect |
|---|---|
| Gesamtübersetzung | Gruppe-LLcorrect |
| Gruppe-l | 1.Gangcorrect |
| Gruppe-m | 1.Gangcorrect |
| Gruppe-s | 1.Gangcorrect |
| Length | 5.870 mmcorrect |
| Linkage category | Cat IIIcorrect |
| Rückwärtsgänge | Gruppe-LLcorrect |
| Track width | 1.820 mmcorrect |
| Unladen weight | 12.374 kgcorrect |
Frequently asked questions
How much power does the John Deere 8650 have?
The John Deere 8650 delivers 238 hp.
How fast does the John Deere 8650 go?
Top speed is 35 km/h.
What are the dimensions of the John Deere 8650?
3,010 mm × 3,910 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
