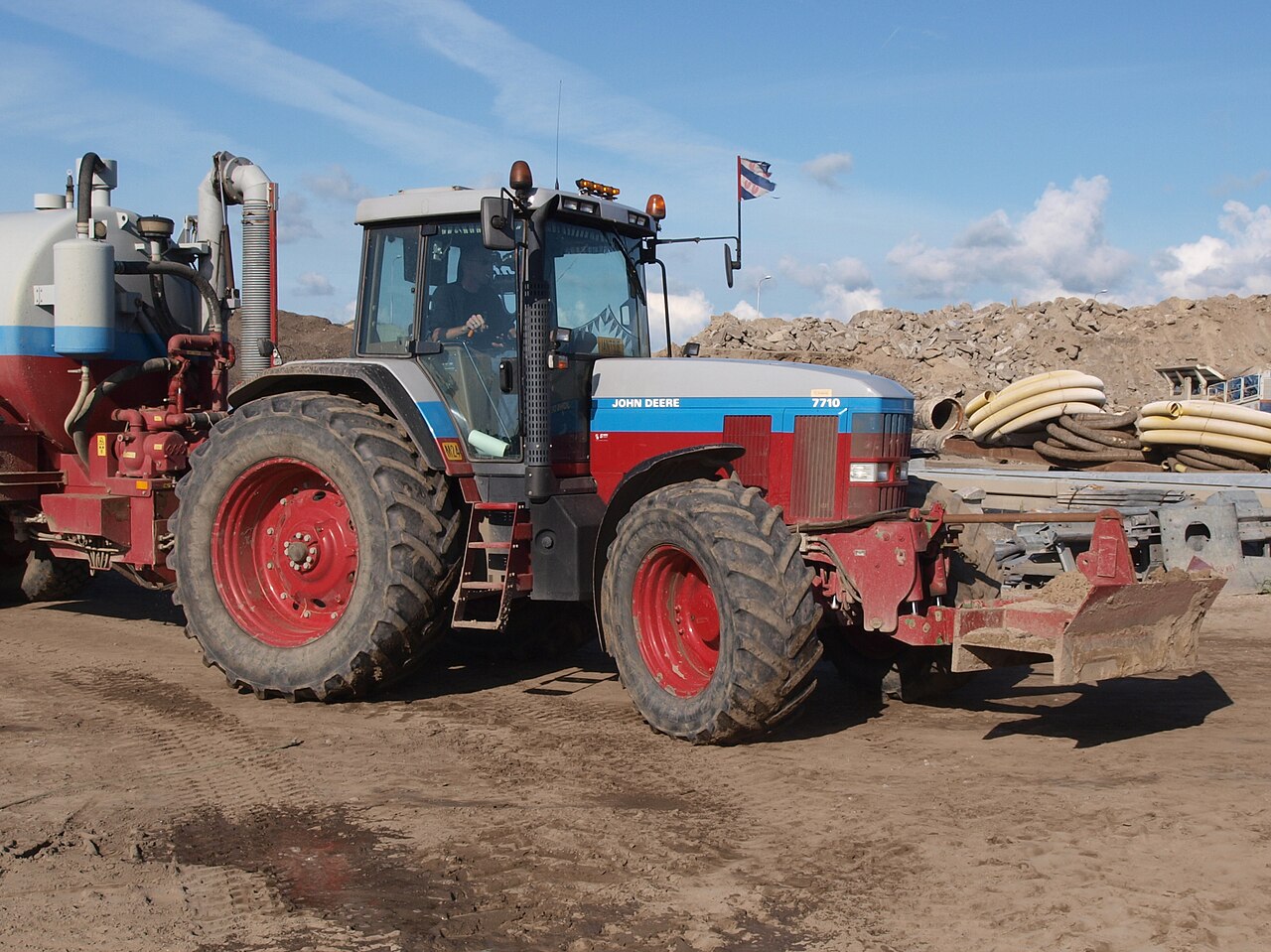

John Deere 7710
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 7710 belongs to the Tractors group and features a 6‑cylinder engine with a displacement of 8,134 cm³. It has a rated speed of 2,100 U/min and a maximum torque of 674 Nm. The transmission is offered in several versions, such as 20V/20R, 19V/7R and 16V/16R. Its dimensions are 4,755 mm long, 2,750 mm wide and 3,023 mm high, and the fuel tank holds 270.6 l. The drawbar speed ranges from 540 U/min to 1,000 U/min and the lift category is Cat II/III.
A rated speed of 2,100 U/min combined with 674 Nm of torque provides strong acceleration and the ability to pull heavy loads, which is essential for field work with large implements. The large 270.6 l tank reduces refueling stops during long operations. Multiple transmission options allow adaptation to various tasks, from low speeds for precise field work to higher speeds for transport duties.
With its size and power, the 7710 is suited for medium to large agricultural operations that require both heavy field work and transport capabilities. Typical uses include pulling plows, seeders and other heavy implements as well as moving harvested material over longer distances within the farm.
John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW
This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.
Read on 3 more paragraphs
The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.
John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.
On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.
Sources: SpecCodex register, model data: John Deere (weitere Modelle), John Deere (manufacturer)
Technical data
Engine
| Rated speed | 2,100 rpmcorrect |
|---|---|
| Torque | 674 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 8,134 cm³correct |
Dimensions and weights
| Length | 4,755 mmcorrect |
|---|---|
| Width | 2,750 mmcorrect |
| Height | 3,023 mmcorrect |
Drivetrain and chassis
| Gearbox | 20V/20R or 19V/7R and 16V/16Rcorrect |
|---|
Working data
| Fuel tank capacity | 270.6 lcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
What engine does the John Deere 7710 have?
6 cylinders, 8,134 cm³ displacement.
What are the dimensions of the John Deere 7710?
4,755 mm × 2,750 mm × 3,023 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
