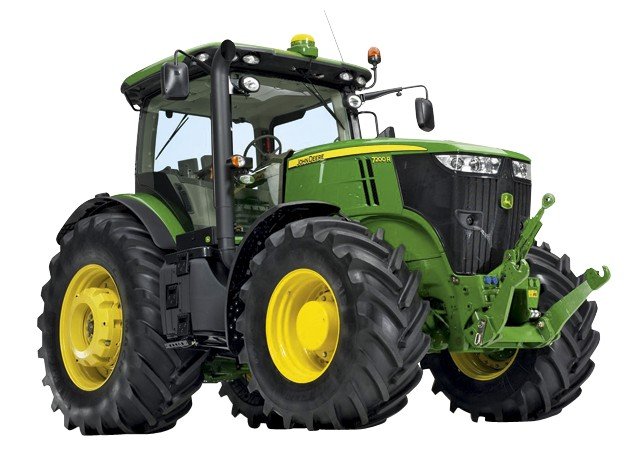

John Deere 7200 R
Built: 2011 · Series: Other models
← Predecessor: 7630
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW
This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.
Read on 3 more paragraphs
The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.
John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.
On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.
Sources: SpecCodex register, model data: John Deere (weitere Modelle), John Deere (manufacturer)
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Engine model | PowerTech PSXcorrect |
| Fuel | dieselcorrect |
| Power | 200 hp (149 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 414 cu incorrect |
| Bore | 4.19 in (106.4 mm)correct |
| Stroke | 5.00 in (127 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 119.4 in (2WD); 115.2 in (MFWD)correct |
|---|---|
| Unladen weight | 18, 104 to 26, 335 lbscorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|
Working data
| Lifting capacity | 5,443 kgcorrect |
|---|---|
| Lifting capacity | 12000 lbs (5443.1 kg)correct |
| Fuel tank capacity | 133 galcorrect |
Origin and approval
| Plant | Waterloo, Iowa, USAcorrect |
|---|
Other data
| Linkage category | Cat III/III Ncorrect |
|---|---|
| PTO speed | 540/1000correct |
| Predecessor | John Deere 7630correct |
More machines with this engine (John Deere PowerTech PSX, 23)
Frequently asked questions
How much power does the John Deere 7200 R have?
The John Deere 7200 R delivers 200 hp.
What engine does the John Deere 7200 R have?
6 cylinders, Diesel.
How much does the rear linkage of the John Deere 7200 R lift?
The rear linkage lifts 5,443 kg.
When was the John Deere 7200 R built?
Production years: 2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
