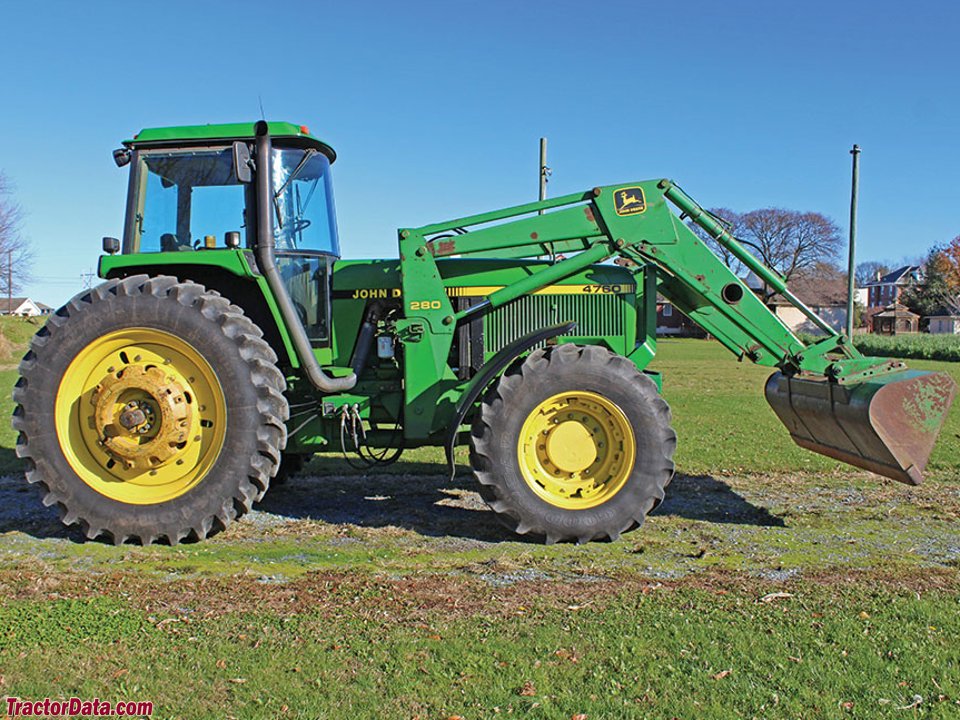

John Deere 4760
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere tractor model 4760 belongs to the tractor series of the manufacturer and was built during the specified production period. It is equipped with a 6‑cylinder engine with a displacement of 7 634 cm³ delivering 190 hp (139.8 kW) at a rated speed of 2 200 rpm. Dimensions are 5 420 mm in length, 2 997 mm in width and 3 020 mm in height. The transmission is offered as a 15‑speed front‑wheel drive with 4 reverse gears or a 16‑speed version with 6 reverse gears, and the top speed reaches 30 km/h. The fuel tank holds 386 l and the machine falls into the Cat III lift category.
A power output of 190 hp enables pulling heavy implements and handling demanding field tasks, while the wide gear range allows fine adjustment to varying working conditions. The large engine displacement provides strong torque, beneficial for plowing and seed transport. The substantial 386 l tank capacity reduces refueling stops during long operations, and the maximum speed of 30 km/h permits swift travel between fields.
As a mid‑size tractor, the 4760 is suited for jobs that require high drawbar pull and extended operating periods, such as cultivating corn, wheat or rapeseed, heavy soil preparation and transport duties on larger farms.
John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW
This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.
Read on 3 more paragraphs
The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.
John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.
On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.
Sources: SpecCodex register, model data: John Deere (weitere Modelle), John Deere (manufacturer)
Technical data
Engine
| Power | 190 hp (139.8 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,634 cm³correct |
Dimensions and weights
| Length | 5,420 mmcorrect |
|---|---|
| Width | 2,997 mmcorrect |
| Height | 3,020 mmcorrect |
Drivetrain and chassis
| Gearbox | 15V/4R or 16V/6Rcorrect |
|---|---|
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 386 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Frequently asked questions
How much power does the John Deere 4760 have?
The John Deere 4760 delivers 190 hp.
What engine does the John Deere 4760 have?
6 cylinders, 7,634 cm³ displacement.
How fast does the John Deere 4760 go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 4760?
5,420 mm × 2,997 mm × 3,020 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
