Start › Non-road diesel engines › John Deere › 4045H

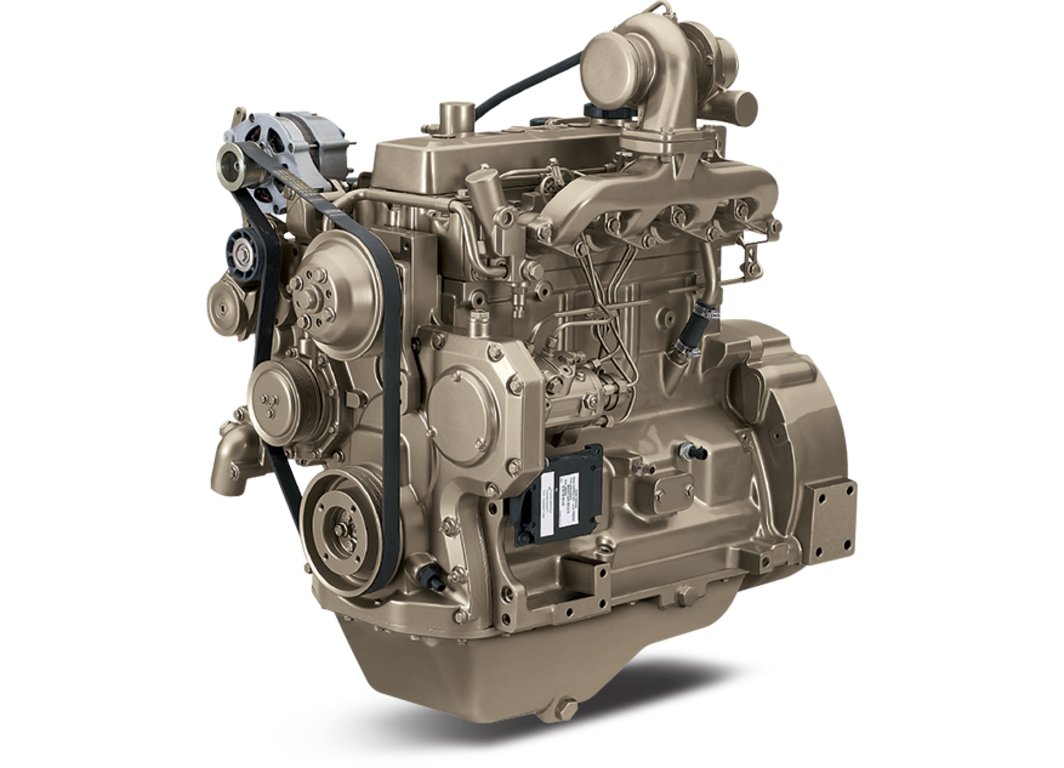

John Deere 4045H

Built: 2011-2013 · Series: Other models

More machines from model year 2011

Source: https://www.deere.ca/fr/moteurs-industriels/ deere.ca

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 4045H comes from John Deere. Production: 2011-2013. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 74 kW. The engine is turbocharged. The engine meets emissions stage Tier 3. Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a fixed-geometry turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the John Deere range ranges from 31 to 522 kW; the 4045H sits at the bottom of that range with 74 kW. Its immediate neighbours are the 4024H below it with 60 kW and the 4045 above it with 102 kW. 2153 John Deere models across 96 series are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine code4045HF280Acorrect
Engine familyBJDXL04.5144correct
Engine familiesBJDXL04.5144correct
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output74 kWcorrect
Power band56<=kW<75correct
Rated speed2,200 rpmcorrect
Maximum torque400 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore106.5 mmcorrect
Stroke127 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeFixed Turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 3correct

Origin and approval

Version4045HF280Acorrect
Built from2011correct
Built to2011correct
Model year from2011correct
Model year to2013correct

Frequently asked questions

How much power does the John Deere 4045H have?

The John Deere 4045H delivers 74 kW.

When was the John Deere 4045H built?

Production years: 2011-2013.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
