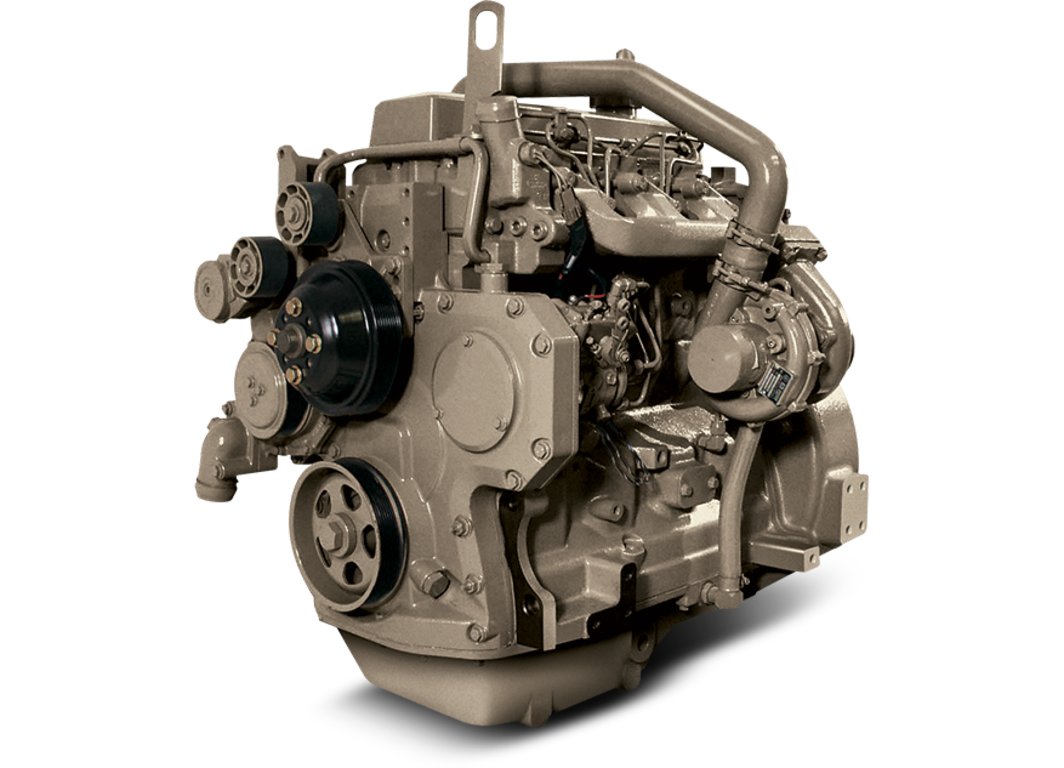

John Deere 3029T
Built: 2011-2014 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere – other nonroad diesel engines: the collective page of the PowerTech engine family outside the named ranges, model years 2011 to 2026, T and H turbocharged versions, 31 to 522 kW
John Deere builds its diesel engines for farm and construction machinery under the PowerTech family; alongside the plain model number, such as 4045, a suffix letter marks the forced-induction type: T denotes the turbocharged version, H the turbocharged and charge-air-cooled version at the highest output step of the given frame size. This page gathers the engines the register could not assign to a named range, with model years from 2011 to 2026.
Read on 3 more paragraphs
The register lists here 19 versions with 31 to 522 kW rated output at 1,500 to 2,800 rpm, from three- to six-cylinders with 86 to 148 mm bore and 105 to 174 mm stroke, torques from 183 to 3,317 Nm. Among the emission stages, Tier 3 leads with 8 versions ahead of Interim Tier 4 with 6 and Tier 4 (Final or Phase-in) with 5; as turbocharger type, the fixed turbocharger prevails with 11 versions.
With T and H versions of the same base frame size, John Deere covers different output steps for the same machine, from compact loaders through combine harvesters to large tractors, allowing a finer gradation of the power range within one series than a single version per frame size would.
On a used purchase, operating hours and the service history of the injection system count, on the T and H versions especially the condition of the respective turbocharger and charge-air cooler, the tightness of the charge-air ducting, and on the newer Tier 4 versions the function of the exhaust aftertreatment matter; the cooling system and parts supply run through the Deere dealer network.
Sources: Kennwerte der Modelle John Deere (weitere Nonroad-Dieselmotoren), John Deere (Hersteller)
Technical data
Engine
| Engine code | 3029TF270Dcorrect |
|---|---|
| Engine family | CJDXL02.9139; BJDXL02.9139correct |
| Engine families | CJDXL02.9139; BJDXL02.9139correct |
| Fuel | 300-500 ppm Low Sulfur Dieselcorrect |
| Rated output | 48 kWcorrect |
| Power band | 37<=kW<56correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 255 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 106.5 mmcorrect |
| Stroke | 110 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Fixed Turbochargercorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | 3029TF270Dcorrect |
|---|---|
| Built from | 2011correct |
| Built to | 2012correct |
| Model year from | 2011correct |
| Model year to | 2014correct |
Frequently asked questions
How much power does the John Deere 3029T have?
The John Deere 3029T delivers 48 kW.
When was the John Deere 3029T built?
Production years: 2011-2014.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
