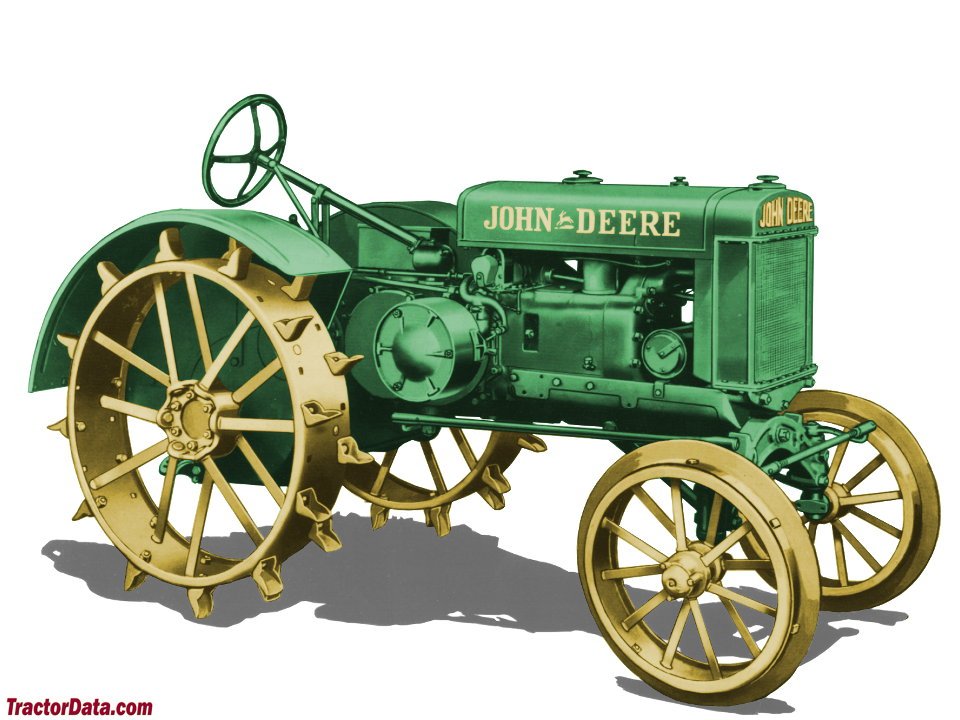

John Deere MODELL-C
Built: 08/1927–1928 · Series: LETTERS-SERIE
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere Letters series – the A to H range from Waterloo, Iowa: two-cylinder tractors from 1923 to 1960, here with the C, L/LA and Y models, 10.7 to 18.6 kW, petrol and petrol/kerosene operation
In 1918 John Deere took over the Waterloo Gasoline Engine Company in Iowa and from 1923, with the Model D, launched its first tractor range under its own name; the following letters A, B, G, H, L, M and R ordered the size classes of the so-called Letters series until 1960, when the new generation with four- and six-cylinder engines replaced it. The hallmark of the range was the horizontal two-cylinder engine, whose distinctive exhaust beat earned the nickname 'Johnny Popper'. This page carries the Model C as an early version ahead of the later General Purpose range, the compact Model L/LA and the small Model Y, from which the L range descended.
Read on 3 more paragraphs
The register lists here 3 versions with 10.7 to 18.6 kW output at 950 to 1,850 rpm, from horizontal two-cylinders of 1,261 to 5,110 cm³. Unladen weights range from 609 to 1,935 kg, lengths from 2,311 to 2,845 mm, widths from 1,194 to 1,524 mm and heights from 1,270 to 1,524 mm; two of the three models ran on petrol, one on a dual-fuel setup with petrol for starting and kerosene for continuous running.
The Letters series made John Deere one of North America's leading tractor brands through the 1920s to 1950s; the simple, rugged two-cylinder with its distinctive engine note became a brand hallmark that still delights collectors and vintage-tractor enthusiasts today.
On a used purchase, the condition of cylinder liners and crankshaft counts, the tightness of the fuel changeover and carburettor on the petrol/kerosene models, the pulley and clutch, and rust on sheet metal and the radiator; parts for the Letters series now run mainly through vintage-tractor specialists and Deere collector clubs.
Sources: SpecCodex register, model data: John Deere Letters-Serie, John Deere (manufacturer)
Technical data
Engine
| Fuel | Kerosin/Benzincorrect |
|---|---|
| Power | 25.3 hp (18.6 kW)correct |
| Rated speed | 950 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 5,110 cm³correct |
| Bore | 146.1 mmcorrect |
| Stroke | 152.4 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,845 mmcorrect |
|---|---|
| Width | 1,524 mmcorrect |
| Height | 1,410 mmcorrect |
| Unladen weight | 1,935 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3 V/1 Rcorrect |
| Forward gears | 3correct |
| Reverse gears | 1correct |
| Front tyres | 24 x 6correct |
| Rear tyres | 42.75 x 10correct |
| Top speed | 7 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | ca. 92correct |
Where this model stands
Power-to-weight ratio: 9.6 kW/t (19 kW / 1.9 t)
Power class: Compact (< 40 hp)
Stronger than 13% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere MODELL-C have?
The John Deere MODELL-C delivers 25.3 hp.
How much does the John Deere MODELL-C weigh?
The unladen weight is 1,935 kg.
What engine does the John Deere MODELL-C have?
2 cylinders, 5,110 cm³ displacement, Kerosin/Benzin.
How fast does the John Deere MODELL-C go?
Top speed is 7 km/h.
What are the dimensions of the John Deere MODELL-C?
2,845 mm × 1,524 mm × 1,410 mm.
When was the John Deere MODELL-C built?
Production years: 08/1927–1928.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
