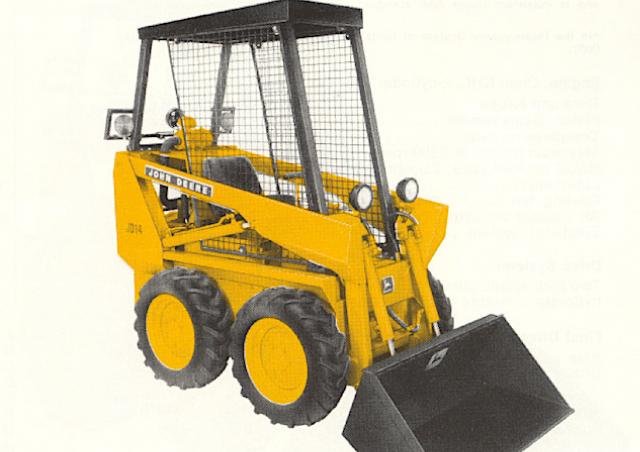

John Deere JD14

Series: John Deere Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere Skid Steer Loader series from John Deere includes the JD14. The engine delivers 18.6 kW, has 2 cylinders, with a displacement of 983.2 cm³. Rated speed is 3,600 rpm. Ground clearance is 184.1 mm. Top speed is 8 km/h. The tank holds 41.6 litres. The pump delivers 30.3 l/min. The hydraulic tank holds 56.8 litres. Working pressure is 103.4 bar. The electrical system runs on 12 V. Tyre size: 8,50-27-15. 4-ply-rating. The John Deere Skid Steer Loader series covers 29 models. Rated output within it ranges from 12.7 to 63.4 kW; the JD14 sits at the bottom of that range with 18.6 kW. Its immediate neighbours are the 90 below it with 17.2 kW and the 4475 above it with 23.1 kW. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 12 verified figures from 1 source are on file.

Technical data

Engine

Power18.6 kWcorrect
Rated speed3,600 rpmcorrect
Cylinders2correct
Displacement983.2 cm³correct

Dimensions and weights

Ground clearance184.1correct

Drivetrain and chassis

Tyre size8.50-27-15, 4-ply-ratingcorrect
Top speed8 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow30.3 l/mincorrect
Hydraulic oil capacity56.8 lcorrect
Hydraulic pressure103.4correct
Fuel tank capacity41.6 lcorrect

Frequently asked questions

How much power does the John Deere JD14 have?

The John Deere JD14 delivers 18.6 kW.

What engine does the John Deere JD14 have?

2 cylinders, 983 cm³ displacement.

How fast does the John Deere JD14 go?

Top speed is 8 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
