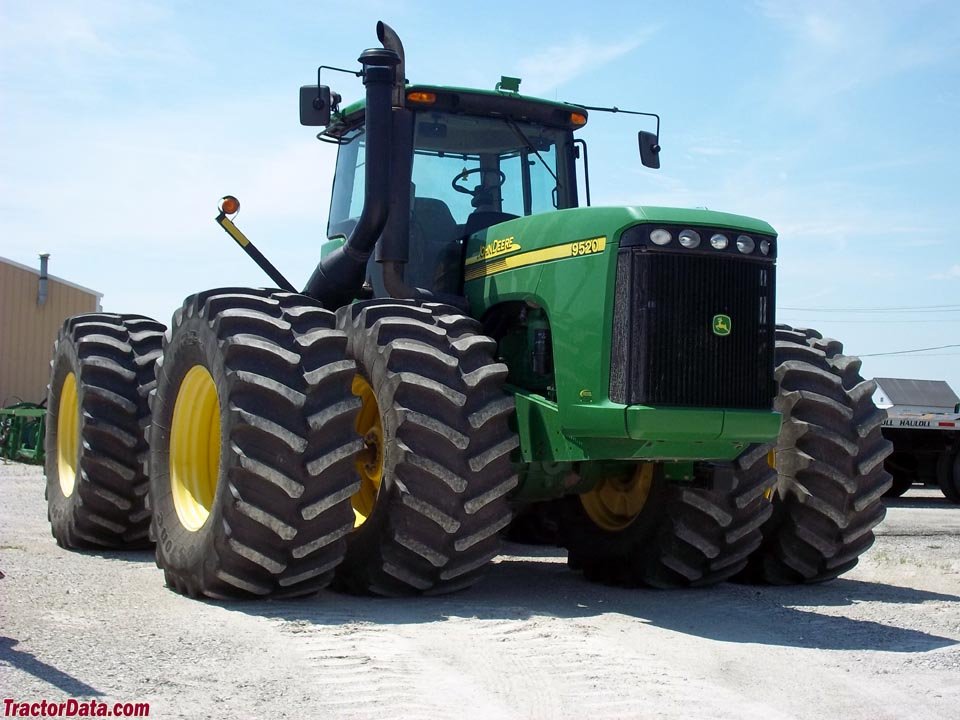

John Deere 9520 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the John Deere 9520 belongs to the John Deere 4WD Tractor series. 456 hp (335.6 kW) is what the six-cylinder engine gets out of 12.6 litres. Rated power is reached at 2,100 rpm.
Unladen weight is 16,370 kg.
Within the range, rated power spans from 50.7 to 568 hp; with 456 hp, the 9520 sits in the upper third. Directly alongside are the 9530 Scraper with 431 hp below and the 9530 with 482 hp above.
Technical data
Engine
| Power | 456.2 hp (335.6 kW)correct |
|---|---|
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 12,552.5 cm³correct |
| Aspiration | Turbocharged and air-to-air aftercooledcorrect |
Dimensions and weights
| Unladen weight | 16,370 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Tyre size | 800/70 R38correct |
Working data
| Pump flow | 113.6 l/mincorrect |
|---|---|
| Hydraulic pressure | 199.9correct |
| Fuel tank capacity | 1,022.1 lcorrect |
Where this model stands
Power-to-weight ratio: 20.5 kW/t (336 kW / 16.4 t)
Power class: Heavy (> 180 hp)
Stronger than 99% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 9520 have?
The John Deere 9520 delivers 456 hp.
How much does the John Deere 9520 weigh?
The unladen weight is 16,370 kg.
What engine does the John Deere 9520 have?
6 cylinders, 12,552 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
