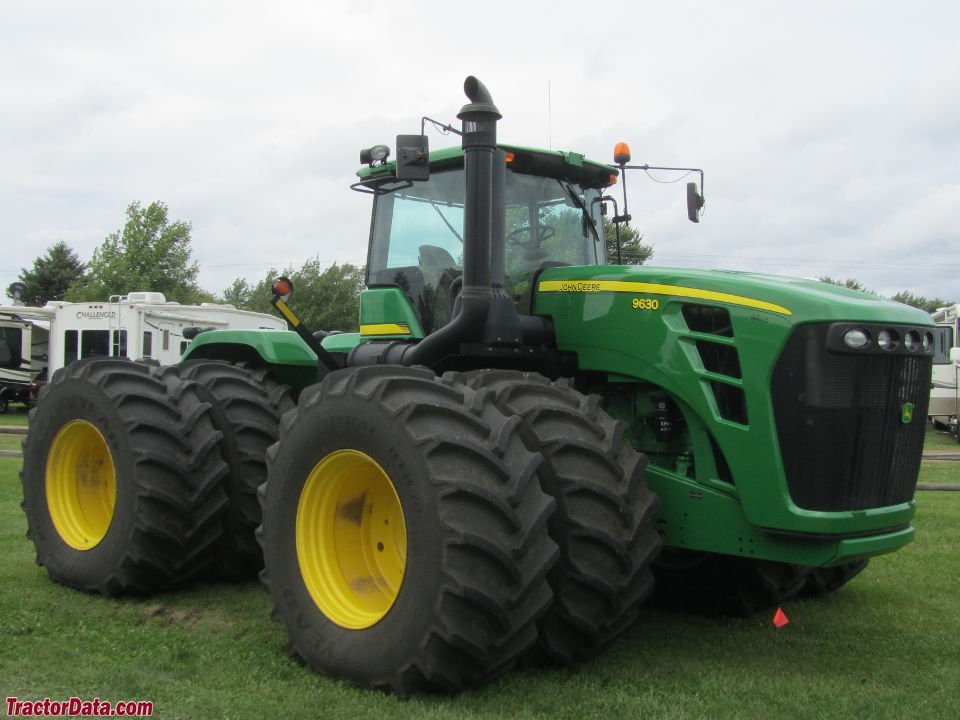

John Deere 9630 T

Built: 2007–2011 · Series: 9030er-Baureihe

More machines from model year 2007

Source: https://www.tractordata.com/farm-tractors/005/2/3/5239-john-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 9030er series from John Deere includes the 9630 T. Production: 2007–2011. The engine delivers 525 hp (386.4 kW), has 6 cylinders, with a displacement of 13,548 cm³. Rated speed is 2,100 rpm. The machine is 6,010 mm long, 3,450 mm wide and 3,400 mm high. The unladen weight is 19,992 kg. The wheelbase measures 2,940 mm. Ground clearance is 400 mm. Top speed is 40 km/h. The tank holds 1,249.1 litres. Transmission: 18V/6R. The engine is water-cooled. Tyres: front 762 x 2.819, rear 762 x 2.819. The fuel is diesel. The bore measures 132 mm. The stroke is 165 mm. Construction: frame construction. The gearbox offers 18 forward gears. There are also 6 reverse gears. The linkage is category I. The 9030er-Baureihe series covers 3 models. Rated output within it ranges from 430 to 525 hp; the 9630 T sits at the top of that range with 525 hp. Its immediate neighbours are the 9530 T below it with 478 hp. Unladen weight within it ranges from 19,874 to 20,051 kg; here the 9630 T sits in the upper part of that range with 19,992 kg. 2622 John Deere models across 140 series are on record.

John Deere 9030 series – articulated track tractors, 2007 to 2011, six-cylinder engines of 13,548 cc, 9430 T to 9630 T, up to 386 kW

The John Deere 9030 series was built from 2007 to 2011 as the maker's largest articulated tractor class. The register lists the types 9430 T, 9530 T and 9630 T here; the T suffix denotes the version with rubber-belt tracks instead of wheels, combined in these models with the 9030 series' articulation joint to give high drawbar pull at low ground pressure. All three models are built around the same six-cylinder diesel engine of 13,548 cc.

Read on 3 more paragraphs

The register lists 3 versions here with 316.5 to 386.4 kW, or 430 to 525 hp, from the common six-cylinder of 13,548 cc at a constant 2,100 rpm, kerb weights of 19,874 to 20,051 kg, a length of 6,010 mm, a width of 3,450 mm and a height of 3,400 mm.

With its combination of articulated steering and tracks, the 9030T series positioned itself in the segment of the most powerful agricultural tractors against comparable track tractors such as the Case IH Quadtrac and Challenger, and was used chiefly in large-scale arable farming for tillage and seeding work with high drawbar-pull demands.

When buying a used 9030T model, the key points are the condition and tension of the rubber tracks and wear on rollers and drive wheels of the track units, operating hours and service history of the six-cylinder engine, and the condition of the articulation-joint hydraulics; spare parts for the engine and undercarriage are available through John Deere parts channels.

Sources: SpecCodex register, model data: John Deere 9030er-Baureihe, John Deere (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	525 hp (386.4 kW)correct
Rated speed	2,100 rpmcorrect
Cylinders	6correct
Displacement	13,548 cm³correct
Bore	132 mmcorrect
Stroke	165 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	6,010 mmcorrect
Width	3,450 mmcorrect
Height	3,400 mmcorrect
Wheelbase	2,940 mmcorrect
Ground clearance	400 mmcorrect
Unladen weight	19,992 kgcorrect

Drivetrain and chassis

Drive	track drivecorrect
Gearbox	18V/6Rcorrect
Forward gears	18correct
Reverse gears	6correct
Front tyres	762 x 2.819correct
Rear tyres	762 x 2.819correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	1,249.1 lcorrect

Origin and approval

Construction	frame constructioncorrect

Other data

Linkage category	Cat Icorrect

Where this model stands

Power-to-weight ratio: 19.3 kW/t (386 kW / 20 t)

Power class: Heavy (> 180 hp)

Stronger than 100% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 9630 T have?

The John Deere 9630 T delivers 525 hp.

How much does the John Deere 9630 T weigh?

The unladen weight is 19,992 kg.

What engine does the John Deere 9630 T have?

6 cylinders, 13,548 cm³ displacement, Diesel.

How fast does the John Deere 9630 T go?

Top speed is 40 km/h.

What are the dimensions of the John Deere 9630 T?

6,010 mm × 3,450 mm × 3,400 mm.

When was the John Deere 9630 T built?

Production years: 2007–2011.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
