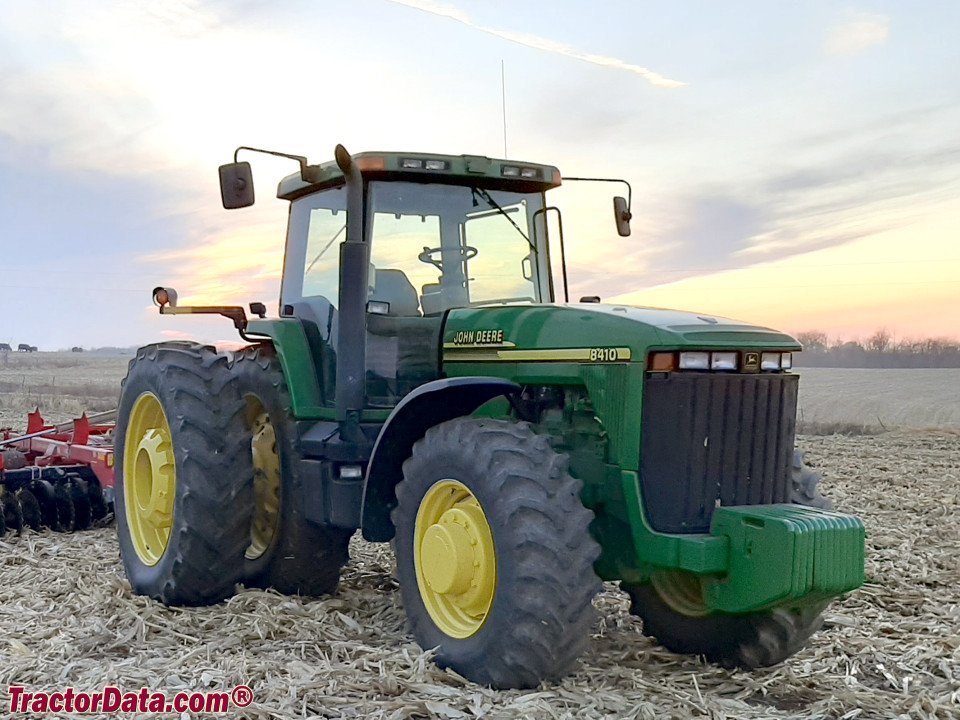

John Deere 8410 MFWD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere 8410 is a tractor from the group of agricultural tractors, offered in the all-wheel drive (MFWD) variant. This model represents the upper performance class within the series and is designed for applications requiring high traction and stability. The design is based on a six-cylinder turbocharged engine that delivers 270 hp (198.7 kW) at a rated speed of 2,200 rpm. With a displacement of 8,100.1 cm³, the drive is designed for continuous load work.

In practical use, the 270 hp output enables the movement of heavy mounted implements or large trailers. The empty weight of 8,486.3 kg, combined with a wheelbase of 2,950.5 mm, ensures good traction in the field. The lifting capacity of 5,307 kg on the Category III/III rear hitch allows for lifting heavy equipment such as plows or cultivators. The fuel tank capacity of 512.2 l permits long working intervals without frequent refueling. The PTO power of 235 hp at speeds of 540/1,000 rpm ensures that even demanding mounted machines are supplied with sufficient energy.

The power shift transmission offers 16 forward gears and optionally 4 or 5 reverse gears, allowing for precise adjustment of speed to various soil conditions and working speeds. The maximum speed of 38.1 km/h is designed for road traffic and transport between fields. The pump flow rate of 106 l/min ensures a rapid response of the hydraulic systems. This configuration is typically suitable for large arable land areas where high working widths and heavy soil cultivation equipment are used.

John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW

This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.

Read on 3 more paragraphs

The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.

John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.

On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.

Sources: SpecCodex register, model data: John Deere (weitere Modelle), John Deere (manufacturer)

Versions of this model in the register

Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.

VersionBuiltkWEU type approvalOrigin
8410 1999–2002198.7—Official register
● 8410 —198.7—Reference work (Wikipedia/Wikibooks)

Technical data

Engine

Power270 hp (198.7 kW)correct
Rated speed2,200 rpmcorrect
Cylinders6correct
Displacement8,100.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity34.1 lcorrect
Engine oil capacity28 lcorrect

Dimensions and weights

Length5,487 mmcorrect
Width3,012 mmcorrect
Height3,075 mmcorrect
Wheelbase2,950.5 mmcorrect
Unladen weight8,486.3 kgcorrect

Drivetrain and chassis

Gearbox16V/4R or 16V/5Rcorrect
Gearbox typepowershift transmissioncorrect
Forward gears16correct
Reverse gears5correct
Forward gears16correct
Reverse gears4correct
Top speed38.1 km/hcorrect

Working data

Lifting capacity5,307 kgcorrect
Pump flow106 l/mincorrect
Hydraulic oil capacity140.1 lcorrect
Fuel tank capacity512.2 lcorrect

Other data

Linkage categoryCat III/IIIcorrect
PTO output235 hpcorrect
PTO speed540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 23.4 kW/t (199 kW / 8.5 t)

Power class: Heavy (> 180 hp)

Stronger than 96% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 8410 have?

The John Deere 8410 delivers 270 hp.

How much does the John Deere 8410 weigh?

The unladen weight is 8,486 kg.

What engine does the John Deere 8410 have?

6 cylinders, 8,100 cm³ displacement.

How fast does the John Deere 8410 go?

Top speed is 38.1 km/h.

What is the PTO output of the John Deere 8410?

PTO output is 235 hp. PTO speeds: 540/1000 rpm.

How much does the rear linkage of the John Deere 8410 lift?

The rear linkage lifts 5,307 kg.

What are the dimensions of the John Deere 8410?

5,487 mm × 3,012 mm × 3,075 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
