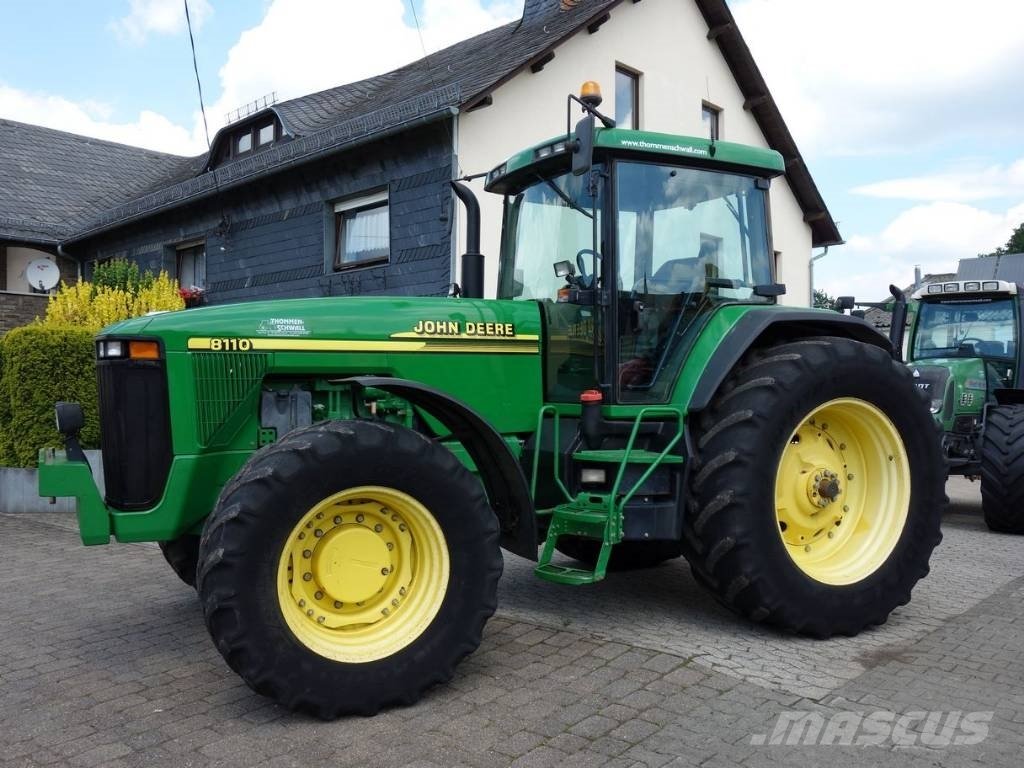

John Deere 8110
Built: 1999–2002 · Series: 8010er-Baureihe
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 8010 series (1999–2002) – the big tractors from Waterloo on wheels and tracks: 8110 to 8410, the number as power step, T for the tracked version, PowerTech six-cylinder of 8.1 litres, 144 to 199 kW
The 8010 series was the second generation of the big tractors with which John Deere had redefined the class between 160 and 300 hp in 1994: the 8000s of 1994 brought the six-cylinder up front, the cab moved far forward and the 16-speed powershift; the 8010s of 1999 carried that layout on with the new PowerTech engine and revised electronics, built in Waterloo, Iowa. The type logic: 8 marks the series, the middle digit the power step – 8110 about 165 hp, 8210 190 hp, 8310 220 hp, 8410 250 hp – 10 the generation, T the tracked version with rubber-belt undercarriage (8110T to 8410T), with which Deere had challenged Caterpillar's Challenger since 1997. The engine in all models is the PowerTech six-cylinder of 8.1 litres at 2,200 rpm; the register span up to 199 kW shows the maximum power of the top models.
Read on 3 more paragraphs
The register lists 8 versions with 143.5 to 198.7 kW from the six-cylinder of 8,134 cm³, torque from 794 to 988 Nm, unladen weights from 8,775 to 11,965 kg, a length of 5,487 mm, widths from 3,012 to 3,404 mm and heights from 3,075 to 3,135 mm.
The 8010s are the tractors of the big arable farms of the Midwest, Eastern Europe and Australia; their tracked versions founded the tracked-tractor line Deere still runs today as 8RT and 9RT. In 2002 the 8020 series followed.
On used tractors, operating hours, engine condition and injection, powershift (clutch packs, oil history), on T models the rubber belts, rollers and drive wheels, hydraulics and electronics and the service history at the Deere dealer count.
Sources: SpecCodex register, model data: John Deere 8010er-Baureihe, John Deere (Hersteller, Werk Waterloo)
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 195 hp (143.5 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,134 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,487 mmcorrect |
|---|---|
| Width | 3,012 mmcorrect |
| Height | 3,090 mmcorrect |
| Wheelbase | 2,950 mmcorrect |
| Ground clearance | 420 mmcorrect |
| Unladen weight | 8,775 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/4R or 16V/5Rcorrect |
| Front tyres | 14.9 R 34 AScorrect |
| Rear tyres | 18.4 R 46 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Plant | USAcorrect |
|---|---|
| Construction | bridge-frame constructioncorrect |
Where this model stands
Power-to-weight ratio: 16.4 kW/t (144 kW / 8.8 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 8110 have?
The John Deere 8110 delivers 195 hp.
How much does the John Deere 8110 weigh?
The unladen weight is 8,775 kg.
What engine does the John Deere 8110 have?
6 cylinders, 8,134 cm³ displacement, Diesel.
How fast does the John Deere 8110 go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 8110?
5,487 mm × 3,012 mm × 3,090 mm.
When was the John Deere 8110 built?
Production years: 1999–2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
