Start › Wheel loaders › John Deere › 755D

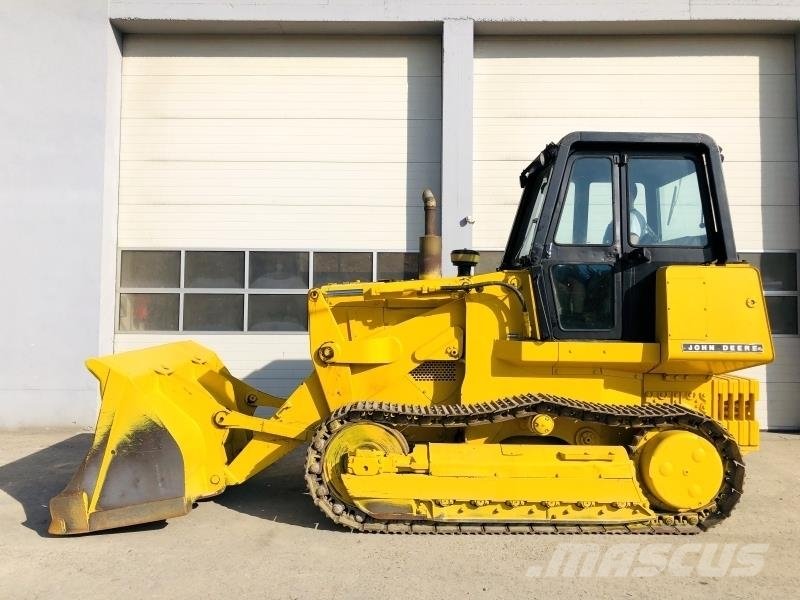

John Deere 755D

Series: John Deere Crawler Loader

Source: https://in.pinterest.com/pin/pdf-john-deere-755d-crawler-loa

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 755D from John Deere is part of the John Deere Crawler Loader series. The engine delivers 135 kW, has 6 cylinders, with a displacement of 6,800.6 cm³. Torque is 932.8 Nm. Rated speed is 1,800 rpm. The unladen weight is 20,980.9 kg. Ground clearance is 457.2 mm. Top speed is 10 km/h. The tank holds 360 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 208.2 l/min. The hydraulic tank holds 191.9 litres. Working pressure is 259.9 bar. The cooling system holds 20.4 litres. The oil fill is 27.6 litres. The electrical system runs on 24 V. The engine fitted is the 6068H. The John Deere Crawler Loader series covers 19 models. Rated output within it ranges from 31.3 to 149.1 kW; the 755D sits at the top of that range with 135 kW. Its immediate neighbours are the 755C Series II below it with 132 kW and the 855 above it with 149.1 kW. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model6068Hcorrect
Power135 kWcorrect
Rated speed1,800 rpmcorrect
Torque932.8correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,800.6 cm³correct
AspirationTurbocharged w/ aftercoolercorrect
Coolant capacity20.4 lcorrect
Engine oil capacity27.6 lcorrect

Dimensions and weights

Ground clearance457.2correct
Unladen weight20,980.9 kgcorrect

Drivetrain and chassis

Top speed10 km/hcorrect
System voltage24 Vcorrect

Working data

Pump flow208.2 l/mincorrect
Hydraulic oil capacity191.9 lcorrect
Hydraulic pressure259.9correct
Fuel tank capacity360 lcorrect

Other data

Height3,301correct

Where this model stands

Power-to-weight ratio: 6.4 kW/t (135 kW / 21 t)

Stronger than 68% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 755D have?

The John Deere 755D delivers 135 kW.

How much does the John Deere 755D weigh?

The unladen weight is 20,981 kg.

What engine does the John Deere 755D have?

6 cylinders, 6,801 cm³ displacement.

How fast does the John Deere 755D go?

Top speed is 10 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
