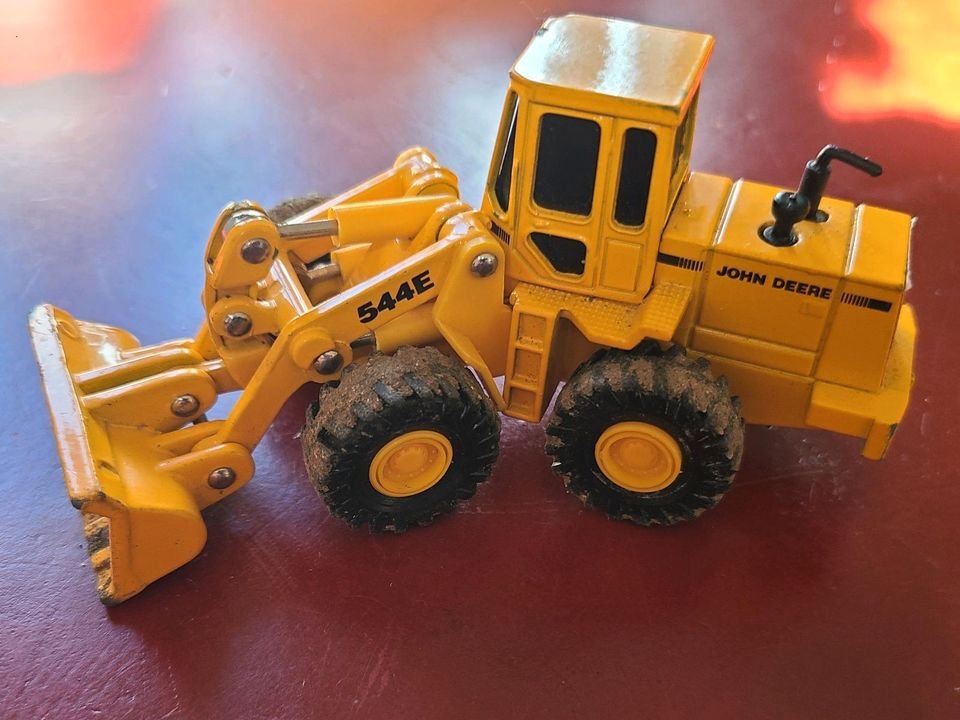

John Deere 544E

Series: John Deere Wheel Loader

Source: https://www.kleinanzeigen.de/s-anzeige/john-deere-544e-radla

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 544E from John Deere is part of the John Deere Wheel Loader series. The engine delivers 121.7 hp (85.8 kW), has 6 cylinders, with a displacement of 5,883 cm³. Torque is 465 Nm. Rated speed is 2,200 rpm. The unladen weight is 10,712.9 kg. The wheelbase measures 2,898.6 mm. Ground clearance is 390.1 mm. The tank holds 208.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 175.3 l/min. The hydraulic tank holds 76.1 litres. The cooling system holds 24.2 litres. The electrical system runs on 12 V. The engine fitted is the 6059T. Tyre size: 17,5-25. The John Deere Wheel Loader series covers 120 models. Rated output within it ranges from 55.8 to 286.9 hp; the 544E sits in the lower part of that range with 121.7 hp. Its immediate neighbours are the 544B below it with 116.6 hp and the 544D above it with 123.7 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model6059Tcorrect
Power121.7 hp (85.8 kW)correct
Rated speed2,200 rpmcorrect
Torque465correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement5,883 cm³correct
Aspirationturbochargedcorrect
Coolant capacity24.2 lcorrect

Dimensions and weights

Wheelbase2,898.6correct
Ground clearance390.1correct
Unladen weight10,712.9 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size17.5-25correct
System voltage12 Vcorrect

Working data

Pump flow175.3 l/mincorrect
Hydraulic oil capacity76.1 lcorrect
Fuel tank capacity208.2 lcorrect

Other data

Height3,142.5correct

Where this model stands

Power-to-weight ratio: 8 kW/t (86 kW / 10.7 t)

Stronger than 43% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 544E have?

The John Deere 544E delivers 122 hp.

How much does the John Deere 544E weigh?

The unladen weight is 10,713 kg.

What engine does the John Deere 544E have?

6 cylinders, 5,883 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
