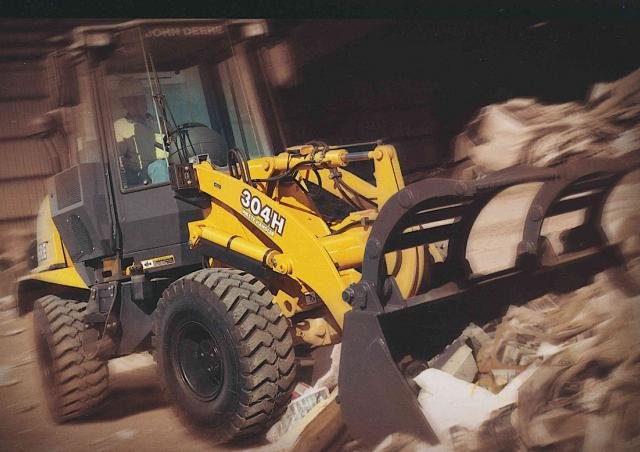

John Deere 304H Waste Handler

The John Deere Wheel Loader series from John Deere includes the 304H Waste Handler. The engine delivers 70 hp (48.5 kW), has 4 cylinders, with a displacement of 3,310.2 cm³. Torque is 234.6 Nm. Rated speed is 2,400 rpm. The unladen weight is 6,295.9 kg. The wheelbase measures 2,151.9 mm. Ground clearance is 301.8 mm. The tank holds 70 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 83.3 l/min. The hydraulic tank holds 45 litres. The cooling system holds 12.5 litres. The electrical system runs on 12 V. The engine fitted is the 4TNE98. Tyre size: 40x 14-16. The John Deere Wheel Loader series covers 120 models. Rated output within it ranges from 55.8 to 286.9 hp; the 304H Waste Handler sits at the bottom of that range with 70 hp. Its immediate neighbours are the 244J below it with 64.9 hp and the 210LE above it with 79.1 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.
