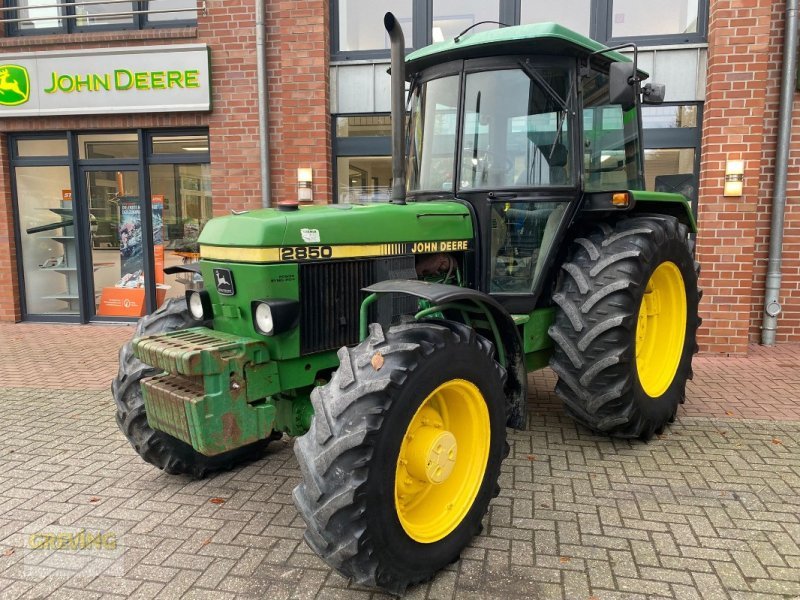

John Deere 2850 (A)
Built: 1986–1994 · Series: 50er-Baureihe
More machines from model year 1986
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 50 series (1986–1992) – Mannheim's last generation before the 6000: 1550 to 3650, the number as size class, (A) for four-wheel drive, three- to six-cylinders, the tractors of the SG2 cab, 32 to 85 kW
The 50 series was the last Mannheim tractor generation with the classic number logic before John Deere introduced the full-frame design and the cab of the 1990s with the 6000 series in 1992. Built from 1986 to 1992, it replaced the 40s and orders size by the first digits in ascending order: 1550 and 1750 the three-cylinders, 1950 to 2550 the four-cylinder mid-range, 2850 to 3650 the six-cylinders; the 50 names the generation, (A) four-wheel drive, which in this range became standard on the larger models. The engines were Deere's own in-line engines from the Saran plant in France, with 2.9 to 5.9 litres.
Read on 3 more paragraphs
The register lists 10 versions with 32.4 to 85.4 kW, 2,940 to 5,883 cm³ with three to six cylinders, rated speeds of 2,300 to 2,400 rpm, unladen weights from 2,480 to 4,985 kg, lengths from 3,380 to 4,787 mm, widths from 1,845 to 2,267 mm and heights from 2,433 to 2,994 mm – all diesel.
The 50s brought the SG2 cab with deep-drawn glazing and the Hi-Lo powershift step; they are regarded as the most reliable Mannheim tractors of the 1980s and still run on many farms today as second tractors.
On used tractors, operating hours, engine condition, gearbox and Hi-Lo step, hydraulics and front axle on four-wheel-drive models and the cab mounts count; parts are readily available through John Deere and remanufacturers.
Sources: SpecCodex register, model data: John Deere 50er-Baureihe, John Deere Deutschland (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 86 hp (63.3 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,920 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,980 mmcorrect |
|---|---|
| Width | 2,055 mmcorrect |
| Height | 2,809 mmcorrect |
| Wheelbase | 2,266 mmcorrect |
| Ground clearance | 629 mmcorrect |
| Unladen weight | 3,220 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8V/4R or 12V/8R and 16V/8Rcorrect |
| Front tyres | 10.00-16 ASF (A: 12.4 R 28 AS)correct |
| Rear tyres | 18.4-34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.7 kW/t (63 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 59% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 2850 (A) have?
The John Deere 2850 (A) delivers 86 hp.
How much does the John Deere 2850 (A) weigh?
The unladen weight is 3,220 kg.
What engine does the John Deere 2850 (A) have?
4 cylinders, 3,920 cm³ displacement, Diesel.
How fast does the John Deere 2850 (A) go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 2850 (A)?
3,980 mm × 2,055 mm × 2,809 mm.
When was the John Deere 2850 (A) built?
Production years: 1986–1994.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
