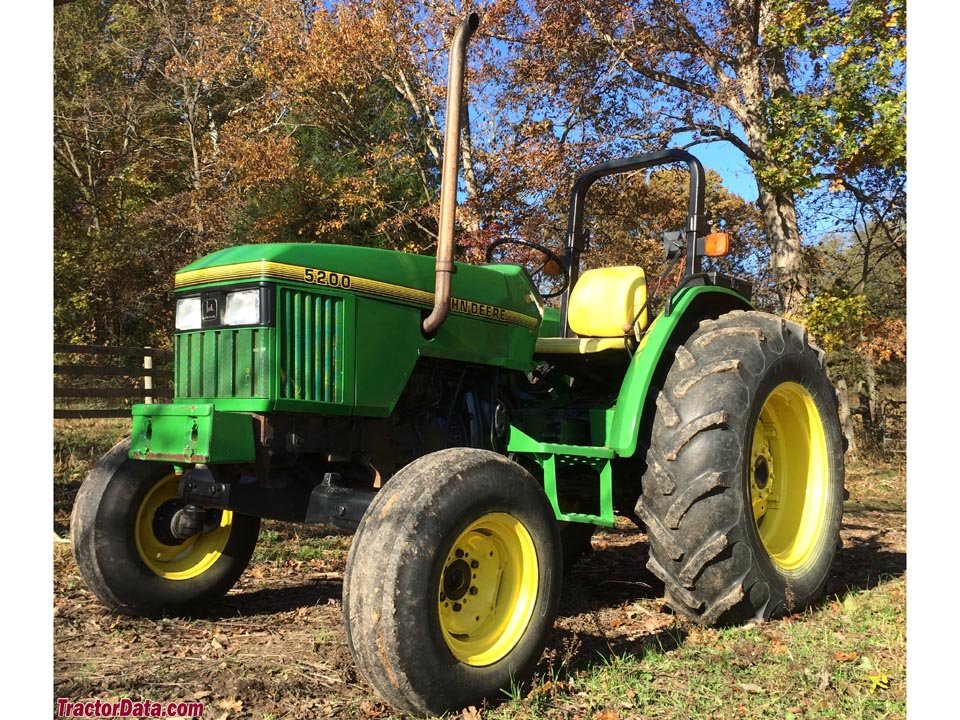

John Deere 5200 (A)
Built: 1992–1997 · Series: 5000er-Baureihe
More machines from model year 1992
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 5000er-Baureihe – utility tractors from the Augusta plant: types 5200 to 5500, three- and four-cylinder diesels of 2,943 to 3,912 cm³, 29.4 to 53.7 kW
John Deere builds utility tractors of the 5000 series at its plant in Augusta, in the US state of Georgia, a series that includes the types 5200, 5300, 5400 and 5500 recorded in the register; the letter A in the model designation refers to the Augusta production site. The type numbers follow John Deere's internal power-class division within the series.
Read on 3 more paragraphs
The register lists 4 versions with 29.4 to 53.7 kW from three- and four-cylinder diesel engines of 2,943 to 3,912 cm³ displacement, torque from 156 to 180 Nm and a rated speed of 2,400 rpm throughout; unladen weight ranges from 1,927 to 2,573 kg, lengths from 3,541 to 3,790 mm, widths from 1,846 to 2,002 mm, heights from 2,289 to 2,482 mm.
The 5000 series covers, for John Deere, the segment of versatile utility tractors between the compact class and large field tractors, and is aimed at mixed operations with feeding, transport and lighter field work, competing with comparable utility ranges from Case IH, New Holland and Massey Ferguson.
On a used 5000-series tractor, the condition of the hydraulics and lift linkage, the tightness of the gearbox and axles, the diesel engine's mileage, and rust on the mudguards and bonnet all count; parts are well available through John Deere's dense dealer network.
Sources: SpecCodex register, model data: John Deere 5000er-Baureihe, John Deere (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40 hp (29.4 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 156 Nmcorrect |
| Speed at max. torque | 1,320 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,943 cm³correct |
| Bore | 106.4 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 17.8correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,541 mmcorrect |
|---|---|
| Width | 1,846 mmcorrect |
| Height | 2,289 mmcorrect |
| Wheelbase | 2,050 mmcorrect |
| Ground clearance | 490 mmcorrect |
| Unladen weight | 1,927 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 9V/3R or 12V/4Rcorrect |
| Front tyres | 6.50-16 ASF (A: 8.3-24 AS)correct |
| Rear tyres | 13.6-28 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.3 kW/t (29 kW / 1.9 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 5200 (A) have?
The John Deere 5200 (A) delivers 40 hp.
How much does the John Deere 5200 (A) weigh?
The unladen weight is 1,927 kg.
What engine does the John Deere 5200 (A) have?
3 cylinders, 2,943 cm³ displacement, Diesel.
How fast does the John Deere 5200 (A) go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 5200 (A)?
3,541 mm × 1,846 mm × 2,289 mm.
When was the John Deere 5200 (A) built?
Production years: 1992–1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
