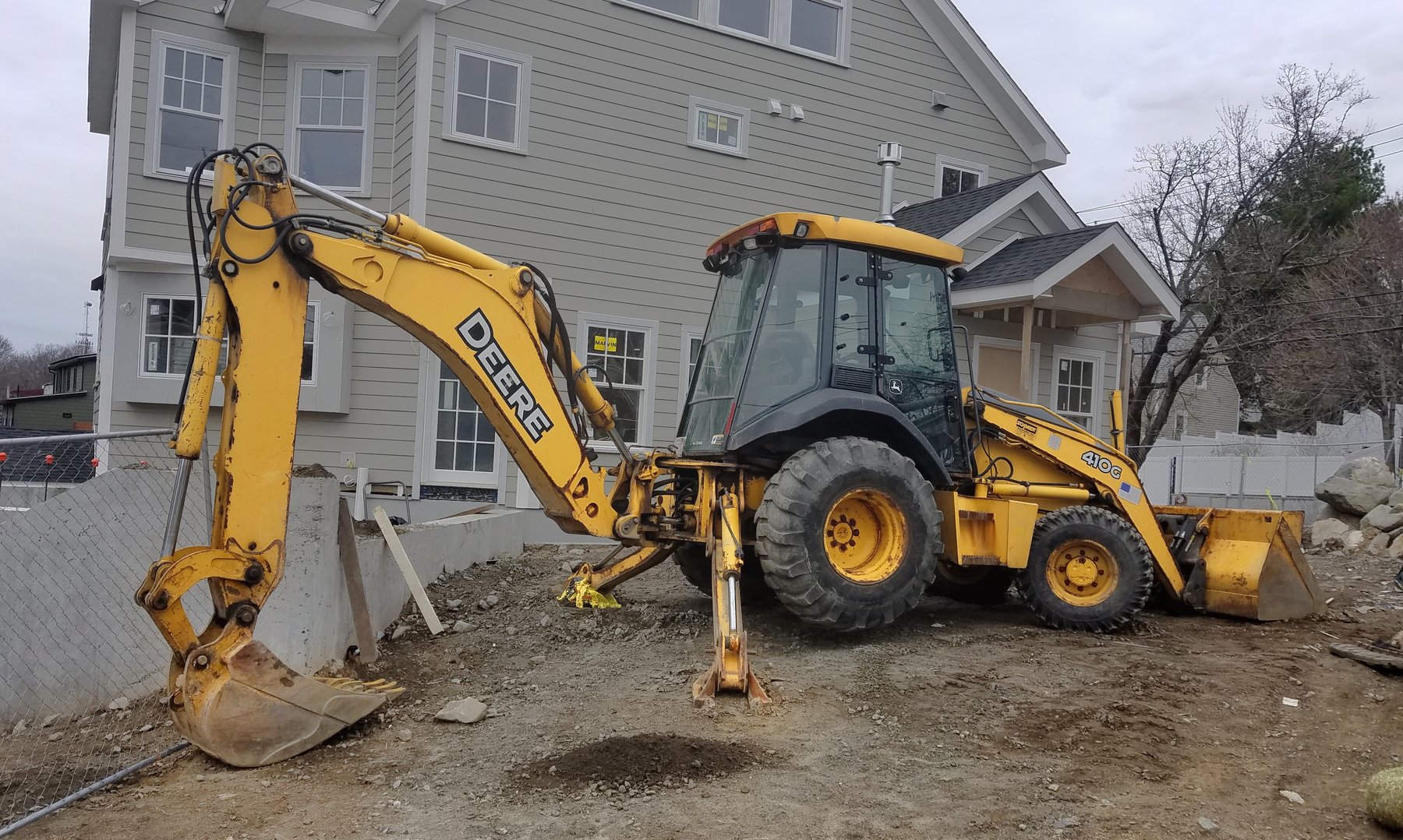

John Deere 410G

Series: John Deere Loader Backhoe

Source: https://commons.wikimedia.org/w/index.php?curid=116886032 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere 410G is a model in the John Deere Loader Backhoe series. The engine delivers 71.6 kW. Rated speed is 2,100 rpm. The wheelbase measures 2,100.1 mm. Ground clearance is 356.6 mm. The tank holds 136.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 162.8 l/min. The hydraulic tank holds 98.4 litres. Working pressure is 249.9 bar. The cooling system holds 16.3 litres. The electrical system runs on 12 V. The engine fitted is the 4045T. The John Deere Loader Backhoe series covers 57 models. Rated output within it ranges from 30.6 to 97 kW; the 410G sits in the upper part of that range with 71.6 kW. Its immediate neighbours are the 610C below it with 70.8 kW and the 310SK above it with 72 kW. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine model4045Tcorrect
Power71.6 kWcorrect
Rated speed2,100 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Aspirationturbochargedcorrect
Coolant capacity16.3 lcorrect

Dimensions and weights

Wheelbase2,100.1correct
Ground clearance356.6correct

Drivetrain and chassis

Gearbox type4-speed, helical cut gear, full power shifted transmission with hydraulic reverscorrect
Forward gears4correct
Reverse gears3correct
System voltage12 Vcorrect

Working data

Pump flow162.8 l/mincorrect
Hydraulic oil capacity98.4 lcorrect
Hydraulic pressure249.9correct
Fuel tank capacity136.3 lcorrect

Frequently asked questions

How much power does the John Deere 410G have?

The John Deere 410G delivers 71.6 kW.
