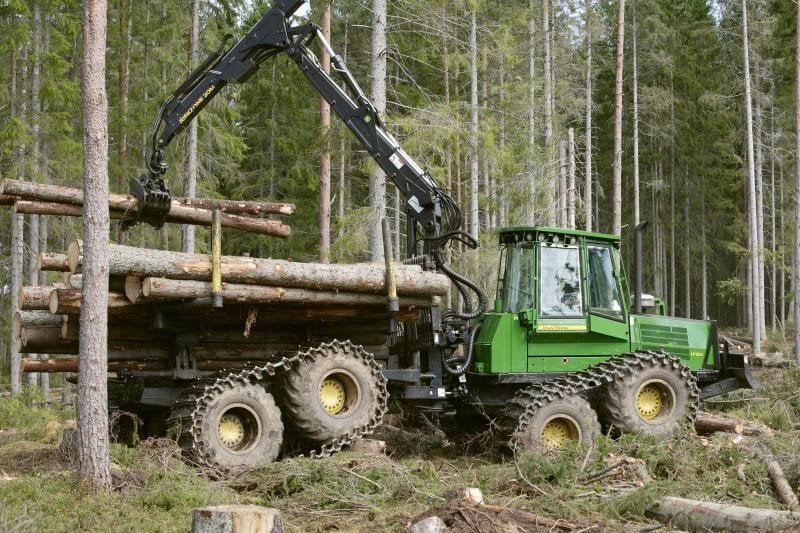

John Deere 1710D
Series: John Deere Forwarder
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine model | 6081Hcorrect |
|---|---|
| Rated speed | 2,000 rpmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,095.2 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 5,900.9correct |
|---|---|
| Ground clearance | 731.5correct |
Drivetrain and chassis
| Gearbox type | hydrostatic transmission/mechanical gearboxcorrect |
|---|---|
| Forward gears | 2correct |
| Reverse gears | 2correct |
| Top speed | 23 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Hydraulic oil capacity | 189.3 lcorrect |
|---|---|
| Hydraulic pressure | 239.9correct |
| Fuel tank capacity | 181.7 lcorrect |
Frequently asked questions
What engine does the John Deere 1710D have?
6 cylinders, 8,095 cm³ displacement.
How fast does the John Deere 1710D go?
Top speed is 23 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
