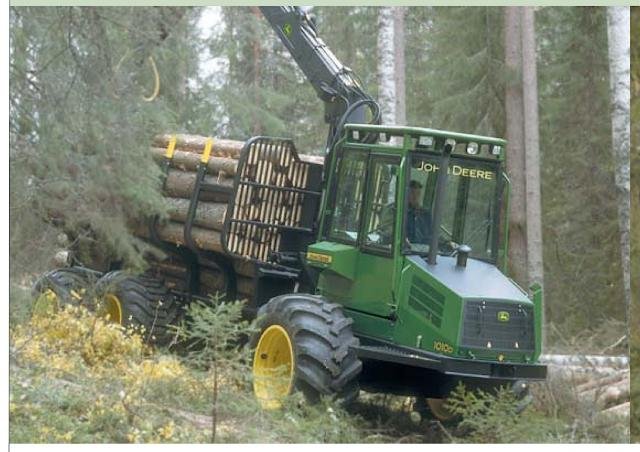

John Deere 1010D Four-Wheel Long Frame
Series: John Deere Forwarder
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere forwarders 810D to 1710D – the forwarders from Joensuu in Finland: the Timberjack heritage, the number as load-capacity class, D as generation, four- and six-wheel versions, Deere four- and six-cylinders of 4.5 to 8.1 litres
John Deere's forwarders come from Joensuu in eastern Finland – the plant of Timberjack, the Finnish-Canadian forestry-machine maker Deere took over in 2000 and continued under its own name from 2005; the D range in the register is the first generation that ran in Deere green. The forwarder is the machine of the cut-to-length method: it picks up the logs cut to length by the harvester with its crane, carries them out of the stand on its bunk and lays them down at the forest road. The type logic: the number orders the load-capacity class in ascending order – 810 about 9 t for thinning, 1010 about 11 t, 1110 12 t, 1410 14 t, 1710 about 17 t for final felling – D the generation of the 2000s, Four-Wheel and Six-Wheel the versions with four or six wheels, Short Frame and Long Frame the frame lengths for short or long timber. The engines are Deere's own: the four-cylinder 4045 of 4.5 litres in the small, the six-cylinders 6068 and 6081 of 6.8 and 8.1 litres in the big models, at 2,000 rpm.
Read on 3 more paragraphs
The register lists 7 versions with engines of 4,502 to 8,095 cm³ and four to six cylinders.
With Ponsse and Komatsu Forest, Deere is one of the big three of Scandinavian cut-to-length technology; the forwarders from Joensuu work in Finland, Sweden, Germany and North America, and the E and G generations continue the D range to this day.
On used machines, operating hours, the condition of crane, rotator and grapple, bogie axles and tyres or tracks, frame joint and steering cylinders, hydraulic pumps, engine and radiator count; parts run through Deere forestry dealers.
Sources: Kennwerte der Modelle John Deere Forwarder, John Deere Forestry (Hersteller, Joensuu)
Technical data
Engine
| Engine model | 4045Hcorrect |
|---|---|
| Rated speed | 2,000 rpmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 4,800.6correct |
|---|---|
| Ground clearance | 606.6correct |
Drivetrain and chassis
| Gearbox type | hydrostatic transmission/mechanical gearboxcorrect |
|---|---|
| Forward gears | 2correct |
| Reverse gears | 2correct |
| Top speed | 22 km/hcorrect |
Working data
| Hydraulic oil capacity | 190 lcorrect |
|---|---|
| Hydraulic pressure | 239.9correct |
| Fuel tank capacity | 113.2 lcorrect |
Other data
| System voltage | 24 Vcorrect |
|---|
More machines with this engine (4045H, 10)
Frequently asked questions
What engine does the John Deere 1010D Four-Wheel Long Frame have?
4 cylinders, 4,502 cm³ displacement.
How fast does the John Deere 1010D Four-Wheel Long Frame go?
Top speed is 22 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
