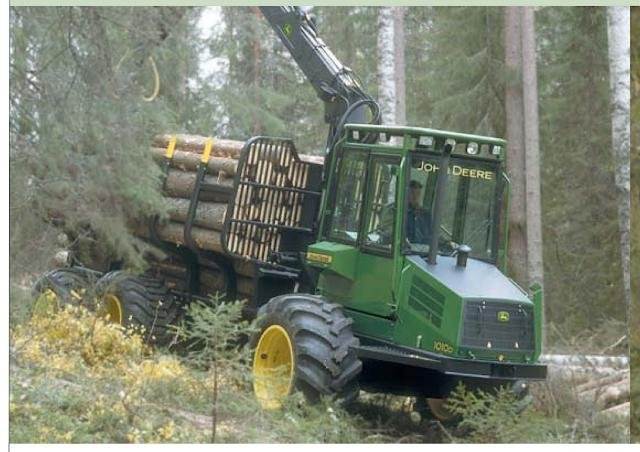

John Deere 1010D Four-Wheel Short Frame

Series: John Deere Forwarder

Source: https://www.lectura-specs.com/en/model/municipal-technology/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere Forwarder series from John Deere includes the 1010D Four-Wheel Short Frame. The engine has 4 cylinders, with a displacement of 4,522.8 cm³. Rated speed is 2,000 rpm. The wheelbase measures 3,721.6 mm. Ground clearance is 606.6 mm. Top speed is 22 km/h. The tank holds 113.2 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,400 rpm. The hydraulic tank holds 190 litres. Working pressure is 240 bar. The electrical system runs on 24 V. The engine fitted is the 4045H. 2153 John Deere models across 96 series are on record. The model is listed under Forestry equipment. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine model4045Hcorrect
Rated speed2,000 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,522.8 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Wheelbase3,721.6correct
Ground clearance606.6correct

Drivetrain and chassis

Gearbox typehydrostatic transmission/mechanical gearboxcorrect
Forward gears2correct
Reverse gears2correct
Top speed22 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity190 lcorrect
Hydraulic pressure240correct
Fuel tank capacity113.2 lcorrect

Frequently asked questions

What engine does the John Deere 1010D Four-Wheel Short Frame have?

4 cylinders, 4,523 cm³ displacement.

How fast does the John Deere 1010D Four-Wheel Short Frame go?

Top speed is 22 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
